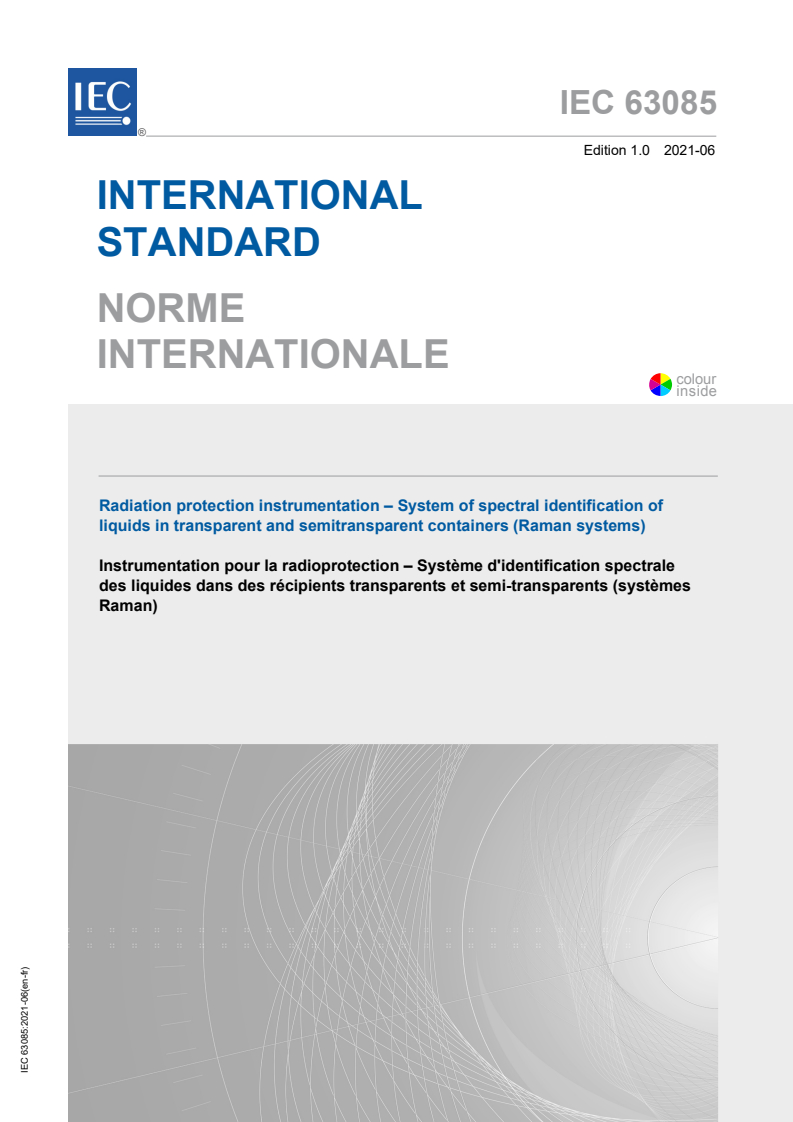

IEC 63085:2021

IEC 63085 ®
Edition 1.0 2021-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radiation protection instrumentation – System of spectral identification of
liquids in transparent and semitransparent containers (Raman systems)

Instrumentation pour la radioprotection – Système d'identification spectrale
des liquides dans des récipients transparents et semi-transparents (systèmes
Raman)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

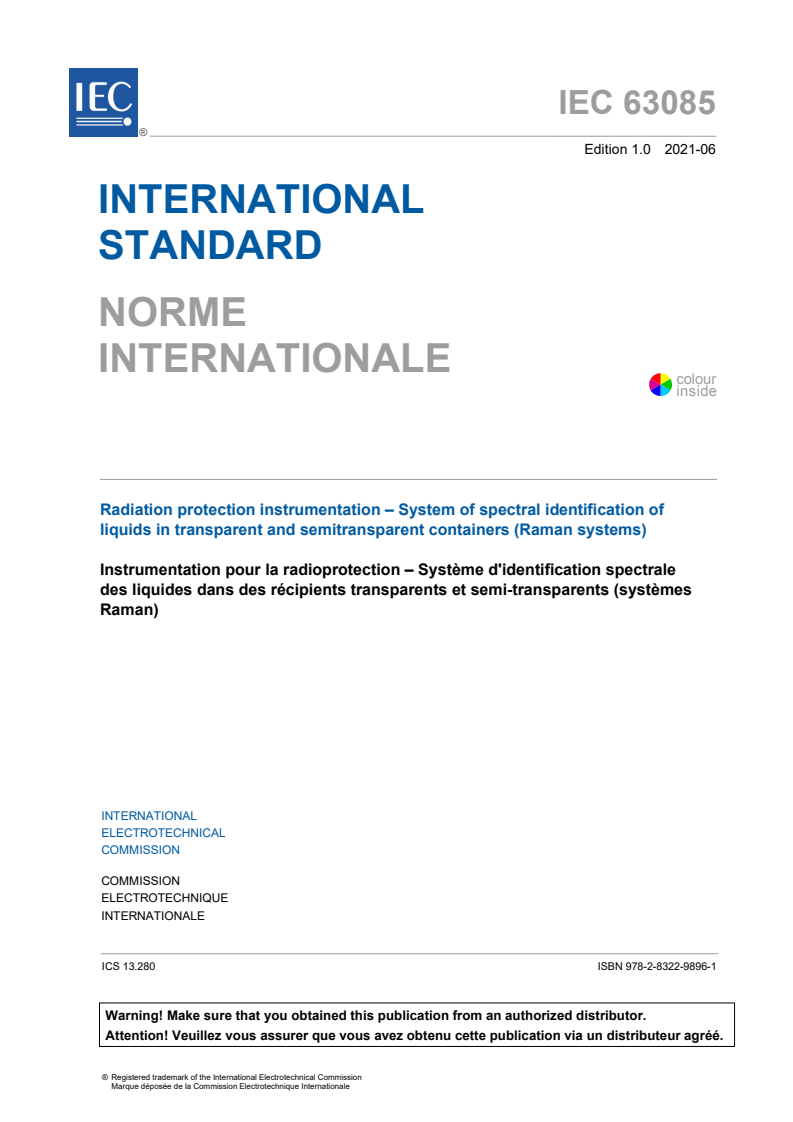

IEC 63085 ®
Edition 1.0 2021-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Radiation protection instrumentation – System of spectral identification of

liquids in transparent and semitransparent containers (Raman systems)

Instrumentation pour la radioprotection – Système d'identification spectrale

des liquides dans des récipients transparents et semi-transparents (systèmes

Raman)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.280 ISBN 978-2-8322-9896-1

– 2 – IEC 63085:2021 © IEC 2021

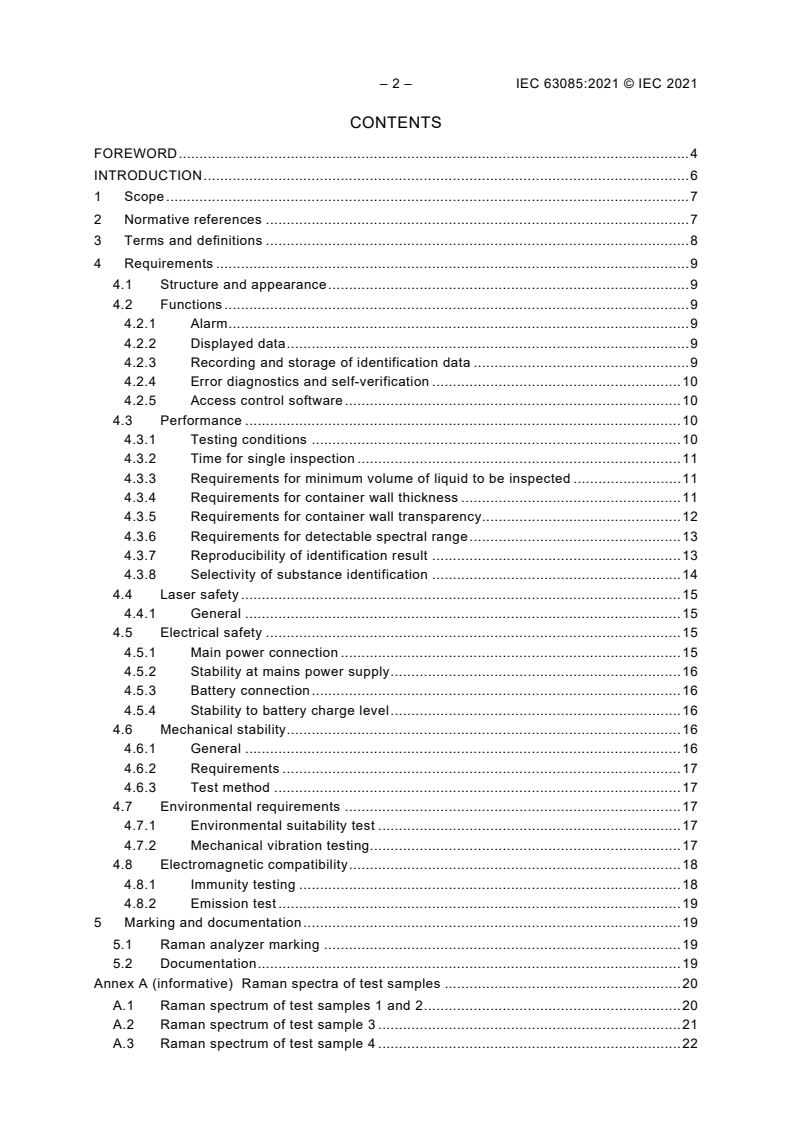

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Requirements . 9
4.1 Structure and appearance . 9
4.2 Functions . 9
4.2.1 Alarm . 9
4.2.2 Displayed data . 9
4.2.3 Recording and storage of identification data . 9
4.2.4 Error diagnostics and self-verification . 10
4.2.5 Access control software . 10
4.3 Performance . 10
4.3.1 Testing conditions . 10
4.3.2 Time for single inspection . 11
4.3.3 Requirements for minimum volume of liquid to be inspected . 11
4.3.4 Requirements for container wall thickness . 11
4.3.5 Requirements for container wall transparency. 12
4.3.6 Requirements for detectable spectral range . 13
4.3.7 Reproducibility of identification result . 13
4.3.8 Selectivity of substance identification . 14
4.4 Laser safety . 15
4.4.1 General . 15
4.5 Electrical safety . 15
4.5.1 Main power connection . 15
4.5.2 Stability at mains power supply . 16
4.5.3 Battery connection . 16
4.5.4 Stability to battery charge level . 16
4.6 Mechanical stability . 16
4.6.1 General . 16
4.6.2 Requirements . 17
4.6.3 Test method . 17
4.7 Environmental requirements . 17
4.7.1 Environmental suitability test . 17
4.7.2 Mechanical vibration testing. 17
4.8 Electromagnetic compatibility . 18
4.8.1 Immunity testing . 18
4.8.2 Emission test . 19
5 Marking and documentation . 19
5.1 Raman analyzer marking . 19
5.2 Documentation . 19
Annex A (informative) Raman spectra of test samples . 20
A.1 Raman spectrum of test samples 1 and 2 . 20
A.2 Raman spectrum of test sample 3 . 21
A.3 Raman spectrum of test sample 4 . 22

A.4 Raman spectrum of test sample 5 . 23
A.5 Raman spectrum of test sample 6 . 24

Figure 1 – Test on container wall thickness . 12
Figure 2 – Test on container wall transparency . 13
Figure A.1 – Raman spectrum of test samples 1 and 2 (cyclohexane) with four
−1 −1 −1 −1 −1 −1
reference peaks (384 cm ± 2 cm , 801 cm ± 2 cm , 1 444 cm ± 2 cm ,
−1 −1 −1 −1
2 853 cm ± 2 cm ) to verify the spectral range of 300 cm to 3 000 cm . 20
Figure A.2 – Raman spectrum of test sample 3 (water) with the reference band to
−1 −1
verify the spectral range 3 000 cm to 3 600 cm . 21
Figure A.3 – Raman spectrum of test sample 4 (10 % ethanol in water) with three
−1 −1 −1 −1
reference peaks of ethanol in water (879 cm ± 2 cm , 1 455 cm ± 2 cm ,
−1 −1
2 935 cm ± 2 cm ) and the reference band of water in the spectral range
−1 −1
3 000 cm to 3 600 cm . 22
Figure A.4 – Raman spectrum of test sample 5 (50 % methanol + 50 % ethanol) . 23
Figure A.5 – Raman spectrum of test sample 6 (33,3 % methanol + 33,3 % ethanol +
33,3 % isopropanol) . 24

Table 1 – Reference condition and standard test conditions . 10
Table 2 – Key apparatus for tests and technical requirements. 11
Table 3 – Reproducibility test results table . 14
Table 4 – Ambient requirements . 17
Table 5 – Tests and requirements for mechanical stability . 18

– 4 – IEC 63085:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIATION PROTECTION INSTRUMENTATION –
SYSTEM OF SPECTRAL IDENTIFICATION OF LIQUIDS IN TRANSPARENT
AND SEMITRANSPARENT CONTAINERS (RAMAN SYSTEMS)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63085 has been prepared by subcommittee 45B: Radiation
protection instrumentation, of IEC technical committee 45: Nuclear instrumentation.
The text of this International Standard is based on the following documents:
FDIS Report on voting
45B/979/FDIS 45B/984/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

– 6 – IEC 63085:2021 © IEC 2021
INTRODUCTION
This document establishes standard test methods and objects for evaluating the capabilities
of Raman systems used for the spectral identification of liquids and liquids mixtures. The main
focus is made on testing the functionality of the equipment (Raman analyzer); the reliability of
identification result for liquids in containers with different light transmittance properties and
stability of the equipment performance under various environmental conditions. The design of
the optical scheme of the Raman analyzer, geometric and mass characteristics are not
discussed and left to the discretion of the manufacturer. This document does not specify the
circumstances and purposes of the inspection of liquids, the methods of detection of the
container, and also the safety techniques for handling unknown liquids. Hence, the imposed
requirements for the functionality of the Raman analyzer are equally suitable for its use in the
fields of security, analysis of pharmaceutical solutions and other liquid chemicals. Annex A
provides Raman scattering spectra of test samples, referred to in the test methods.

RADIATION PROTECTION INSTRUMENTATION –
SYSTEM OF SPECTRAL IDENTIFICATION OF LIQUIDS IN TRANSPARENT
AND SEMITRANSPARENT CONTAINERS (RAMAN SYSTEMS)

1 Scope
This document provides technical performance requirements, testing methods, requirements
for operational performance and accompanying documents, packaging, transportation and
storage conditions for the system of spectral identification of liquids in transparent and
semitransparent containers (hereinafter referred to as “system”), based on the method of
inelastic (Raman) light scattering by molecules.
This document applies both to stationary and hand-held systems; geometric and mass
parameters are not concerned in the tests. This document is applicable to substance
identification testing criteria as well as verification, approval and operating criteria of the
system. Since this document considers only the functionality of Raman analyzers and their
ability to identify single- or multicomponent fluids, it is equally suitable for verifying the Raman
analyzers assigned to security screening of threats, inspection of medical solutions, liquid
chemicals, etc.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60038:2009, Standard voltages
IEC 60068-2-1:2007, Environmental testing – Part 2-1: Tests –Test A: Cold
IEC 60068-2-2:2007, Environmental testing – Part 2-2: Tests –Test B: Dry heat
IEC 60068-2-6:2007, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
IEC 60068-2-78:2012, Environmental testing – Part 2-78: Tests –Test Cab: Damp heat,
steady state
IEC 60825-4:2006, Safety of laser products – Part 4: Laser guards
IEC 60825-4:2006/AMD1:2008
IEC 60825-4:2006/AMD2:2011
IEC 61000-6-1:2016, Electromagnetic compatibility (EMC) – Part 6-1: Generic standards –
Immunity standard for residential, commercial and light-industrial environments
IEC 61000-6-3:2020, Electromagnetic compatibility (EMC) – Part 6-3: Generic standards –
Emission standard for equipment in residential environments
ISO 3696:1987, Water for analytical laboratory use – Specification and test methods
ISO 9058:2008, Glass containers – Standard tolerances for bottles

– 8 – IEC 63085:2021 © IEC 2021
ASTM D3695 – 95:2013, Standard Test Method for Volatile Alcohols in Water by Direct
Aqueous-Injection Gas Chromatography
ASTM D5309 – 16, Standard Specification for Cyclohexane 999
ASTM E1094 – 04:2015, Standard Specification for Pharmaceutical Glass Graduates
ASTM E1840 – 96:2014, Standard Guide for Raman Shift Standards for Spectrometer
Calibration
European Pharmacopoeia 8.7:2016, 2.2.48, Raman spectroscopy, pp.5464-5466
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
container
vessel holding the liquid to be inspected and having a transparent or semitransparent wall or
bottom or cap area
3.2
inspection time
time interval between the moment of starting the detection and that of obtaining the
identification result
3.3
Raman analyzer
system using the Raman method for spectral identification of organic and inorganic liquids in
transparent or semi-transparent containers, producing sample identification data in the form of
the chemical name, CAS number or analogous standard substance-identification number, and
allowing storage, processing and transfer of identification data for further procedures
3.4
Raman spectroscopy
optical technique of organic and inorganic substance identification based on spectral
measurement and analysis of inelastic (Stokes Raman) light scattering by molecules under
monochromatic laser illumination
Note 1 to entry: For each type of polyatomic molecule, the light scattering spectrum is composed of a unique set
of characteristic peaks shifted in energy from the primary laser line (Raman shift). The method consists of laser
light interacting with a substance, collection of the scattered light, spectrum processing and identification by
comparison with a reference database of spectra.
3.5
Recognition Reliability Factor
RRF
quantity defining degree of coincidence of Raman spectra of the inspected and reference
substances
Note 1 to entry: The recognition reliability factor is represented in a numeric form and is explicitly quantified in
4.3.7.2.
3.6
identification result
data including the common name of the inspected and identified liquid substance, CAS
Register number (optional), molecular formula (optional), structural formula (optional) and the
recognition reliability factor (optional)
Note 1 to entry: In the event of the identification of several substances, the identification result should include the
aforementioned records for every identified substance.
3.7
identification data protocol
data including time and date, Raman analyzer Identification Number (Raman analyzer ID),
Operator ID (optional), the identification result, and digital representation of measured and
corresponding reference Raman spectra
3.8
test liquid
liquid used for testing system performance
3.9
test sample
combination of a test container subject to 3.1 and a test liquid subject to 3.8
4 Requirements
4.1 Structure and appearance
The connection ports of the Raman analyzer should be designed for easy installation and
removal of the test sample, the condition specified in 3.1.
4.2 Functions
4.2.1 Alarm
The Raman analyzer should automatically provide warning in the form of acoustic and/or
visual signals when hazardous liquids are identified.
4.2.2 Displayed data
a) The Raman analyzer shall display the identification result in a text or graphical form
including optional fields subject to 3.6.
b) The Raman analyzer shall provide an interface for recording an identification data
protocol.
4.2.3 Recording and storage of identification data
a) Inspected substance identification data and alarm activation marks should be
automatically stored as a time-ordered sequence of data, including identification data
protocol subject to 3.7. Users may have the option to disable automatic data logging.
b) Software shall be provided for search and retrieval of identification data.
c) Identification data protocol subject to 3.7 shall be reliably protected in a secure, read-only
mode with authorized access to stored data and spectra.
d) The system shall be capable of exporting protocol data (or protocol fragments) and
identification results in commonly used non-proprietary text or graphical formats.
e) It should be possible to access and transfer recorded spectral data to external data
carriers in digital form.
– 10 – IEC 63085:2021 © IEC 2021
4.2.4 Error diagnostics and self-verification
The system should have the functionality of error diagnostics and self-verification. Self-
verification can be automatic or manual and should cover issues of the device calibration and
apparatus functionality. This can be realized via internal calibrated light sources or based on
an external etalon sample.
4.2.5 Access control software
The Raman analyzer should have an option to verify the operator’s ID. Any unique digital or
biometric ID parameters can be used for verification of authorized operators.
4.3 Performance
4.3.1 Testing conditions
4.3.1.1 Environmental conditions
Except where otherwise specified, tests shall be carried out under the standard test
conditions shown in the third column of Table 1. For tests performed outside the standard test
conditions, the values of temperature, pressure and relative humidity shall be stated and
appropriate corrections, if any, made to ensure the expected response under reference
conditions (column 2). All the tests mentioned in 4.3 shall be performed with the same system
operating parameters. The values of any deviations should be reported. The reference
conditions are given in the second column of Table 1.
The values in Table 1 are intended for tests performed in temperate climates. In other
climates actual test values shall be stated. Atmospheric pressure lower than 70 kPa is
allowed at higher altitudes and shall be similarly recorded.
Table 1 – Reference condition and standard test conditions
Environment condition Reference condition Standard test condition
Temperature 20 °C 15 °C to 35 °C
Relative humidity 65 % 45 % to 75 %
Atmospheric pressure 101,3 kPa 70 kPa to 106,6 kPa
Ambient electromagnetic Less than the lowest value
Negligible
field that causes interference
Less than twice the value
Ambient magnetic
of the induction due to
Negligible
induction
earth’s magnetic field
4.3.1.2 Test apparatus
The key apparatus for substance identification tests is shown in Table 2.

Table 2 – Key apparatus for tests and technical requirements
Test sample Specification and accuracy class
Glass 100 ml container (subject to ISO 9058:2008) with “Cyclohexane 999” (C H )
6 12
Test sample 1
(subject to ASTM D5309 – 16)
Glass 10 ml container (subject to ASTM E1094 – 04(2015)) with “Cyclohexane 999”
Test sample 2
(C H ) (subject to ASTM D5309 – 16)
6 12
Glass 100 ml container (subject to ISO 9058:2008) with distilled water (H O)
Test sample 3
(subject to ISO 3696:1987)
Glass 100 ml container (subject to ISO 9058:2008) with 10 % ethanol (C H OH) in
2 5
Test sample 4
water (H O) (subject to ASTM D3695 – 95:2013)
Glass 100 ml container (subject to ISO 9058:2008) with a solution of 50 %(volume)
methanol (CH OH) in 50 %(volume) ethanol (C H OH)
Test sample 5 3 2 5
(subject to ASTM D3695 – 95:2013)
Glass 100 ml container (subject to ISO 9058) with a solution of 33,3±1%(volume)
methanol (CH OH),
33,3 ± 1 %(volume) ethanol (C H OH) and
Test Sample 6 2 5
33,3 ± 1 %(volume) isopropanol (C H OH)
3 7
(subject to ASTM D3695 – 95)
4.3.2 Time for single inspection
4.3.2.1 Requirements
Maximum permitted inspection time shall not exceed 10 s.
4.3.2.2 Test method
The system shall successfully identify test sample 1 subject to ASTM E1840 – 96:2014;
inspection time is subject to the requirements of 4.3.2.1 (Figure A.1 of Annex A).
4.3.3 Requirements for minimum volume of liquid to be inspected
4.3.3.1 Requirements
The Raman analyzer shall be capable of analyzing a liquid object with minimum volume of
10 ml.
4.3.3.2 Test method
Use test sample 2 for the minimum volume test. The test shall successfully identify
cyclohexane by comparison to the reference spectrum given in ASTM E1840 – 96:2014,
inspection time is subject to the requirements of 4.3.2.1.
4.3.4 Requirements for container wall thickness
4.3.4.1 Requirements
The Raman analyzer shall be capable of checking a liquid with a container wall thickness up
to 10 mm.
– 12 – IEC 63085:2021 © IEC 2021
4.3.4.2 Test method
The Raman analyzer shall perform a single identification of test sample 1 subject to ASTM
E1840 – 96:2014. Insert 5 glass plates (fused silica or similar with (90 ± 5) % transmittance)
with thicknesses 2 mm ±0,10 mm, 4 mm ±0,2 mm, 6 mm ±0,3 mm, 8 mm ±0,4 mm, 10 mm
±0,5 mm between test sample 1 and the Raman analyzer sequentially. The glass plate areas
shall be sufficient to cover the output and input apertures of the Raman analyzer
(see Figure 1). The orientation of glass plates should be reasonably perpendicular
(±3 degrees) to the optical axis. The test shall successfully identify cyclohexane by
comparison to the reference spectrum given in ASTM E1840 – 96:2014; inspection time is
subject to the requirements of 4.3.2.1.

Figure 1 – Test on container wall thickness
4.3.5 Requirements for container wall transparency
4.3.5.1 Requirements
The Raman analyzer shall be capable of checking a liquid in a container with wall
transmittance exceeding (25 ± 3) %.
4.3.5.2 Test method
The Raman analyzer shall perform a single identification of the test sample 1 subject to ASTM
E1840 – 96:2014. Insert sequentially 6 standard absorbing or reflective neutral density filters
with transmittance (80 ± 3) %, (63 ± 3) %, (50 ± 3) %, (40 ± 3) %, (32 ± 3) % and (25 ± 3) %;
−OD
i.e. with an optical density (OD) ranging from 0,1 to 0,6 through 0,1 (transmittance T = 10 )
between test sample 1 and the Raman analyzer. The areas of the neutral density filters shall
be sufficient to cover the output and input apertures of the Raman analyzer (see Figure 2).
The orientation of glass plates should be reasonably perpendicular (± 3 degrees) to the
optical axis. The test shall successfully identify test sample 1 by comparison to the reference
spectrum given in ASTM E1840 – 96:2014; inspection time is subject to the requirements of
4.3.2.1.
Figure 2 – Test on container wall transparency
4.3.6 Requirements for detectable spectral range
4.3.6.1 Requirements
The Raman analyzer shall be able to record Raman spectra of organic/inorganic liquids in the
−1 −1
Raman shift range from 300 cm to 3 600 cm , the range that contains the characteristic
peaks of most known liquids.
4.3.6.2 Test method
The Raman analyzer shall perform single identifications of test samples 1 and 3 and detect
the following characteristic Raman features: for test sample 1 subject to ASTM E1840 –
−1 −1 −1
96:2014 – four characteristic peaks at (384 ± 2) cm , (801 ± 2) cm , (1 444 ± 2) cm , and
−1 −1
(2 853 ± 2) cm ; for test sample 3 – the characteristic band ranging from (3 130 ± 30) cm
−1
to (3 570 ± 30) cm (Figure A.1 and Figure A.2 of Annex A). The recorded spectral data shall
be either displayed on the embedded monitor or transferred in digital form to an external
computer.
4.3.7 Reproducibility of identification result
4.3.7.1 Requirements
The identification result of the same test sample obtained in identical measurement conditions
shall coincide with spread of the recognition reliability factor not exceeding 5 %.
4.3.7.2 Test method
Use test sample 1 subject to ASTM E1840 – 96:2014 for the identification reproducibility test
(Table 3).
Perform 10 sequential measurement/identification cycles (inspection time is subject to the
requirements of 4.3.2.1) and fill in the fields of Table 3, including the result of ID match to test
sample 1 (true/false) and the numerical value of the calculated recognition reliability factor.
The test is passed if all 10 identification results show the correct substance ID (Cyclohexane)
and the coefficient of variation (CoV, defined as the ratio of the standard deviation σ to the
mean value) of the recognition reliability factor does not exceed 0,05.

– 14 – IEC 63085:2021 © IEC 2021
For a single measured Raman spectrum of test sample 1, the Recognition Reliability Factor
(RRF) is calculated from the positions of the five most intense spectral peaks of test sample 1
(ASTM E1840 – 96:2014):
−1
a) 801,30 ± 0,96 cm ;
−1
b) 1 028,30 ± 0,45 cm ;
−1
c) 1 266,40 ± 0,58 cm ;
−1
d) 1 444,40 ± 0,30 cm ;
−1
e) 2 852,90 ± 0,32 cm .
Based on the measurement error of spectral peaks with Raman analyzers (reference to
European Pharmacopoeia 8.7:2016, Chapter 2.2.48), the largest admissible deviation of the
−1
absolute positions of Raman peaks is chosen as Γ = 3 cm .
The Recognition Reliability Factor is determined by the formula:
RRF=
�𝜈𝜈−𝜈𝜈 �
� 5 𝑖𝑖 𝑖𝑖
1+ ∑
𝑖𝑖=1 2
𝛤𝛤
Table 3 – Reproducibility test results table
Recognition
ID match
Test liquid ID Test result No. Reliability Factor
(true/false)
(RRF)
Liquid
Mean true/false =
Standard deviation  =
CoV<0,05  true/false
4.3.8 Selectivity of substance identification
4.3.8.1 General
This tests the ability of a system to identify chemical substances, including mixed liquid
solutions.
4.3.8.2 Requirements
When analyzing chemical compounds, the identification data shall contain common names of
the compounds and/or synonyms and chemically related compounds. In the case of analysis
of binary solutions (see e.g. Figure A.4 and Figure A.5 of Annex A), identification of both
components shall be achieved. In the case of the ternary solution (see e.g. Figure A.5 of
Annex A), it is only required that any, all, or no components identified are so reported. The
spectra of binary or ternary solutions should not be stored in the spectral library of the system
prior to the test.
4.3.8.3 Test method
Analyze test sample 4. Both components – water and ethanol – shall be successfully
identified by the system under test; inspection time is subject to the requirements of 4.3.2.1.
Analyze test sample 5. The two components – methanol and ethanol – shall be successfully
identified by the system under test; inspection time is subject to the requirements of 4.3.2.1.
Analyze test sample 6. For the ternary compound, the requirement is that the three
components – methanol, ethanol and isopropanol – shall each be reported as identified by the
system under test or not; inspection time is subject to the requirements of 4.3.2.1. The
requirement is to report only.
4.4 Laser safety
4.4.1 General
Predetermined security measures are required for the Raman analyzer, depending on the
laser class to which it is assigned by the manufacturer. This applies to the visual and audible
indication of the status of the emitter, the presence of radiation blocking, protective casing
and other devices that protect the operator and bystanders from harmful exposure to laser

radiation.
4.4.2 Depending on its declared class of laser, the Raman analyzer shall meet the safety
requirements prescribed in IEC 60825-4:2006.
4.5 Electrical safety
4.5.1 Main power connection
4.5.1.1 Requirements
If operated using AC mains supply, the input voltage and frequency shall correspond to the
input parameters of the low-voltage power supply unit of the Raman analyzer. The input
parameters of the low-voltage power supply of the Raman analyzer shall be compatible with
the parameters of the available ac mains supply (subject to the requirements of
IEC 60038:2009).
4.5.1.2 Test method
Check that the permissible voltage and frequency range indicated on the low-voltage power
supply unit corresponds to the parameters of the available ac mains supply. Plug the Raman
analyzer into an outlet using a low-voltage power supply. Perform 4.3.2.2 and ensure normal
system operation.
– 16 – IEC 63085:2021 © IEC 2021
4.5.2 Stability at mains power supply
4.5.2.1 Requirements
If operated using AC mains supply, the Raman analyzer shall operate normally when the
supply voltage is between 85 % and 110 % of voltage rating and in the range of ± 3 Hz of
nominal frequency.
4.5.2.2 Test method
The Raman analyzer shall operate normally while being tested for 15 min at each of three
voltage levels, namely, AC voltage of 85 % of nominal value, the nominal value, and 110 % of
nominal value, respectively. A single test procedure mentioned in 4.3.2.2 shall be successfully
completed after 15 min of powering the instrument at each voltage level.
4.5.3 Battery connection
4.5.3.1 General
This subclause applies to systems that are battery powered.
4.5.3.2 Requirements
The Raman analyzer shall be suitably protected against the incorrect connection of the
battery.
4.5.3.3 Test method
The compliance to this requirement can be verified by observation or by test disconnection
and reconnection of the battery.
4.5.4 Stability to battery charge level
4.5.4.1 General
This subclause applies to the systems that are battery powered.
4.5.4.2 Requirements
In the case of battery power, the Raman analyzer should have a low-battery indication,
notifying that correct operation is no longer guaranteed. When a low-battery indication is
absent, the device should ensure normal operation.
4.5.4.3 Test method
By visual inspection of the Raman analyzer ensure that the low battery indication is present
on the device exterior. Check the performance of the system, powered from the battery, at the
charge level higher than the point of low battery indication. The system shall perform correct
identification of test sample 1 subject to ASTM E1840 – 96:2014; inspection time is subject to
the requirements of 4.3.2.1 (Figure A.1 of Annex A). Perform several tests more than once
every 10 min and confirm that the Raman analyzer gives correct identifications (in terms of
the substance ID) until the point at which a low battery indication is given.
4.6 Mechanical stability
4.6.1 General
This subclause applies to the systems that are free standing.

4.6.2 Requirements
The Raman analyzer should be physically stable when it is tilted up to 10° from its normal
position.
4.6.3 Test method
Place the Raman analyzer on a slope at 10° to the horizontal. The Raman analyzer should not
be overturned. Repeat for rotations of the system about a vertical axis by 90°.
4.7 Environmental requirements
4.7.1 Environmental suitability test
The system functionality shall be demonstrated before, during, and after applying standard
ambient testing. See Table 4 for environmental suitability tests and requirements.
Table 4 – Ambient requirements
Test of functionality
Severity Duration
Project Test method Remarks
Before Inter- After ambient
level h
ambient test mediate test
Energize the
Ambient
Perform test Ab of equipment for
temperature 15 °C ± 3 °C 8 4.3.2.2 4.3.2.2 4.3.2.2
IEC 60068-2-1:2007 corresponding
(Low)
testing period
35 °C ± 3 °C
Energize the
Ambient
Relative
Perform test Bb of equipment for
temperature 8 4.3.2.2 4.3.2.2 4.3.2.2
humidity:
IEC 60068-2-2:2007 corresponding
(High)
(45 % –
testing period
75 %)
35 °C ± 3 °C
Energize the
Relative Perform test Ca of equipment for
Relative
8 4.3.2.2 4.3.2.2 4.3.2.2
humidity IEC 60068-2-78:2012 corresponding
humidity:
testing period
(80 %±3 % )
Storage Do not
Perform test Ab of
Temperature 0 °C ± 3 °C 8 4.3.2.2 None 4.3.2.2 energize the
IEC 60068-2-1:2007
(Low) equipment
Storage Do not
Perform test Bb of
Temperature 50 °C ± 3 °C 8 4.3.2.2 None 4.3.2.2 energize the
IEC 60068-2-2:2007
(High) equipment
Upon completion of all environmental tests wait another 4 h at normal conditions for the
Raman system to thermalize. Perform 4.3.2.2 and ensure normal system operation. Test
sample 1 shall be correctly identified.
4.7.2 Mechanical vibration testing
The system functionality shall be demonstrated before and after testing for mechanical
stability. See Table 5 for mechanical vibration tests and requirements.

– 18 – IEC 63085:2021 © IEC 2021
Table 5 – Tests and requirements for mechanical stability
Functionality test Remark
Before After
Project Requirements Test method
vibration vibration
test test
Vibration Frequency range (Hz): 2~9, 9~200 Subject to 4.3.2.2 4.3.2.2 Do not energize
test (sine wave); amplitude (mm): 0,3; IEC 60068-2-6:2007 the equipment
peak acceleration (m/s ): 1; during vibration
Vibration direction: X,Y,Z; Duration
(min): 10
Perform 4.3.2.2 and ensure normal system operation. Test sample 1 shall be correctly
identified.
4.8 Electromagnetic compatibility
4.8.1 Immunity testing
4.8.1.1 Requirements
4.8.1.1.1 Magnetic fields
Testing of immunity to power frequency magnetic field for the equipment shall be performed
subject to the requ
...
