IEC 60317-17:2010

IEC 60317-17 ®
Edition 3.0 2010-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 17: Polyvinyl acetal enamelled rectangular copper wire, class 105

Spécifications pour types particuliers de fils de bobinage –
Partie 17: Fil de section rectangulaire en cuivre émaillé avec acétal de
polyvinyle, classe 105
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60317-17 ®
Edition 3.0 2010-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 17: Polyvinyl acetal enamelled rectangular copper wire, class 105

Spécifications pour types particuliers de fils de bobinage –
Partie 17: Fil de section rectangulaire en cuivre émaillé avec acétal de
polyvinyle, classe 105
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
J
CODE PRIX
ICS 29.060.10 ISBN 978-2-88910-109-2
– 2 – 60317-17 © IEC:2010

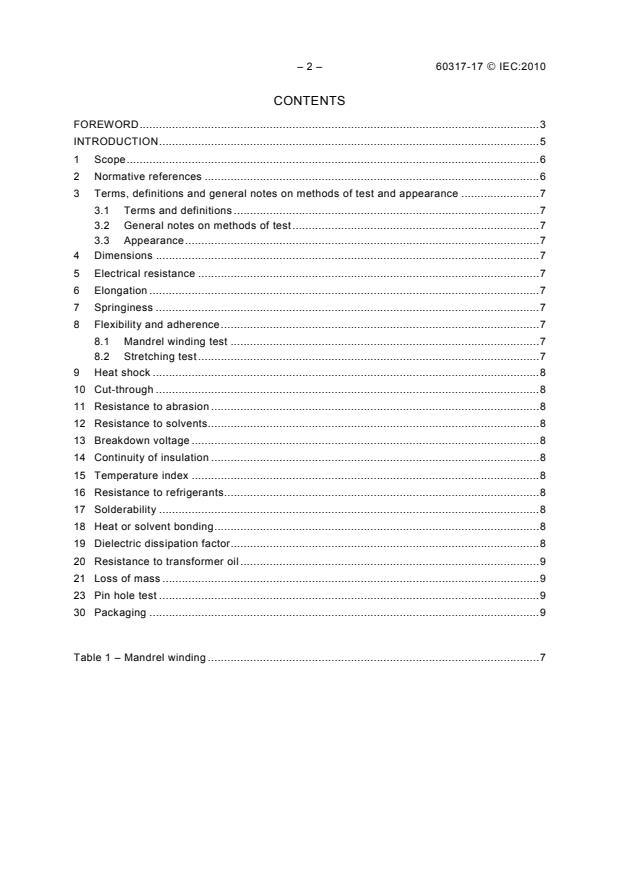

CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative references .6
3 Terms, definitions and general notes on methods of test and appearance .7
3.1 Terms and definitions .7
3.2 General notes on methods of test.7
3.3 Appearance.7
4 Dimensions .7
5 Electrical resistance .7
6 Elongation .7
7 Springiness .7
8 Flexibility and adherence.7
8.1 Mandrel winding test .7
8.2 Stretching test .7
9 Heat shock .8
10 Cut-through .8
11 Resistance to abrasion .8
12 Resistance to solvents.8
13 Breakdown voltage .8
14 Continuity of insulation .8
15 Temperature index .8
16 Resistance to refrigerants.8
17 Solderability .8
18 Heat or solvent bonding.8
19 Dielectric dissipation factor.8
20 Resistance to transformer oil .9
21 Loss of mass .9
23 Pin hole test .9
30 Packaging .9

Table 1 – Mandrel winding .7

60317-17 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR
TYPES OF WINDING WIRES –
Part 17: Polyvinyl acetal enamelled rectangular
copper wire, class 105
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This International Standard has been prepared by IEC technical committee 55: Winding wires.
This third edition of IEC 60317-17 cancels and replaces the second edition issued in 1990, its
Amendment 1 (1997) and its Amendment 2 (2005). This edition constitutes a technical
revision.
The main change with respect to the previous edition is listed below:
– Clause 20: reference to the transformer oil resistance test method in IEC 60851-4.

– 4 – 60317-17 © IEC:2010
The text of this standard is based on the following documents:
FDIS Report on voting
55/1180/FDIS 55/1191/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This International Standard is to be read in conjunction with IEC 60317-0-2 (1997).
A list of all the parts in the IEC 60317 series, under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60317-17 © IEC:2010 – 5 –
INTRODUCTION
This part of IEC 60317 is one of a series which deals with insulated wires used for windings in
electrical equipment. The series has three groups describing
1) winding wires and test methods (IEC 60851);
2) specifications for particular types of winding wire (IEC 60317);
3) packaging of winding wires (IEC 60264).

– 6 – 60317-17 © IEC:2010
SPECIFICATIONS FOR PARTICULAR
TYPES OF WINDING WIRES –
Part 17: Polyvinyl acetal enamelled rectangular
copper wire, class 105
1 Scope
This part of IEC 60317 specifies the requirements of enamelled rectangular copper winding
wire of class 105 with a sole coating based on polyvinyl acetal resin, which may be modified
providing it retains the chemical identity of the original resin and meets all specified wire
requirements.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
Class 105 is a thermal class that requires a minimum temperature index of 105 and a heat
shock temperature of at least 155 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.
The range of nominal conductor dimensions covered by this standard is
– width: min.  2,00 mm max. 16,00 mm;
– thickness: min.  0,80 mm max.  5,60 mm.
Wires of grade 1 and grade 2 are included in this specification and apply to the complete
range of conductors.
The specified combinations of width and thickness as well as the specified ratio
width/thickness are given in IEC 60317-0-2.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60317-0-2:1997, Specifications for particular types of winding wires – Part 0-2: General
requirements – Enamelled rectangular copper wire
Amendment 1 (1999)
Amendment 2 (2005)
IEC 60851-4:1996, Methods of test for winding wires – Part 4: Chemical properties
Amendment 1 (1997)
Amendment 2 (2005)
60317-17 © IEC:2010 – 7 –
3 Terms, definitions and general notes on methods of test and appearance
3.1 Terms and definitions
For terms and definitions, see 3.1 of IEC 60317-0-2.
In case of inconsistencies between IEC 60317-0-2 and this standard, IEC 60317-17 shall
prevail.
3.2 General notes on methods of test
For general notes on methods of test, see 3.2
...
