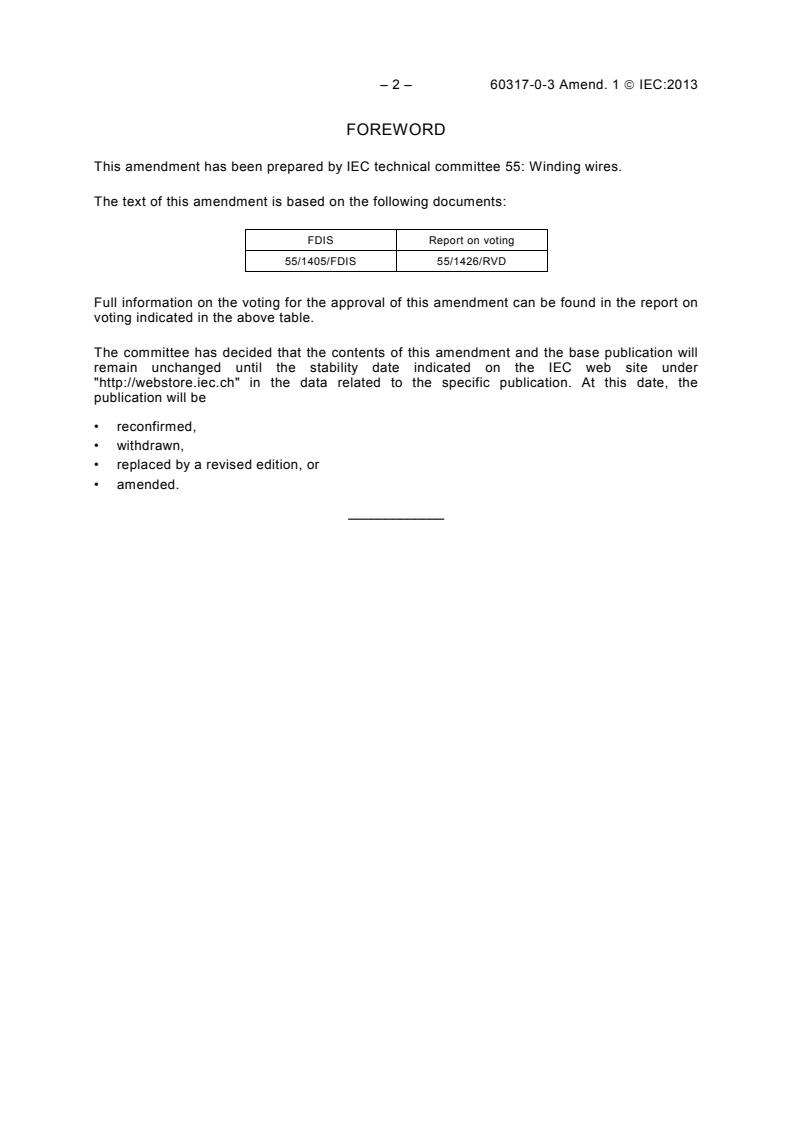

FOREWORD
This amendment has been prepared by IEC technical committee 55: Winding wires.
The text of this amendment is based on the following documents:
FDIS Report on voting
55/1405/FDIS 55/1426/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
60317-0-3 Amend. 1  IEC:2013 – 3 –
1 Scope
Delete the third paragraph, the dashed items and the example from the Scope.

2 Normative references
Add the following normative reference:
IEC 60317 (all parts), Specifications for particular types of winding wires

3 Terms, definitions and general notes on methods of tests and appearance
Replace the title of this clause by the following:
3 Terms, definitions, general notes and appearance
3.1 Definitions
3.1.10
Replace the text of this entry by the following:
nominal conductor dimension
designation of the conductor size in accordance with the IEC 60317 series
3.2 General notes on methods of test
Replace the title of this subclause by the following title:
3.2 General notes
Add the following new subclause:
3.2.1 Methods of test
Move the text of the existing 3.2 into this new subclause.
Add the following new subclause:
3.2.2 Winding wire
See the relevant specification sheet.
In addition, when reference is made to a winding wire according to a standard of the IEC 60317
series mentioned under Clause 2, the following information is given in the description:
– reference to IEC specification;
– nominal conductor diameter in millimetres;
– grade.
– 4 – 60317-0-3 Amend. 1  IEC:2013
EXAMPLE IEC 60317-1 – 0,500 Grade 2

4.1 Conductor diameter
After the third paragraph of this subclause, add the following new paragraph:
For intermediate nominal conductor diameters, the minimum increase figure corresponding to
the next larger nominal conductor diameter applies.

Table 1 – Dimensions of enamelled wires (R 20)
Delete Notes 1 and 2 from this table.

Table 2 – Dimensions of enamelled wires with a bonding layer (R 20)
Delete Notes 1 and 2 from this table.

13.2 Nominal conductor diameters up to and including 2,500 mm
After the first paragraph of this subclause, add the following new paragraph:
For intermediate nominal conductor diameters, the figure of the next larger nominal conductor
diameter applies.
Table 6 – Breakdown voltage
Delete the note from this table.
15 Temperature index
Replace the first paragraph by the following:
The test shall be carried in accordance with IEC 60172.

60317-0-3 Amend. 1  IEC:2013 – 5 –
Annex A – Dimensions for intermediate nominal conductor diameters (R 40)
Add the followi
...
