– 2 – 60317-62 © IEC:2012

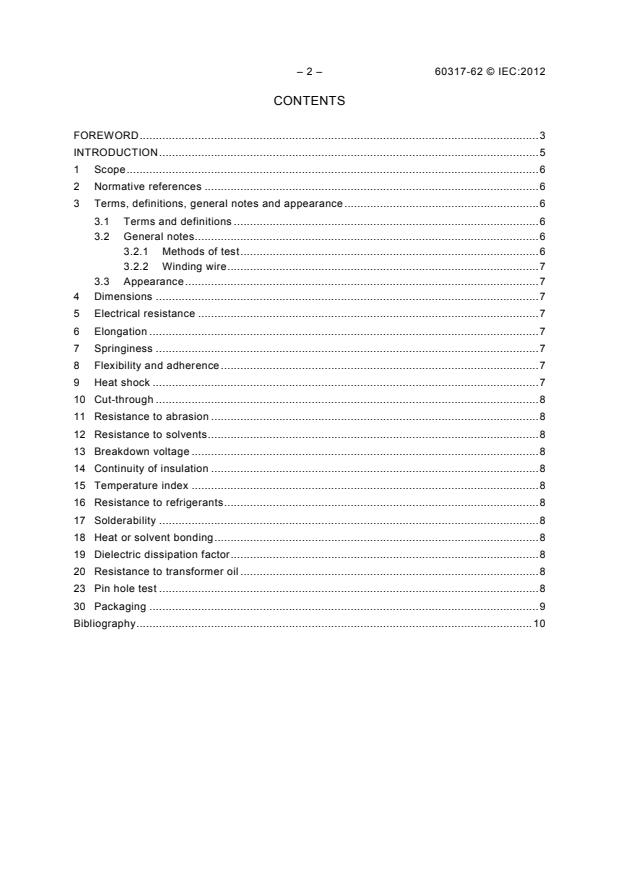

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 7
3.3 Appearance . 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 8
11 Resistance to abrasion . 8
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 8
18 Heat or solvent bonding . 8
19 Dielectric dissipation factor . 8
20 Resistance to transformer oil . 8
23 Pin hole test . 8
30 Packaging . 9
Bibliography . 10

60317-62 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR
TYPES OF WINDING WIRES –
Part 62: Polyester glass fibre wound, minimum class 200
resin or varnish impregnated, bare or enamelled rectangular
copper wire, temperature index 200

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60317-62 has been prepared by IEC technical committee 55:
Winding wires.
The text of this standard is based on the following documents:
FDIS Report on voting
55/1323/FDIS 55/1336/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 60317-62 © IEC:2012
This International standard is to be read in conjunction with the IEC 60317-0-8:2012.
The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order
to reserve space for possible future wire requirements prior to those for wire packaging.
A list of all the parts in the IEC 60317 series, published under the general title Specifications
for particular types of winding wires can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60317-62 © IEC:2012 – 5 –
INTRODUCTION
This part of IEC 60317 is one of a series which deals with insulated wires used for windings in
electrical equipment. The series has three groups describing:
1) Winding wires – Test methods (IEC 60851);
2) Specifications for particular types of winding wires (IEC 60317);
3) Packaging of winding wires (IEC 60264).

– 6 – 60317-62 © IEC:2012
SPECIFICATIONS FOR PARTICULAR
TYPES OF WINDING WIRES –
Part 62: Polyester glass fibre wound, minimum class 200
resin or varnish impregnated, bare or enamelled rectangular
copper wire, temperature index 200

1 Scope
This part of IEC 60317 specifies the requirements of polyester glass fibre wound, resin or
varnish impregnated, bare or enamelled rectangular copper winding wire, temperature index
200.
NOTE For this type of wire, the heat shock test is inappropriate and therefore a heat shock temperature cannot be
established. Consequently, a class based on the requirements for temperature index and heat shock temperature
cannot be specified.
The range of nominal conductor dimensions covered by this standard is:
– width: min. 2,0 mm; max. 16,0 mm;
– thickness: min. 0,80 mm; max. 5,60 mm.
The specified combinations of width and thickness as well as the specified width/thickness
ratio are according to IEC 60317-0-8.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60317-0-8:2012, Specifications for particular types of winding wires – Part 0-8: General
requirements –Polyester glass fibre wound, resin or varnish impregnated or not impregnated,
bare or enamelled rectangular copper wire
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in 3.1 of
IEC 60317-0-8:2012 apply.
3.2 General notes
3.2.1 Methods of test
Subclause 3.2 of IEC 60317-0-8:2012 applies.
In case of inconsistency between IEC 60317-0-8 and this standard, IEC 60317-62 shall
prevail.
60317-62 © IEC:2012 – 7 –
3.2.2 Winding wire
The enamelled wire shall have a temperature index of at least 200 and shall be agreed
between purchaser and supplier.
The temperature index of the wire is dependent upon the type of impregnating agent used.
The impregnating agent applie
...
