IEC 60317-2:2019

IEC 60317-2 ®
Edition 5.1 2024-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Specifications for particular types of winding wires –
Part 2: Solderable polyurethane enamelled round copper wire, class 130, with a
bonding layer
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60317-2 ®
Edition 5.1 2024-06
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Specifications for particular types of winding wires –
Part 2: Solderable polyurethane enamelled round copper wire, class 130, with a
bonding layer
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.060.10 ISBN 978-2-8322-9188-7
REDLINE VERSION – 2 – IEC 60317-2:2019+AMD1:2024 CSV
© IEC 2024

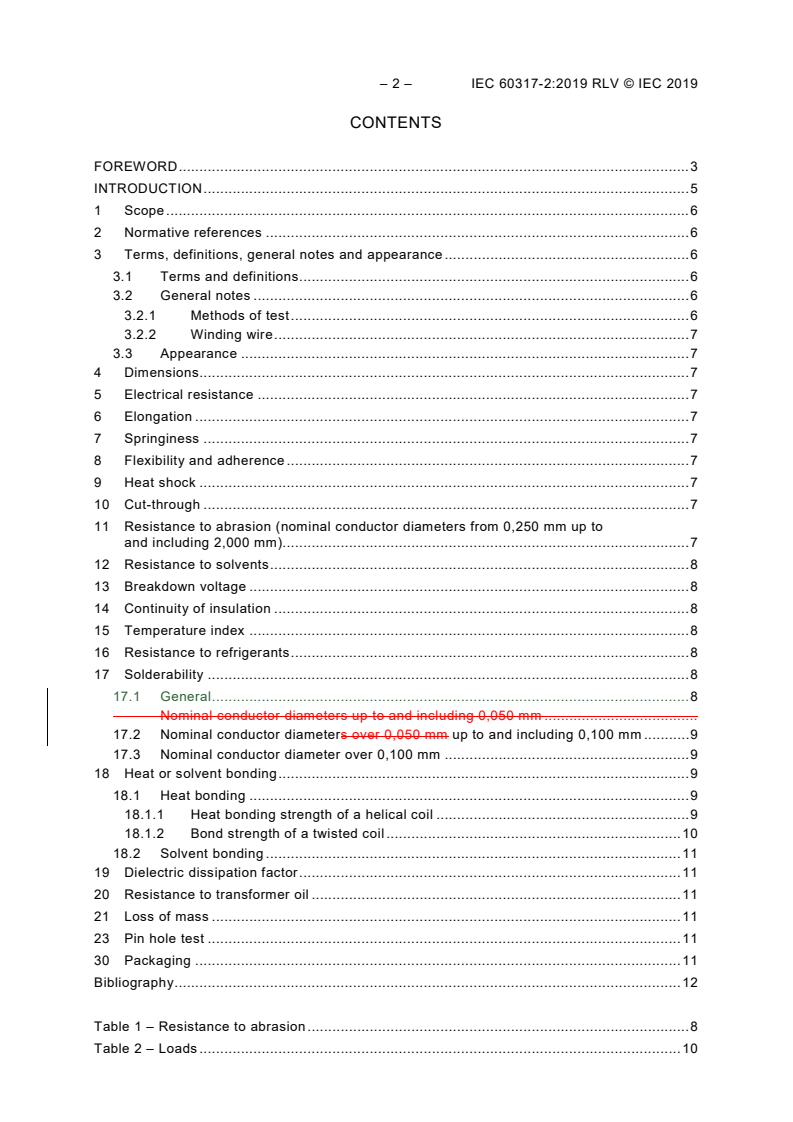

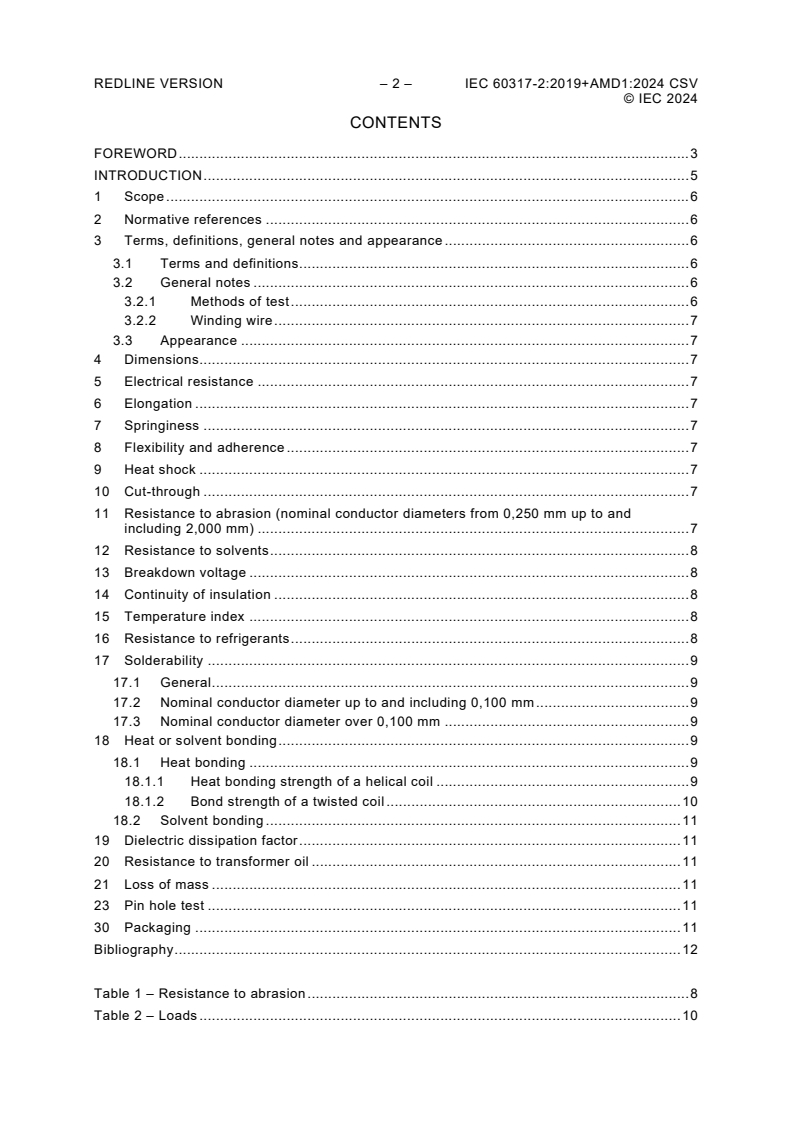

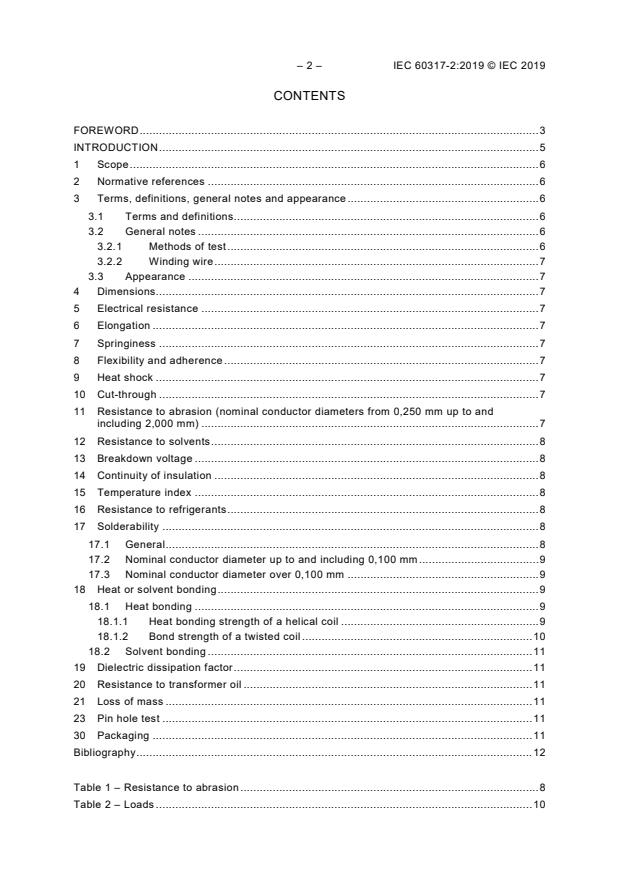

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 7
3.3 Appearance . 7
4 Dimensions. 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 2,000 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
17.1 General . 9
17.2 Nominal conductor diameter up to and including 0,100 mm . 9
17.3 Nominal conductor diameter over 0,100 mm . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength of a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 2: Solderable polyurethane enamelled round copper wire,
class 130, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 60317-2 edition 5.1 contains the fifth edition (2019-08) [documents 55/1785/FDIS and
55/1797/RVD] and its amendment 1 (2024-06) [documents 55/1980/CDV and
55/2016/RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
REDLINE VERSION – 4 – IEC 60317-2:2019+AMD1:2024 CSV
© IEC 2024
International Standard IEC 60317-2 has been prepared by IEC technical committee 55:
Winding wires.
This fifth edition cancels and replaces the fourth edition published in 2012. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of heat bonding test loads for nominal conductor diameters up to and including
0,050 mm;
b) addition of pin hole test requirements according to IEC 60317-0-1:2013.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The numbering of clauses in this standard is not continuous from Clauses 21 through 30 in
order to reserve space for possible future wire requirements prior to those for wire packaging.
This International Standard is to be used in conjunction with IEC 60317-0-1:2013 and its
Amendment 1:2019.
The committee has decided that the contents of this document and its amendment will remain
unchanged until the stability date indicated on the IEC website under webstore.iec.ch in the
data related to the specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
© IEC 2024
INTRODUCTION
This part of IEC 60317 forms an element of a series of standards which deals with insulated
wires used for windings in electrical equipment. It is composed of the following series:
1) Winding wires – Test methods (IEC 60851 series);
2) Specifications for particular types of winding wires (IEC 60317 series);
3) Packaging of winding wires (IEC 60264 series).

REDLINE VERSION – 6 – IEC 60317-2:2019+AMD1:2024 CSV
© IEC 2024
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 2: Solderable polyurethane enamelled round copper wire,
class 130, with a bonding layer

1 Scope
This part of IEC 60317 specifies the requirements of solderable enamelled round copper
winding wire of class 130 with a dual coating. The underlying coating is based on
polyurethane resin, which may be modified providing it retains the chemical identity of the
original resin and meets all specified wire requirements. The superimposed coating is a
bonding layer based on a thermoplastic resin.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
The range of nominal conductor diameters covered by this standard is:
– Grade 1B: 0,020 mm up to and including 2,000 mm;
– Grade 2B: 0,020 mm up to and including 2,000 mm.
The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60317-0-1 :2013, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire
IEC 60317-0-1:2013/AMD1:2019
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60317-0-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 General notes
3.2.1 Methods of test
Subclause 3.2.1 of IEC 60317-0-1:2013 and IEC 60317-0-1:2013/AMD1:2019 applies.

There exists a consolidated edition 4.1:2021 that includes IEC 60317-0-1:2013 and its Amendment 1:2019.

© IEC 2024
In case of inconsistencies between IEC 60317-0-1 and this standard document, IEC 60317-2
shall prevail.
3.2.2 Winding wire
Class 130 is a thermal class that requires a minimum temperature index of 130 and a heat
shock temperature of at least 155 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.
3.3 Appearance
Subclause 3.3 of IEC 60317-0-1:2013 applies.
4 Dimensions
Clause 4 of IEC 60317-0-1:2013 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-1:2013 and IEC 60317-0-1:2013/AMD1:2019 applies.
6 Elongation
Clause 6 of IEC 60317-0-1:2013 applies.
7 Springiness
Clause 7 of IEC 60317-0-1:2013 applies.
8 Flexibility and adherence
Clause 8 of IEC 60317-0-1:2013 applies. The constant K used for the calculation of the
number of revolutions for the peel test shall be 150 mm.
9 Heat shock
Clause 9 of IEC 60317-0-1:2013 applies. The minimum heat shock temperature shall be
155 °C.
10 Cut-through
No failure shall occur within 2 min at 170 °C.
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to
and including 2,000 mm)
The wire shall meet the requirements given in Table 1.

REDLINE VERSION – 8 – IEC 60317-2:2019+AMD1:2024 CSV
© IEC 2024
For intermediate nominal conductor diameters, the value of the next largest nominal
conductor diameter applies.
Table 1 – Resistance to abrasion
Grade 1 Grade 2
Nominal
Minimum Minimum Minimum Minimum
conductor average force to average force to
diameter force failure of each force failure of each
to failure measurement to failure measurement

mm
N N N N
0,250 2,30 1,95 4,10 3,50
0,280 2,50 2,10 4,40 3,70
0,315 2,70 2,30 4,75 4,00
0,355 2,90 2,50 5,10 4,30
0,400 3,15 2,70 5,45 4,60
0,450 3,40 2,90 5,80 4,90
5,25
0,500 3,65 3,10 6,20
0,560 3,90 3,30 6,65 5,60
0,630 4,20 3,55 7,10 6,00
0,710 4,50 3,80 7,60 6,45
0,800 4,80 4,10 8,10 6,90
4,40 8,70 7,40
0,900 5,20
1,000 5,60 4,75 9,30 7,90
1,120 6,00 5,15 10,0 8,50
1,250 6,50 5,55 10,7 9,10
1,400 7,00 5,95 11,4 9,70
1,600 7,50 6,35 12,2 10,4
1,800 8,00 6,80 13,1 11,1
2,000 8,60 7,30 14,0 11,9
12 Resistance to solvents
Test inappropriate.
13 Breakdown voltage
Clause 13 of IEC 60317-0-1:2013 applies. The elevated temperature shall be 130 °C.
14 Continuity of insulation
Clause 14 of IEC 60317-0-1:2013 applies.
15 Temperature index
Clause 15 of IEC 60317-0-1:2013 applies. The minimum temperature index shall be 130.
16 Resistance to refrigerants
Test inappropriate.
© IEC 2024
17 Solderability
17.1 General
The temperature of the solder bath shall be (375 ± 5) °C. The maximum immersion time shall
be 2 s.
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
17.2 Nominal conductor diameter up to and including 0,100 mm
The maximum immersion time shall be 2 s.
17.3 Nominal conductor diameter over 0,100 mm
The maximum immersion shall be the following multiple of the nominal conductor diameter (in
millimetres) with a minimum of 2 s.
Grade 1B Grade 2B
12 s/mm 16 s/mm
18 Heat or solvent bonding
18.1 Heat bonding
18.1.1 Heat bonding strength of a helical coil
18.1.1.1 At room temperature
The specimens shall be prepared according to the test method, and the temperature of the
oven for bonding shall be fixed as agreed between purchaser and supplier for the different
types of bonding enamels. The suggested temperature for polyamide bonding enamel is
(200 ± 2) °C and the suggested temperature for polyvinyl butyral bonding enamel is
(170 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall be separated.
For nominal conductor diameters up to and including 0,050 mm, the test method and
requirements are based upon agreement between purchaser and supplier.
18.1.1.2 At elevated temperature
The specimens shall be prepared and shall be conditioned as described in the test method.
The elevated temperature shall be fixed as agreed between purchaser and supplier for the
different types of bonding enamels. The suggested temperature for polyamide bonding
enamel is (155 ± 2) °C and the suggested temperature for polyvinyl butyral bonding enamel is
(90 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall be separated.

REDLINE VERSION – 10 – IEC 60317-2:2019+AMD1:2024 CSV
© IEC 2024
Table 2 – Loads
Nominal conductor diameter Room temperature Elevated temperature
mm
Over Up to and including Load Load
N N
— 0,050 * *
0,050 0,071 0,05 0,04
0,071 0,100 0,08 0,06
0,100 0,160 0,12
0,08
0,160 0,200 0,25 0,19
0,200 0,315 0,35 0,25
0,315 0,400 0,70 0,55
0,400 0,500 1,10 0,80
0,500 0,630
1,60 1,20
0,630 0,710 2,20 1,70
0,710 0,800 2,80 2,10
0,800 0,900 3,40 2,60
0,900 1,000 4,20 3,20
1,000 1,120
5,00 3,80
1,120 1,250 5,80 4,40
1,250 1,400 6,50 4,90
1,400 1,600 8,50 6,40
1,600 1,800 10,00 7,90
1,800 2,000 12,00
7,90
* For nominal conductor diameters up to and including 0,050 mm, the test method and requirements are based
upon agreement between purchaser and supplier.

18.1.2 Bond strength of a twisted coil
18.1.2.1 At room temperature
A test specimen of diameter 0,315 mm shall be prepared according to the test method. The
time shall be 30
...

IEC 60317-2 ®
Edition 5.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –
Part 2: Solderable polyurethane enamelled round copper wire, class 130,
with a bonding layer
Spécifications pour types particuliers de fils de bobinage –
Partie 2: Fil brasable de section circulaire en cuivre émaillé avec polyuréthane,
classe 130, avec une couche adhérente

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and
a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or need CISPR.

further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,
webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en
La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues
en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire
comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary
IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais
Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des
Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées
Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org

IEC 60317-2 ®
Edition 5.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 2: Solderable polyurethane enamelled round copper wire, class 130,

with a bonding layer
Spécifications pour types particuliers de fils de bobinage –

Partie 2: Fil brasable de section circulaire en cuivre émaillé avec polyuréthane,

classe 130, avec une couche adhérente

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-7205-3

– 2 – IEC 60317-2:2019 © IEC 2019
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 7
3.3 Appearance . 7
4 Dimensions. 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 2,000 mm) . 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 8
17.1 General . 8
17.2 Nominal conductor diameter up to and including 0,100 mm . 9
17.3 Nominal conductor diameter over 0,100 mm . 9
18 Heat or solvent bonding . 9
18.1 Heat bonding . 9
18.1.1 Heat bonding strength of a helical coil . 9
18.1.2 Bond strength of a twisted coil . 10
18.2 Solvent bonding . 11
19 Dielectric dissipation factor . 11
20 Resistance to transformer oil . 11
21 Loss of mass . 11
23 Pin hole test . 11
30 Packaging . 11
Bibliography . 12

Table 1 – Resistance to abrasion . 8
Table 2 – Loads . 10

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 2: Solderable polyurethane enamelled round copper wire,
class 130, with a bonding layer

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60317-2 has been prepared by IEC technical committee 55:
Winding wires.
This fifth edition cancels and replaces the fourth edition published in 2012. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of heat bonding test loads for nominal conductor diameters up to and including
0,050 mm;
b) addition of pin hole test requirements according to IEC 60317-0-1:2013.

– 4 – IEC 60317-2:2019 © IEC 2019
The text of this International Standard is based on the following documents:
FDIS Report on voting
55/1785/FDIS 55/1797/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60317 series, published under the general title Specifications for
particular types of winding wires, can be found on the IEC website.
The numbering of clauses in this standard is not continuous from Clauses 21 through 30 in
order to reserve space for possible future wire requirements prior to those for wire packaging.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
This part of IEC 60317 forms an element of a series of standards which deals with insulated
wires used for windings in electrical equipment. It is composed of the following series:
1) Winding wires – Test methods (IEC 60851 series);
2) Specifications for particular types of winding wires (IEC 60317 series);
3) Packaging of winding wires (IEC 60264 series).

– 6 – IEC 60317-2:2019 © IEC 2019
SPECIFICATIONS FOR PARTICULAR TYPES OF WINDING WIRES –

Part 2: Solderable polyurethane enamelled round copper wire,
class 130, with a bonding layer

1 Scope
This part of IEC 60317 specifies the requirements of solderable enamelled round copper
winding wire of class 130 with a dual coating. The underlying coating is based on
polyurethane resin, which may be modified providing it retains the chemical identity of the
original resin and meets all specified wire requirements. The superimposed coating is a
bonding layer based on a thermoplastic resin.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
The range of nominal conductor diameters covered by this standard is:
– Grade 1B: 0,020 mm up to and including 2,000 mm;
– Grade 2B: 0,020 mm up to and including 2,000 mm.
The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60317-0-1:2013, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire
3 Terms, definitions, general notes and appearance
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60317-0-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 General notes
3.2.1 Methods of test
Subclause 3.2 of IEC 60317-0-1:2013 applies.
In case of inconsistencies between IEC 60317-0-1 and this standard, IEC 60317-2 shall
prevail.
3.2.2 Winding wire
Class 130 is a thermal class that requires a minimum temperature index of 130 and a heat
shock temperature of at least 155 °C.
The temperature in degrees Celsius corresponding to the temperature index is not necessarily
that at which it is recommended that the wire be operated and this will depend on many
factors, including the type of equipment involved.
3.3 Appearance
Subclause 3.3 of IEC 60317-0-1:2013 applies.
4 Dimensions
Clause 4 of IEC 60317-0-1:2013 applies.
5 Electrical resistance
Clause 5 of IEC 60317-0-1:2013 applies.
6 Elongation
Clause 6 of IEC 60317-0-1:2013 applies.
7 Springiness
Clause 7 of IEC 60317-0-1:2013 applies.
8 Flexibility and adherence
Clause 8 of IEC 60317-0-1:2013 applies. The constant K used for the calculation of the
number of revolutions for the peel test shall be 150 mm.
9 Heat shock
Clause 9 of IEC 60317-0-1:2013 applies. The minimum heat shock temperature shall be
155 °C.
10 Cut-through
No failure shall occur within 2 min at 170 °C.
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to
and including 2,000 mm)
The wire shall meet the requirements given in Table 1.
For intermediate nominal conductor diameters, the value of the next largest nominal
conductor diameter applies.
– 8 – IEC 60317-2:2019 © IEC 2019
Table 1 – Resistance to abrasion
Grade 1 Grade 2
Nominal
Minimum Minimum Minimum Minimum
conductor average force to average force to
diameter force failure of each force failure of each
to failure measurement to failure measurement

mm
N N N N
0,250 2,30 1,95 4,10 3,50
3,70
0,280 2,50 2,10 4,40
0,315 2,70 2,30 4,75 4,00
0,355 2,90 2,50 5,10 4,30
0,400 3,15 2,70 5,45 4,60
0,450 3,40 2,90 5,80 4,90
3,10 6,20 5,25
0,500 3,65
0,560 3,90 3,30 6,65 5,60
0,630 4,20 3,55 7,10 6,00
0,710 4,50 3,80 7,60 6,45
0,800 4,80 4,10 8,10 6,90
0,900 5,20 4,40 8,70 7,40
1,000 5,60 4,75 9,30 7,90
1,120 6,00 5,15 10,0 8,50
1,250 6,50 5,55 10,7 9,10
1,400 7,00 5,95 11,4 9,70
12,2 10,4
1,600 7,50 6,35
1,800 8,00 6,80 13,1 11,1
2,000 8,60 7,30 14,0 11,9
12 Resistance to solvents
Test inappropriate.
13 Breakdown voltage
Clause 13 of IEC 60317-0-1:2013 applies. The elevated temperature shall be 130 °C.
14 Continuity of insulation
Clause 14 of IEC 60317-0-1:2013 applies.
15 Temperature index
Clause 15 of IEC 60317-0-1:2013 applies. The minimum temperature index shall be 130.
16 Resistance to refrigerants
Test inappropriate.
17 Solderability
17.1 General
The temperature of the solder bath shall be (375 ± 5) °C. The maximum immersion time shall
be 2 s.
The surface of the tinned wire shall be smooth and free from holes and enamel residues.
17.2 Nominal conductor diameter up to and including 0,100 mm
The maximum immersion time shall be 2 s.
17.3 Nominal conductor diameter over 0,100 mm
The maximum immersion shall be the following multiple of the nominal conductor diameter (in
millimetres) with a minimum of 2 s.
Grade 1B Grade 2B
12 s/mm 16 s/mm
18 Heat or solvent bonding
18.1 Heat bonding
18.1.1 Heat bonding strength of a helical coil
18.1.1.1 At room temperature
The specimens shall be prepared according to the test method, and the temperature of the
oven for bonding shall be fixed as agreed between purchaser and supplier for the different
types of bonding enamels. The suggested temperature for polyamide bonding enamel is
(200 ± 2) °C and the suggested temperature for polyvinyl butyral bonding enamel is
(170 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall be separated.
For nominal conductor diameters up to and including 0,050 mm, the test method and
requirements are based upon agreement between purchaser and supplier.
18.1.1.2 At elevated temperature
The specimens shall be prepared and shall be conditioned as described in the test method.
The elevated temperature shall be fixed as agreed between purchaser and supplier for the
different types of bonding enamels. The suggested temperature for polyamide bonding
enamel is (155 ± 2) °C and the suggested temperature for polyvinyl butyral bonding enamel is
(90 ± 2) °C.
Results: when testing the specimens according to the test method, under the action of load
specified in Table 2, no turns (other than possibly the first and the last) shall be separated.

– 10 – IEC 60317-2:2019 © IEC 2019
Table 2 – Loads
Nominal conductor diameter Room temperature Elevated temperature
mm
Over Up to and including Load Load
N N
— 0,050 * *
0,050 0,071 0,05 0,04
0,071 0,100 0,08 0,06
0,100 0,160 0,12
0,08
0,160 0,200 0,25 0,19
0,200 0,315 0,35 0,25
0,315 0,400 0,70 0,55
0,400 0,500 1,10 0,80
0,500 0,630
1,60 1,20
0,630 0,710 2,20 1,70
0,710 0,800 2,80 2,10
0,800 0,900 3,40 2,60
...
