EN 50182:2001/AC:2013

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.åLFLeiter für Freileitungen - Leiter aus konzentrisch verseilten runden DrähtenConducteurs pour lignes aériennes - Conducteurs à brins circulaires, câblés en couches concentriquesConductors for overhead lines - Round wire concentric lay stranded conductors29.240.20DaljnovodiPower transmission and distribution lines29.060.10ŽiceWiresICS:Ta slovenski standard je istoveten z:EN 50182:2001/AC:2013SIST EN 50182:2002/AC:2013en,fr,de01-oktober-2013SIST EN 50182:2002/AC:2013SLOVENSKI
STANDARD
Corrigendum to EN 50182:2001 English version ___________ 1 Modifications due to the Corrigendum from June 2005: Subclause 5.6.5 In table 3, replace "" by "≤" so as to have it read: Table 3 - Number of joints permitted in a given length Conductor length L (m) Number of joints permitted Number of aluminium layers 1 2 3 4 L ≤ 1 500 1 500 < L ≤ 2 000 L > 2 000 - - - - - - - - L ≤ 1 500 1 500 < L ≤ 2 000 2 000 < L ≤ 2 500 L > 2 500 - - - - - - - L ≤ 1 500 1 500 < L ≤ 2 000 2 000 < L ≤ 2 500 2 500 < L ≤ 3 000 3 000 < L ≤ 3 500 L > 3 500 - - - - - L ≤ 1 500 1 500 < L ≤ 2 000 2 000 < L ≤ 2 500 2 500 < L ≤ 3 000 3 000 < L ≤ 3 500 3 500 < L ≤ 4 000 L > 4 000 2 3 4 5 6 7 8 9 10 11 Subclause 5.10 In the first line replace "/km" by "Ω/km". Annex B, clause B.3 In the equations for Case 1, Case 2, Case 3 and Case 4 (two instances), replace "" by "π". Annex F, clause F.1 Replace "F.1 to F.48" by "F.1 to F.52". Replace tables F.29 and F.31 as given below. Add the new tables F.49 to F.52.

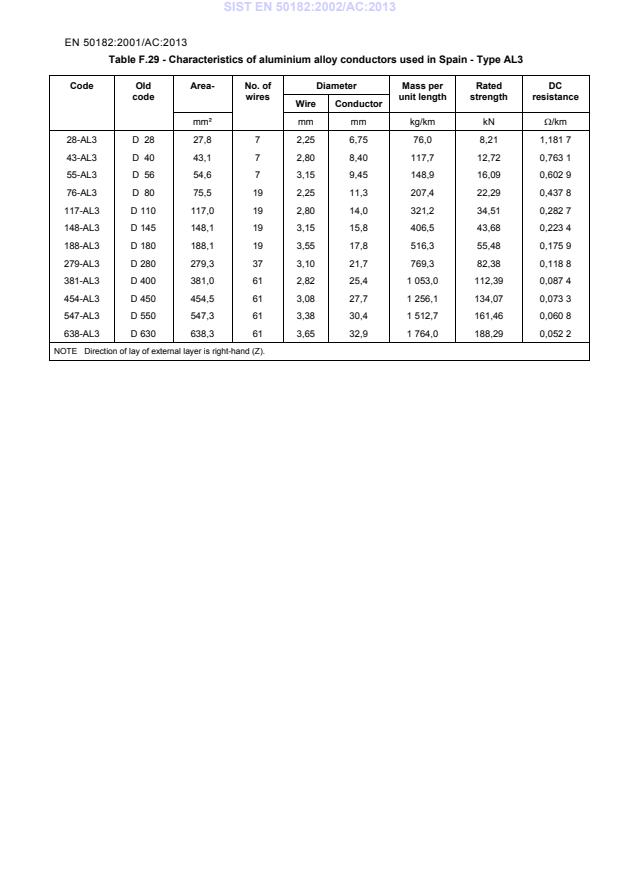

Code Old code Area- No. of
wires Diameter Mass per unit length Rated strength DC resistance
Wire Conductor
mm² mm mm kg/km kN Ω/km
28-AL3 D
28 27,8 7 2,25 6,75 76,0 8,21 1,181 7
43-AL3 D
40 43,1 7 2,80 8,40 117,7 12,72 0,763 1
55-AL3 D
56 54,6 7 3,15 9,45 148,9 16,09 0,602 9
76-AL3 D
80 75,5 19 2,25 11,3 207,4 22,29 0,437 8
117-AL3 D 110 117,0 19 2,80 14,0 321,2 34,51 0,282 7
148-AL3 D 145 148,1 19 3,15 15,8 406,5 43,68 0,223 4
188-AL3 D 180 188,1 19 3,55 17,8 516,3 55,48 0,175 9
279-AL3 D 280 279,3 37 3,10 21,7 769,3 82,38 0,118 8
381-AL3 D 400 381,0 61 2,82 25,4 1 053,0 112,39 0,087 4
454-AL3 D 450 454,5 61 3,08 27,7 1 256,1 134,07 0,073 3
547-AL3 D 550 547,3 61 3,38 30,4 1 512,7 161,46 0,060 8
638-AL3 D 630 638,3 61 3,65 32,9 1 764,0 188,29 0,052 2
NOTE
Direction of lay of external layer is right-hand (Z).
Table F.31 - Characteristics of aluminium alloy conductors steel reinforced used in Spain - Type AL3/ST1A
Code Old code Areas No. of wires Wire diameter Diameter Mass per
unit length Rated strength DC resistance
Al Steel Total Al Steel Core Conductor
mm² mm² mm² Al Steel mm mm mm mm kg/km kN Ω/km
27-AL3/4-ST1A DA
30 26,7 4,45 31,1 6 1 2,38 2,38 2,38 7,14 107,7 12,95 1,235 6
47-AL3/8-ST1A DA
56 46,8 7,79 54,6 6 1 3,15 3,15 3,15 9,45 188,6 22,37 0,705 4
67-AL3/11-ST1A DA
78 67,3 11,2 78,6 6 1 3,78 3,78 3,78 11,3 271,6 32,21 0,489 8
94-AL3/22-ST1A DA 110 94,2 22,0 116,2 30 7 2,00 2,00 6,00 14,0 432,2 53,53 0,353 0
119-AL3/28-ST1A DA 145 119,3 27,8 147,1 30 7 2,25 2,25 6,75 15,8 547,0 67,75 0,278 9
147-AL3/34-ST1A DA 180 147,3 34,4 181,6 30 7 2,50 2,50 7,50 17,5 675,3 82,61 0,225 9
226-AL3/53-ST1A DA 280 226,4 52,8 279,3 30 7 3,10 3,10 9,30 21,7 1 038,4 124,91 0,146 9
NOTE Direction of lay of external layer is right-hand (Z).
Table F.49 - Characteristics of aluminium alloy conductors used in Portugal - Type AL4 Code Old code Area Nº of wires Diameter Mass per unit length Rated strength DC resistance
Wire Conductor
mm2
mm mm kg/km kN Ω/km 34-AL4 Aster 34,4 34,4 7 2,50 7,5 93,8 11,17 0,9592 55-AL4 Aster 54,6 54,6 7 3,15 9,5 148,9 17,73 0,6042 76-AL4 Aster 75,5 75,5 19 2,25 11,3 207,4 24,55 0,4388 117-AL4 Aster 117 117,0 19 2,80 14,0 321,2 38,02 0,2833 148-AL4 Aster 148 148,1 19 3,15 15,8 406,5 48,12 0,2239 570-AL4 Aster 570 570,2 61 3,45 31,1 1576,0 185,33 0,0585 851-AL4 Aster 851 850,7 91 3,45 38,0 2360,7 276,47 0,0392 1144-AL4 Aster 1144 1143,5 91 4,00 44,0 3173,4 360,22 0,0293 NOTE Direction of lay of external layer is right-hand (Z).
Table F.50 - Characteristics of aluminium alloy conductors steel reinforced used in Portugal - Type AL4/ST6C Code Old code Areas Nº of wires Wire diameter Diameter Mass per unit length Rated strength DC resistance
Al Steel Core Conductor
Al Steel Total Al Steel mm mm mm mm kg/km kN Ω/km 119-AL4/28-ST6C Pastel 147,1 119,3 27,8 147,1 30 7 2,25 2,25 6,75 15,8 547,0 79,12 0,2795 NOTE Direction of lay of external layer is right-hand (Z).
Table F.51 - Characteristics of aluminium conductors steel reinforced used in Portugal - Type AL1/ST1A Code Old code Areas Nº of wires Wire diameter Diameter Mass per unit length Rated strength DC resistance
Al Steel Core Conductor
Al Steel Total Al Steel mm mm mm mm kg/km kN Ω/km 26-AL1/4-ST1A 30 26,25 4,37 30,62 6 1 2,36 2,36 2,36 7,08 106,7 9,34 1,0932 42-AL1/7-ST1A 50 42,41 7,07 49,48 6 1 3 3 3,00 9,00 172,4 14,93 0,6765 80-AL1/13-ST1A 90 75,40 12,57 87,96 6 1 4 4 4,00 12,00 306,4 25,28 0,380
...
