EN 62561-4:2011

SLOVENSKI STANDARD
01-maj-2011
1DGRPHãþD
SIST EN 50164-4:2008
=DKWHYH]DHOHPHQWHVLVWHPD]D]DãþLWRSUHGVWUHOR/36&GHO=DKWHYH]D
SULWUGLOQHHOHPHQWH,(&VSUHPHQMHQ
Requirements for Lightning Protection System Components (LPSC) - Part 4:
Requirements for fasteners
Blitzschutzsystembauteile (LPSC) - Teil 4: Anforderungen an Leitungshalter
Composants de Système de Protection contre la Foudre (CSPF) - Partie 4: Exigences
pour les fixations de conducteur
Ta slovenski standard je istoveten z: EN 62561-4:2011
ICS:
91.120.40 =DãþLWDSUHGVWUHOR Lightning protection
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62561-4
NORME EUROPÉENNE
March 2011
EUROPÄISCHE NORM
ICS 29.020; 91.120.40 Supersedes EN 50164-4:2008

English version
Lightning protection system components (LPSC) -
Part 4: Requirements for conductor fasteners
(IEC 62561-4:2010, modified)
Composants de système de protection Blitzschutzsystembauteile (LPSC) -
contre la foudre (CSPF) - Teil 4: Anforderungen an Leitungshalter
Partie 4: Exigences pour les fixations de (IEC 62561-4:2010, modifiziert)
conducteur
(CEI 62561-4:2010, modifiée)
This European Standard was approved by CENELEC on 2011-02-21. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62561-4:2011 E

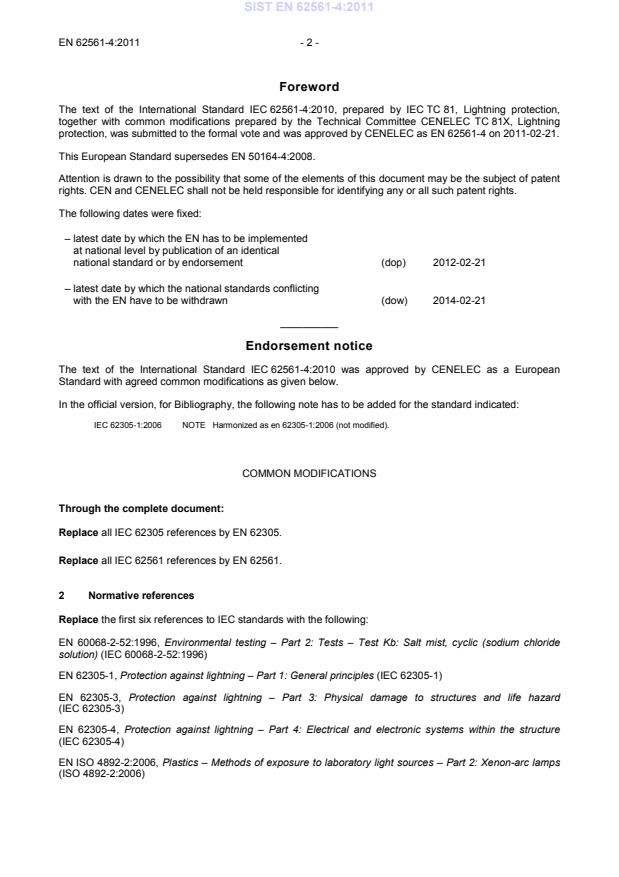

Foreword
The text of the International Standard IEC 62561-4:2010, prepared by IEC TC 81, Lightning protection,
together with common modifications prepared by the Technical Committee CENELEC TC 81X, Lightning
protection, was submitted to the formal vote and was approved by CENELEC as EN 62561-4 on 2011-02-21.
This European Standard supersedes EN 50164-4:2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2012-02-21
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-02-21
__________
Endorsement notice
The text of the International Standard IEC 62561-4:2010 was approved by CENELEC as a European
Standard with agreed common modifications as given below.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62305-1:2006 NOTE  Harmonized as en 62305-1:2006 (not modified).

COMMON MODIFICATIONS
Through the complete document:
Replace all IEC 62305 references by EN 62305.

Replace all IEC 62561 references by EN 62561.

2 Normative references
Replace the first six references to IEC standards with the following:
EN 60068-2-52:1996, Environmental testing – Part 2: Tests – Test Kb: Salt mist, cyclic (sodium chloride
solution) (IEC 60068-2-52:1996)
EN 62305-1, Protection against lightning – Part 1: General principles (IEC 62305-1)
EN 62305-3, Protection against lightning – Part 3: Physical damage to structures and life hazard
(IEC 62305-3)
EN 62305-4, Protection against lightning – Part 4: Electrical and electronic systems within the structure
(IEC 62305-4)
EN ISO 4892-2:2006, Plastics – Methods of exposure to laboratory light sources – Part 2: Xenon-arc lamps
(ISO 4892-2:2006)
- 3 - EN 62561-4:2011
EN ISO 6988:1994, Metallic and other non-organic coatings – Sulfur dioxide test with general condensation
of moisture (ISO 6988:1985)
Subclause 6.3.1
st
Delete at the end of the 1 paragraph the word “fastening” after “… for screwed…”.

Subclause 6.3.2
st
Delete at the end of the 1 paragraph the word “fastening” after “… for screwed…”.

Sublause 6.3.3
st
Delete at the end of the 1 paragraph the word “fastening” after “… for screwed…”.
rd
Replace the 3 paragraph by the paragraph:
“The specimens are deemed to have passed this part of the test if the conductor or metal parts of the
conductor fastener do not exhibit any corrosive deterioration and if its plastic parts show no sign of
disintegration and no cracks visible to normal or corrected vision.”

Subclause 8.1
st
line of the clause after “…general requirements for type test reports issued by the …”.
Add in the 1
Delete “…test reports.” at the end of the sentence.
Annex A
Clause A.1
Replace “ISO 60068-2-52:1996” by “EN 60068-2-52:1996”.

In the NOTE replace “ISO 60068-2-52:1996” by “EN 60068-2-52:1996”.

Clause A.2
Replace “ISO 6988:1985” by “EN ISO 6988:1994”.
In the NOTE replace “ISO 6988:1985” by “EN ISO 6988:1994”.

Bibliography
Add the following reference:
“EN 60068-2-75:1997, Environmental testing - Part 2-75: Tests - Test Eh: Hammer tests
(IEC 60068-2-75:1997)”.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60068-2-75 1997 Environmental testing - EN 60068-2-75 1997
Part 2-75: Tests - Test Eh: Hammer tests

ISO 4892-3 2006 Plastics - Methods of exposure to laboratory EN ISO 4892-3 2006
light sources -
Part 3: Fluorescent UV lamps
ISO 4892-4 2004 Plastics - Methods of exposure to laboratory - -
light sources -
Part 4: Open-flame carbon-arc lamps

ISO 6957 1988 Copper alloys - Ammonia test for stress - -
corrosion resistance
IEC 62561-4 ®
Edition 1.0 2010-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lightning protection system components (LPSC) –
Part 4: Requirements for conductor fasteners

Composants de système de protection contre la foudre (CSPF) –
Partie 4: Exigences pour les fixations de conducteur

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
S
CODE PRIX
ICS 29.020; 91.120.40 ISBN 978-2-88912-261-5
– 2 – 62561-4 Ó IEC:2010
CONTENTS
FOREW ORD . 3
INTRODUCTION . 5
1 Sc o pe . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Classification . 7
5 R e q uirements . 7
5.1 Ge n eral . 7
5.2 Environmental requirements . 7
5.3 Mechanical strength . 8
5.4 Installation instructions . 8
5.5 Marking . 8
6 Tests . 8
6.1 General test conditions . 8
6.2 Preparation of the specimen . 9
6.3 Environmental influence test . 9
6.4 Resistance to mechanical effects . 11
6.5 Installation instructions . 14
6.6 Marking test . 15
6.7 Construction . 15
7 Electromagnetic compatibility (EMC) . 15
8 Structure and content of the test report . 15
8.1 General . 15
8.2 Report identification . 16
8.3 Specimen description . 16
8.4 Characterization and condition of the test sample and/or test assembly . 16
8.5 Conductor . 16
8.6 Standards and references . 17
8.7 Test procedure . 17
8.8 Testing equipment, description . 17
8.9 Measuring instruments description . 17
8.10 Results and parameters recorded . 17
Annex A (normative) Environmental test for metallic conductor fasteners . 18
Annex B (normative) Environmental test for non-metallic conductor fasteners –
Resistance to ultraviolet light . 19
Annex C (normative) Flow chart of tests . 20
Bibliography . 21

Figure 1 – Basic arrangement of specimens . 10
Figure 2– Basic arrangement of lateral load test . 12
Figure 3– Typical arrangement for axial movement test . 13
Figure 4 – Impact test apparatus . 14

62561-4 Ó IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LIGHTNING PROTECTION SYSTEM COMPONENTS (LPSC) –

Part 4: Requirements for conductor fasteners

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62561-4 has been prepared by IEC technical committee 81:
Lightning protection.
The text of this standard is based on the following documents:
FDIS Report on voting
81/369/FDIS 81/379/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 62561 series, under the general title Lightning protection
system components (LPSC), can be found on the IEC website.

– 4 – 62561-4 Ó IEC:2010
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.4
62561-4 Ó IEC:2010 – 5 –
INTRODUCTION
This Part 4 of IEC 62561 deals with the requirements and tests for conductor fasteners as
being a lightning protection system component (LPSC) designed and implemented according
to the IEC 62305 series of standards.

– 6 – 62561-4 Ó IEC:2010
LIGHTNING PROTECTION SYSTEM COMPONENTS (LPSC) –

Part 4: Requirements for conductor fasteners

1 Scope
This Part 4 of IEC 62561 deals with the requirements and tests for metallic and non-metallic
conductor fasteners that are used in conjunction with the air termination, down conductor and
earth termination system.
This standard does not cover the fixing of conductor fasteners to the fabric/membrane/gravel
roofing of structures due to the vast number and types used in modern day construction.
LPSC may also be suitable for use in hazardous atmospheres. Regard should then be taken
of the extra requirements necessary for the components to be installed in such conditions.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60068-2-52:1996, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic
(sodium chloride solution)
IEC 60068-2-75:1997, Environmental testing – Part 2: Tests – Test Eh: Hammer tests
IEC 62305 (all parts), Protection against lightning
IEC 62305-3:2006, Protection against lightning – Part 3: Physical damage to structures and
life hazard
ISO 4892-2:2006, Plastics – Methods of exposure to laboratory light sources – Part 2: Xenon
– arc lamps
ISO 4892-3:2006, Plastics – Methods of exposure to laboratory light sources – Part 3:
Fluorescent UV lamps
ISO 4892-4:2004, Plastics – Methods of exposure to laboratory light sources – Part 4: Open-
flame, carbon-arc lamps
ISO 6988:1985, Metallic and other non-organic coatings – Sulphur dioxide test with general
condensation of moisture
ISO 6957:1988, Copper alloys – Ammonia test for stress corrosion resistance
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.
___________
A second edition is in preparation.

62561-4 Ó IEC:2010 – 7 –
3.1
conductor fastener
metallic, non-metallic or composite component designed to retain and support the air
termination, down conductor and earth termination system, installed at intervals along the
length of the conductors
4 Classification
Conductor fasteners are classified as follows:
a) According to material
– metallic (e.g. hot dip galvanized steel, copper, aluminium, stainless steel);
– non-metallic (e.g. PVC, plastics);
– composite (combination of metal and plastic);
b) According to fixing arrangement of the conductor within the conductor fastener
– with screws;
– without screws (e.g. clips, springs);
c) According to conductor clamping arrangement
– conductor fasteners that are designed to clamp the conductor;
– conductor fasteners that are designed to clamp but allow axial movement of the conductor.
5 Requirements
5.1 General
The conductor fastener shall carry out its function of clamping the conductor in an acceptable
and safe manner when subjected to mechanical influences, lightning discharge stress and
environmental influences.
Conductor fasteners shall comply with the tests given in Clause 6. The material of the
conductor fastener shall be compatible with the conductor it is fastening and the surface
material onto which it is mounted.
NOTE 1 Certain extreme environmental conditions make the choice of non-metallic conductor fasteners
unsuitable. Specific recommendations should be provided by manufacturers as to their suitability in varying
environments.
NOTE 2 Conductor fasteners should be so designed and constructed that safe handling is ensured, that retention
and support for the conductor is provided, and that in normal use their performance is reliable and without danger
to persons and the surrounding.
5.2 Environmental requirements
5.2.1 Corrosion resistance
Metallic or composite conductor fasteners shall withstand corrosion effects.
Compliance is checked following the manufacturer’s declaration for the classification of the
conductor fastener in accordance with Clause 4 and by test specified in 6.3.2 and 6.3.4.
5.2.2 UV resistance
Non-metallic and composite conductor fasteners shall withstand UV effects.
Compliance is checked following the manufacturer’s declaration for the classification of the
conductor fastener in accordance with Clause 4 and by test specified in 6.3.3 and 6.3.4.

– 8 – 62561-4 Ó IEC:2010
5.3 Mechanical strength
5.3.1 Perpendicular and axial loads
The design of the conductor fastener shall be such that it carries the perpendicular loads
caused by the weight of the conductor, snow, ice and wind and axial loads caused by the
thermal expansion–contraction of the conductor and its weight.
Compliance is checked following the manufacturer’s declaration for the classification of the
conductor fastener in accordance with Clause 4 and by test specified in 6.4.1 and 6.4.2.
5.3.2 Impact tests
Conductor fasteners shall be so designed and constructed to withstand impact stresses
caused accidentally.
Compliance is checked by test specified in 6.4.3.
5.4 Installation instructions
The manufacturer or supplier of the conductor fastener shall provide adequate information in
his literature to ensure that the installer can select and install the component in a suitable and
safe manner, in accordance with IEC 62305-3.
Compliance is checked by in
...
