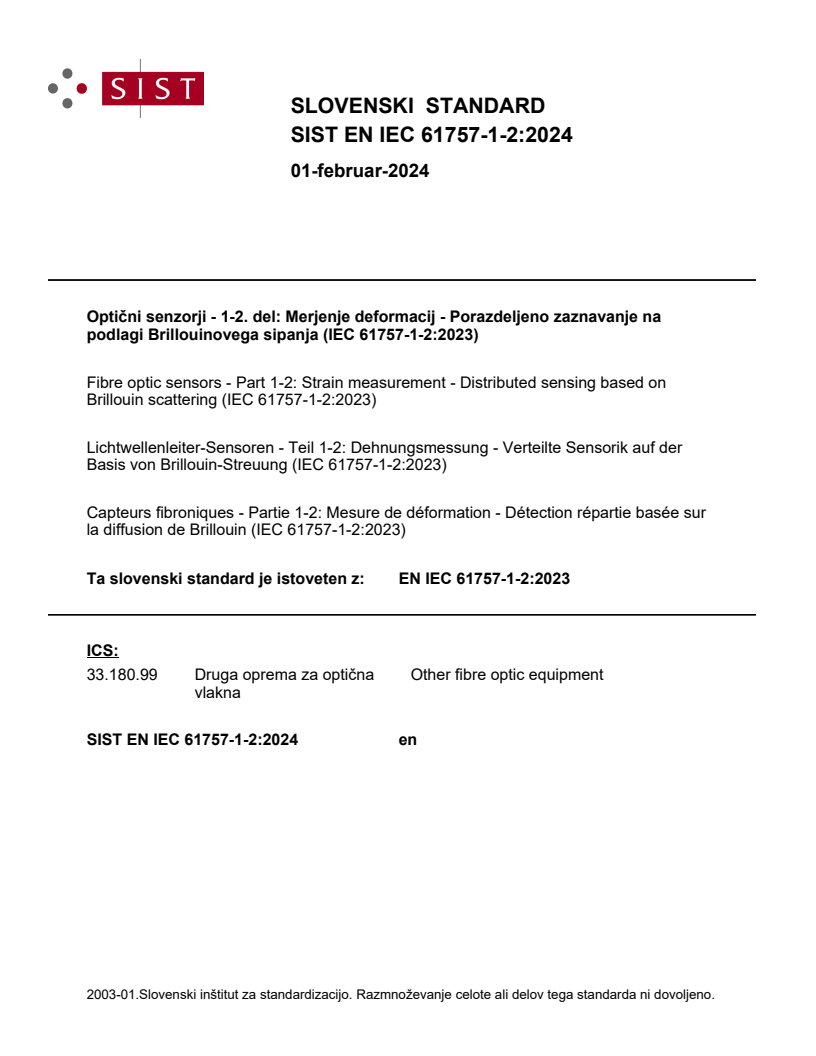

EN IEC 61757-1-2:2023

SLOVENSKI STANDARD
01-februar-2024
Optični senzorji - 1-2. del: Merjenje deformacij - Porazdeljeno zaznavanje na
podlagi Brillouinovega sipanja (IEC 61757-1-2:2023)
Fibre optic sensors - Part 1-2: Strain measurement - Distributed sensing based on
Brillouin scattering (IEC 61757-1-2:2023)
Lichtwellenleiter-Sensoren - Teil 1-2: Dehnungsmessung - Verteilte Sensorik auf der
Basis von Brillouin-Streuung (IEC 61757-1-2:2023)
Capteurs fibroniques - Partie 1-2: Mesure de déformation - Détection répartie basée sur
la diffusion de Brillouin (IEC 61757-1-2:2023)
Ta slovenski standard je istoveten z: EN IEC 61757-1-2:2023
ICS:
33.180.99 Druga oprema za optična Other fibre optic equipment
vlakna
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

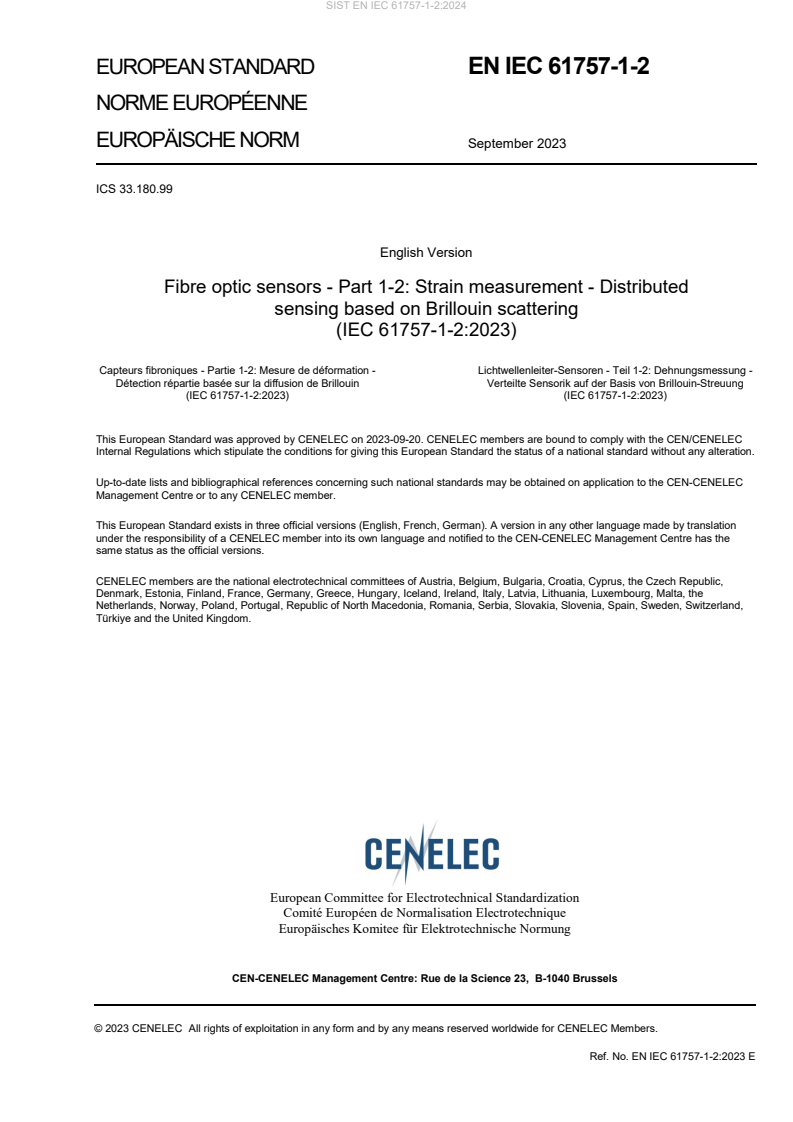

EUROPEAN STANDARD EN IEC 61757-1-2

NORME EUROPÉENNE
EUROPÄISCHE NORM September 2023
ICS 33.180.99
English Version
Fibre optic sensors - Part 1-2: Strain measurement - Distributed
sensing based on Brillouin scattering
(IEC 61757-1-2:2023)
Capteurs fibroniques - Partie 1-2: Mesure de déformation - Lichtwellenleiter-Sensoren - Teil 1-2: Dehnungsmessung -
Détection répartie basée sur la diffusion de Brillouin Verteilte Sensorik auf der Basis von Brillouin-Streuung
(IEC 61757-1-2:2023) (IEC 61757-1-2:2023)
This European Standard was approved by CENELEC on 2023-09-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61757-1-2:2023 E

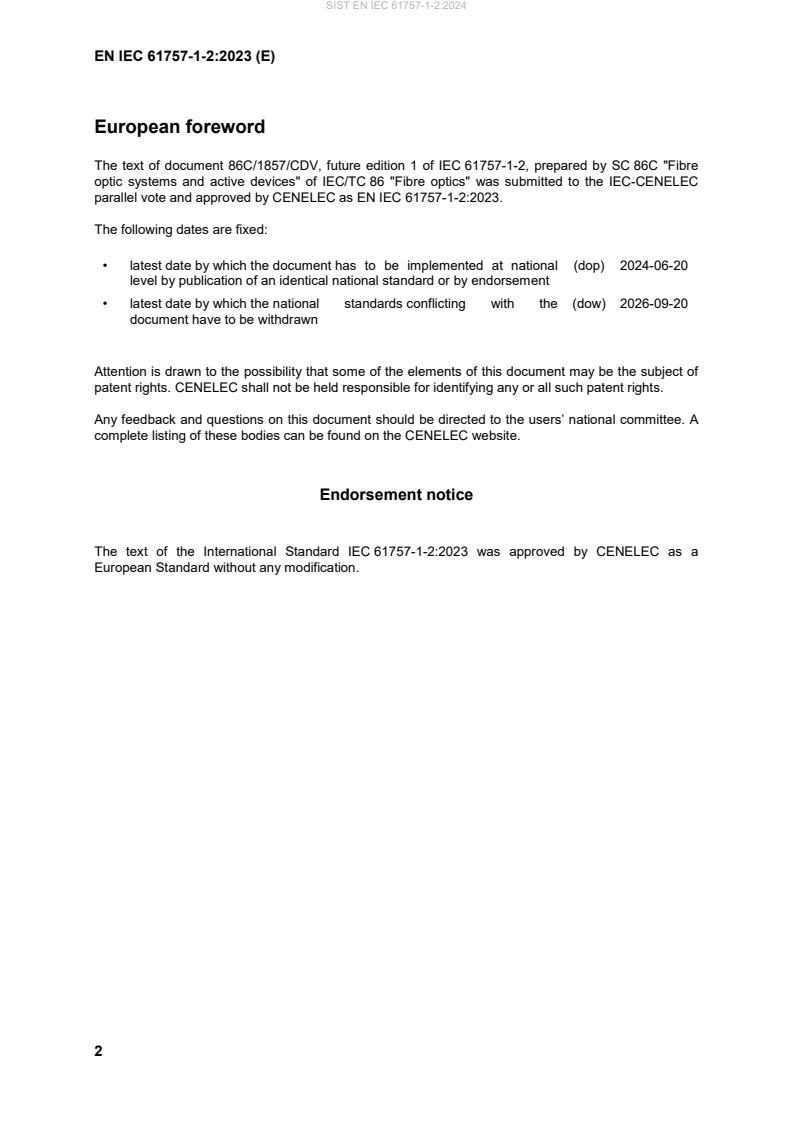

European foreword
The text of document 86C/1857/CDV, future edition 1 of IEC 61757-1-2, prepared by SC 86C "Fibre
optic systems and active devices" of IEC/TC 86 "Fibre optics" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 61757-1-2:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-06-20
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-09-20
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61757-1-2:2023 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61757 2018 Fibre optic sensors - Generic specification EN IEC 61757 2018
IEC 61757-2-2 2016 Fibre optic sensors - Part 2-2: Temperature EN 61757-2-2 2017
measurement - Distributed sensing
IEC 61757-3-2 2022 Fibre optic sensors - Part 3-2: Acoustic EN IEC 61757-3-2 2022
sensing and vibration measurement -
Distributed sensing
ISO/IEC Guide 98-3 - Uncertainty of measurement - Part 3: - -
Guide to the expression of uncertainty in
measurement (GUM:1995)
IEC 61757-1-2 ®
Edition 1.0 2023-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic sensors –
Part 1-2: Strain measurement – Distributed sensing based on Brillouin scattering

Capteurs fibroniques –
Partie 1-2: Mesure de déformation – Détection répartie basée sur la diffusion de

Brillouin
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.99  ISBN 978-2-8322-7396-8

– 2 – IEC 61757-1-2:2023 © IEC 2023
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, abbreviated terms and symbols . 6
3.1 Terms and definitions . 6
3.2 Abbreviated terms . 10
3.3 Symbols . 11
4 General test setups for measurement of performance parameters . 11
4.1 General and test setup requirements . 11
4.2 General documentation requirements . 16
5 Measurement procedures for performance parameters . 16
5.1 Strain measurement error . 16
5.1.1 Test procedure and conditions . 16
5.1.2 Parameter calculation and reporting . 17
5.2 Spatial resolution . 17
5.2.1 Test procedure and conditions . 17
5.2.2 Parameter calculation and reporting . 18
5.3 Strain repeatability . 18
5.3.1 Test procedure and conditions . 18
5.3.2 Parameter calculation and reporting . 18
5.4 Spatial strain uncertainty . 19
5.4.1 Test procedure and conditions . 19
5.4.2 Parameter calculation and reporting . 19
5.5 Warm-up time . 20
5.5.1 Test procedure and conditions . 20
5.5.2 Parameter calculation and reporting . 20
5.6 System performance with altered attenuation . 20
5.6.1 General . 20
5.6.2 At distance measurement range . 21
5.6.3 At short distance with high loss. 22
Bibliography . 24

Figure 1 – Optical fibre strain profile and related strain sample points. 8
Figure 2 – General test setup for single-ended configuration . 12
Figure 3 – General test setup for loop configuration . 13
Figure 4 – Measured versus applied strain (typical curve) . 15
Figure 5 – Brillouin frequency shift as a function of elongation of a standard
telecommunication fibre . 15
Figure 6 – Performance evaluation at distance measurement range . 21
Figure 7 – Performance evaluation at short distance with high loss . 22

IEC 61757-1-2:2023 © IEC 2023 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC SENSORS –
Part 1-2: Strain measurement –
Distributed sensing based on Brillouin scattering

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61757-1-2 has been prepared by subcommittee 86C: Fibre optic systems and active
devices, of IEC technical committee 86: Fibre optics. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
86C/1857/CDV 86C/1872/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 61757-1-2:2023 © IEC 2023
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 61757 series, published under the general title Fibre optic sensors,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

IEC 61757-1-2:2023 © IEC 2023 – 5 –
INTRODUCTION
This document is part of the IEC 61757 series, which is dedicated to fibre optic sensors. Generic
specifications for fibre optic sensors are defined in IEC 61757.
The individual parts of the IEC 61757 series are numbered as IEC 61757-M-T, where M denotes
the measure and T the technology of the fibre optic sensor. The IEC 61757-1-T series is
concerned with strain measurements.

– 6 – IEC 61757-1-2:2023 © IEC 2023
FIBRE OPTIC SENSORS –
Part 1-2: Strain measurement –
Distributed sensing based on Brillouin scattering

1 Scope
This part of IEC 61757 defines detailed specifications for distributed strain measurements with
a fibre optic sensor, also known as "fibre optic distributed strain sensing". It is applicable to
distributed strain sensing systems (DSS) based on spontaneous or stimulated Brillouin
scattering in the optical fibre sensor (strain sensitive element), that is, to sensors capable of
measuring absolute strain.
This document specifies the most important DSS performance parameters and defines the
procedures for their determination.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61757:2018, Fibre optic sensors – Generic specification
IEC 61757-2-2:2016, Fibre optic sensors – Part 2-2: Temperature measurement – Distributed
sensing
IEC 61757-3-2:2022, Fibre optic sensors – Part 3-2: Acoustic sensing and vibration
measurement – Distributed sensing
ISO/IEC Guide 98-3, Uncertainty of measurement – Part 3: Guide to the expression of
uncertainty in measurement (GUM:1995)
3 Terms, definitions, abbreviated terms and symbols
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61757,
IEC 61757‑2‑2, IEC 61757-3-2, and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
NOTE For the following definitions, the relevant test procedures and parameters are defined in Clause 4.

IEC 61757-1-2:2023 © IEC 2023 – 7 –
3.1.1
distributed fibre optic strain sensing system
DSS
measurement set-up consisting of a distributed fibre optic sensor connected to an interrogation
unit, including processor, data archive, and user interface, which provides a spatially resolved
strain measurement
[SOURCE: IEC 61757-3-2:2022, 3.1.2, modified − adapted to distributed strain measurement]
3.1.2
distance measurement range
maximum distance from the DSS interrogation unit output connector along the fibre optic sensor
within which the DSS measures strain with specified measurement performance under defined
conditions
Note 1 to entry: Defined conditions are spatial resolution (3.1.8), spatial strain uncertainty (3.1.9) and measurement
time (3.1.5).
Note 2 to entry: This supporting parameter is closely related to the total accumulated optical loss (one way)
tolerated by the interrogation unit without affecting specified measurement performance. In test cases used to prove
or verify the reported specifications, the total fibre length shall be equal to or greater than the specified distance
measurement range, for the tolerated total accumulated optical loss.
Note 3 to entry: The distance measurement range is usually expressed in km.
Note 4 to entry: For fibre loop configurations, the distance measurement range is given by half the fibre length
between the output and input connector of the interrogation unit.
[SOURCE: IEC 61757-2-2:2016, 3.2, and ISO/IEC Guide 99:2007, 4.7, modified − adapted to
distributed strain measurement]
3.1.3
strained spot
ΔL
length of fibre optic sensor that experiences a small elongation (δL), which causes strain that
is significantly bigger than the strain repeatability of the interrogation unit and which is
confirmed by a reference strain measurement
Note 1 to entry: The applied strain ε is equal to (δL/ΔL).
Note 2 to entry: It is useful to define strain in με, where 1 με corresponds to a δL of 1 μm over a ΔL of 1 m.
[SOURCE: IEC 61757-2-2:2016, 3.6, modified − adapted to distributed strain measurement]
3.1.4
location
L
optical distance from the DSS interrogation unit output connector to a desired strain sample
point along the fibre optic sensor
Note 1 to entry: The farthest location from the DSS interrogation unit output connector for the particular test is
quantified as L km and is often chosen to be the same as the distance measurement range for purposes of
F,long
comparing the measurement results with quoted specifications.
Note 2 to entry: The location is usually expressed in km.
[SOURCE: IEC 61757-2-2:2016, 3.7, modified − adapted to distributed strain measurement]

– 8 – IEC 61757-1-2:2023 © IEC 2023
3.1.5
measurement time
time between independent strain measurements when making successive measurements on a
single fibre optic sensor
Note 1 to entry: Equivalently, it is the time interval between successive strain trace timestamps under these
conditions.
Note 2 to entry: This parameter includes acquisition time and processing time for the measured data. This
parameter is typically selectable by the user in some limited fashion. Multiple independent strain measurements may
be averaged together to provide an overall measurement time.
[SOURCE: IEC 61757-2-2:2016, 3.8, modified − adapted to distributed strain measurement]
3.1.6
point defect
local deviation of a fibre optic sensor from its nominal optical and mechanical properties
occurring at a single location, or over a length substantially less than the DSS spatial resolution
Note 1 to entry: The definition of a point defect encompasses a wide range of situations, which can produce similar
effects on the strain trace. Examples include
– a point loss, like a bad fibre splice,
– a back reflection (or return loss), as can be introduced by a fibre connector,
– a localized region of high loss, such as a bend or kink in the fibre, and
– a physical discontinuity in the fibre, like a splice between two fibres of different core diameters.
[SOURCE: IEC 61757-2-2:2016, 3.9, modified − adapted to distributed strain measurement]
3.1.7
sample spacing
distance between two consecutive strain sample points in a single strain trace
Note 1 to entry: Sample spacing can be a user-selectable parameter in the interrogation unit.
Note 2 to entry: The sample spacing is usually expressed in m.
Note 3 to entry: See Figure 1.

Figure 1 – Optical fibre strain profile and related strain sample points
[SOURCE: IEC 61757-2-2:2016, 3.11, modified − adapted to distributed strain measurement]

IEC 61757-1-2:2023 © IEC 2023 – 9 –
3.1.8
spatial resolution
smallest length of strain-affected fibre optic sensor for which a DSS can measure and confirm
the reference strain of a defined strained spot within the specified strain measurement error of
the DSS
Note 1 to entry: The spatial resolution is usually expressed in m.
[SOURCE: IEC 61757-2-2:2016, 3.12, modified − adapted to distributed strain measurement]
3.1.9
spatial strain uncertainty
uncertainty of the location of strain data in a single strain trace, expressed by twice the standard
deviation of a specified number of adjacent strain sample points, with the fibre optic sensor held
at constant strain and temperature
Note 1 to entry: Due to a potential cross-sensitivity of DSS to temperature, it can be necessary to stabilize the
temperature of the fibre optic sensor.
Note 2 to entry: The spatial strain uncertainty is usually expressed in units of με and noted as a tolerance
(e.g. ±xx με), where 1 με corresponds to a δL of 1 μm over a ΔL of 1 m.
[SOURCE: IEC 61757-2-2:2016, 3.13, modified − adapted to distributed strain measurement]
3.1.10
strain dead zone
limited zone of a strain trace, where the strain sample points deviate from the undisturbed parts
of the trace by a specified limit due to a point defect
Note 1 to entry: The strain dead zone is usually expressed in m.
[SOURCE: IEC 61757-2-2:2016, 3.14, modified − adapted to distributed strain measurement]
3.1.11
strain measurement error
maximum difference between a centred and uniformly weighted moving average of the
measured strain and a reference strain for all data points of the fibre optic sensor over the full
operating temperature range and all acquisition times
Note 1 to entry: Single value (worst case) is expressed like a tolerance in units of με (e.g. ±xx με).
Note 2 to entry: The number of elements used for the moving average is defined later in the document. In practical
applications, other methods of smoothing might be applicable.
[SOURCE: IEC 61757-2-2:2016, 3.15, modified − adapted to distributed strain measurement]
3.1.12
strain repeatability
precision of strain data based on repeated strain traces at a given location expressed by twice
the standard deviation of corresponding strain sample points in each strain trace, with the fibre
optic sensor held at constant strain and temperature
Note 1 to entry: The strain repeatability is expressed like a tolerance in units of με (e.g. ±xx με).
[SOURCE: IEC 61757-2-2:2016, 3.16, modified − adapted to distributed strain measurement]

– 10 – IEC 61757-1-2:2023 © IEC 2023
3.1.13
strain sample point
measured strain value associated with a single point at a known location along a fibre optic
sensor
Note 1 to entry: Due to signal averaging effects, the measured value represents the strain along a very small section
of the fibre optic sensor that includes the strain sample point.
Note 2 to entry: See Figure 1.
[SOURCE: IEC 61757-2-2:2016, 3.17, modified − adapted to distributed strain measurement]
3.1.14
strain trace
set of strain sample points distributed along a fibre optic sensor and spaced by the sample
spacing
Note 1 to entry: All sample points are associated with a common time of measurement, often called "trace
timestamp". The measured values represent the strain during a time period that includes the timestamp.
Note 2 to entry: All sample points in a strain trace are measured values produced by the DSS, and not interpolated
or smoothed values produced by subsequent processing outside the interrogation unit.
[SOURCE: IEC 61757-2-2:2016, 3.18, modified − adapted to distributed strain measurement]
3.1.15
total fibre length
L
F,tot
distance from the DSS interrogation unit output connector to the final end of the fibre optic
sensor
Note 1 to entry: The final end of the fibre optic sensor can be either a purposely cut or terminated end of the fibre,
physically located far from the interrogation unit (in a single-ended configuration), or the end of a loop consisting of
a connector that is connected to the same interrogation unit (in a loop configuration).
Note 2 to entry: This parameter is either equal to or greater than the distance measurement range and usually
expressed in km.
[SOURCE: IEC 61757-2-2:2016, 3.19, modified − adapted to distributed strain measurement]
3.1.16
warm-up time
duration between the instant after which the power supply of the DSS interrogation unit is
energized and the instant when the interrogation unit may be used as specified by the
manufacturer
Note 1 to entry: Warm-up time is usually expressed in seconds or minutes.
Note 2 to entry: The warm-up time helps to upload software and to stabilize operating temperatures of optical and
electronic components.
[SOURCE: IEC 60050-311:2001, 311-03-18, modified − adapted to distributed strain
measurement]
3.2 Abbreviated terms
DSS distributed fibre optic strain sensing system
FAT factory acceptance test
LVDT linear variable differential transformer
VOA variable optical attenuator

IEC 61757-1-2:2023 © IEC 2023 – 11 –
3.3 Symbols
A cross-sectional area
E Young’s modulus
F force
L optical distance from the output connector to a desired strain sample point
L , L fibre lengths
F,opt F,short
L , L fibre lengths
F,loop F,long
L total fibre length
F,tot
ΔL length of fibre optic sensor to be strained (strained spot)
δL small change in length of ΔL
N, n number of traces, number of data points
S standard deviation
T temperature
T , T , T minimum, typical, and maximum DSS operating temperature
low op high
T ambient operating temperature of the strain test section
STC
ε strain
ε strain repeatability
rep
ε spatial strain uncertainty
unc
σ stress
4 General test setups for measureme
...
