EN 60282-1:2006

SLOVENSKI SIST EN 60282-1:2006

STANDARD
oct 2006
Visokonapetostne varovalke – 1. del: Tokovno omejilne varovalke (IEC 60282-
1:2005)
High-voltage fuses – Part 1: Current-limiting fuses (IEC 60282-1:2005)
ICS 29.120.50 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
EN 60282-1
NORME EUROPÉENNE
May 2006
EUROPÄISCHE NORM
ICS 29.120.50 Supersedes EN 60282-1:2002

English version
High-voltage fuses
Part 1: Current-limiting fuses
(IEC 60282-1:2005)
Fusibles à haute tension Hochspannungssicherungen
Partie 1: Fusibles limiteurs de courant Teil 1: Strombegrenzende Sicherungen
(CEI 60282-1:2005) (IEC 60282-1:2005)

This European Standard was approved by CENELEC on 2006-03-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60282-1:2006 E

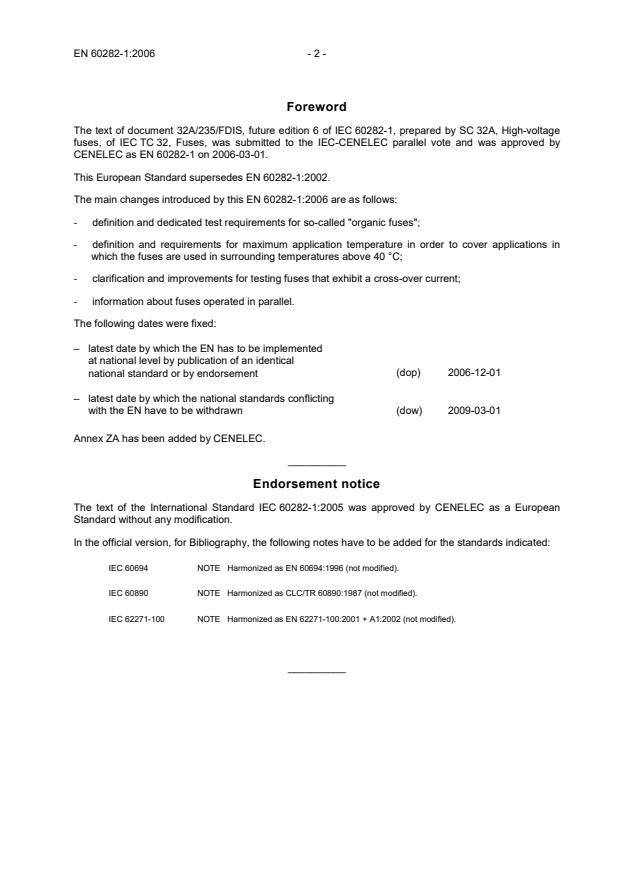

Foreword
The text of document 32A/235/FDIS, future edition 6 of IEC 60282-1, prepared by SC 32A, High-voltage
fuses, of IEC TC 32, Fuses, was submitted to the IEC-CENELEC parallel vote and was approved by
CENELEC as EN 60282-1 on 2006-03-01.
This European Standard supersedes EN 60282-1:2002.
The main changes introduced by this EN 60282-1:2006 are as follows:
- definition and dedicated test requirements for so-called "organic fuses";
- definition and requirements for maximum application temperature in order to cover applications in
which the fuses are used in surrounding temperatures above 40 °C;
- clarification and improvements for testing fuses that exhibit a cross-over current;
- information about fuses operated in parallel.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-12-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-03-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60282-1:2005 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60694 NOTE  Harmonized as EN 60694:1996 (not modified).
IEC 60890 NOTE  Harmonized as CLC/TR 60890:1987 (not modified).
IEC 62271-100 NOTE  Harmonized as EN 62271-100:2001 + A1:2002 (not modified).

__________
- 3 - EN 60282-1:2006
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60060-1 1989 High-voltage test techniques HD 588.1 S1 1991
+ corr. March 1990 Part 1: General definitions and test
requirements
1)
IEC 60071-1 1993 Insulation co-ordination EN 60071-1 1995
Part 1: Definitions, principles and rules

IEC 60085 2004 Electrical insulation - Thermal classification EN 60085 2004

IEC 60265-1 1998 High-voltage switches EN 60265-1 1998
Part 1: Switches for rated voltages above
1 kV and less than 52 kV
IEC 60549 1976 High-voltage fuses for the external protection - -
of shunt power capacitors
IEC 60644 1979 Specification for high-voltage fuse-links for EN 60644 1993
motor circuit applications
IEC 60787 1983 Application guide for the selection of fuse-- -
links of high-voltage fuses for transformer
circuit applications
IEC 62271-105 2002 High-voltage switchgear and controlgear EN 62271-105 2003
Part 105: Alternating current switch-fuse
combinations
ISO 148-2 1998 Metallic materials - -
Charpy pendulum impact test
Part 2: Verification of test machines

ISO 179 Series Plastics - Determination of Charpy impact EN ISO 179 Series
properties
1)
EN 60071-1 is superseded by EN 60071-1:2006, which is based on IEC 60071-1:2006.

NORME CEI
INTERNATIONALE
IEC
60282-1
INTERNATIONAL
Sixième édition
STANDARD
Sixth edition
2005-11
Fusibles à haute tension –
Partie 1:
Fusibles limiteurs de courant
High-voltage fuses –
Part 1:
Current-limiting fuses
© IEC 2005 Droits de reproduction réservés ⎯ Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
XC
Commission Electrotechnique Internationale PRICE CODE
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
Pour prix, voir catalogue en vigueur
For price, see current catalogue

60282-1 ¤ IEC:2005 – 3 –
CONTENTS
FOREWORD.9
1 General .13
1.1 Scope.13
1.2 Normative references .13
2 Normal and special service conditions.15
2.1 Normal service conditions.15
2.2 Other service conditions .17
2.3 Special service conditions.17
2.4 Environmental behaviour .17
3 Terms and definitions .17
3.1 Electrical characteristics .17
3.2 Fuses and their component parts .25
3.3 Additional terms.29
4 Ratings and characteristics .31
4.1 General .31
4.2 Rated voltage .33
4.3 Rated insulation level (of a fuse-base) .33
4.4 Rated frequency .37
4.5 Rated current of the fuse-base.37
4.6 Rated current of the fuse-link.37
4.7 Temperature-rise limits.37
4.8 Rated breaking capacity.41
4.9 Limits of switching voltage .41
4.10 Rated transient recovery voltage (rated TRV).45
4.11 Time-current characteristics.51
4.12 Cut-off characteristic .51
4.13 I t characteristics .53
4.14 Mechanical characteristics of strikers.53
4.15 Special requirement for back-up fuses intended for use in switch-fuse
combination according to IEC 62271-105 .55
5 Design, construction and performance .55
5.1 General requirements with respect to fuse operation .55
5.2 Identifying markings.57
5.3 Dimensions .59
6 Type tests.59
6.1 Conditions for making the tests.59
6.2 List of type tests .61
6.3 Common test practices for all type tests.61
6.4 Dielectric tests.63
6.5 Temperature-rise tests and power-dissipation measurement .67
6.6 Breaking tests .71
6.7 Tests for time-current characteristics .99
6.8 Tests of strikers. 101
6.9 Electromagnetic compatibility (EMC) . 105

60282-1 ¤ IEC:2005 – 5 –
7 Special tests.105
7.1 General . 105
7.2 List of special tests . 107
7.3 Thermal shock tests . 107
7.4 Power-dissipation tests for fuses not intended for use in enclosures. 107
7.5 Waterproof test (ingress of moisture) . 109
7.6 Tests for back-up fuses for use in switch-fuse combination of IEC 62271-105 . 109
7.7 Oil-tightness tests. 111
8 Routine tests . 111
9 Application guide . 111
9.1 Object . 111
9.2 General . 113
9.3 Application. 113
9.4 Operation . 123
9.5 Disposal . 125
Annex A (normative) Method of drawing the envelope of the prospective and transient
recovery voltage of a circuit and determining the representative parameters . 127
Annex B (informative) Reasons which led to the choice of TRV values for Test Duties
1, 2 and 3 . 131
Annex C (informative) Preferred arrangements for temperature-rise tests of oil-tight
fuse-links for switchgear.
...
