Welding consumables - Wire electrodes, wires, rods and deposits for gas shielded arc welding of high strength steels - Classification (ISO 16834:2012)

ISO 16834:2012 specifies requirements for classification of wire electrodes, wires, rods and all-weld metal deposits in the as-welded condition and in the post-weld heat-treated (PWHT) condition for gas shielded metal arc welding and tungsten inert-gas welding of high-strength steels with a minimum yield strength greater than 500 MPa, or a minimum tensile strength greater than 570 MPa. One wire electrode can be tested and classified with different shielding gases.
ISO 16834:2012 is a combined specification providing for classification utilizing a system based upon the yield strength and the average impact energy of 47 J of all-weld metal, or utilizing a system based upon the tensile strength and the average impact energy of 27 J of all-weld metal.

Schweißzusätze - Drahtelektroden, Drähte, Stäbe und Schweißgut zum Schutzgasschweißen von hochfesten Stählen - Einteilung (ISO 16834:2012)

Diese Internationale Norm legt Anforderungen für die Einteilung von Drahtelektroden, Drähten, Stäben und dem reinen Schweißgut im Schweißzustand und nach einer Wärmebehandlung (PWHT) für das Metall-Schutzgasschweißen und Wolfram-Inertgasschweißen von hochfesten Stählen mit einer Mindeststreckgrenze über 500 MPa oder einer Mindestzugfestigkeit über 570 MPa fest. Eine Drahtelektrode kann mit verschiedenen Schutzgasen geprüft und eingestuft werden.
Diese Internationale Norm benutzt zur Einteilung ein kombiniertes System, das auf der Einteilung nach der Streckgrenze und der durchschnittlichen Kerbschlagarbeit des reinen Schweißgutes von 47 J beruht oder nach der Zugfestigkeit und der durchschnittlichen Kerbschlagarbeit von 27 J.
e) Abschnitte, Unterabschnitte und Tabellen mit dem zusätzlichen Buchstaben A sind nur für Drahtelektroden, Drähte, Stäbe und Schweißgut anwendbar, die nach dem System eingeteilt sind, das auf Anforderungen an die Streckgrenze und an die durchschnittliche Kerbschlagarbeit von 47 J des reinen Schweißgutes nach dieser Internationalen Norm beruht.
f) Abschnitte, Unterabschnitte und Tabellen mit dem zusätzlichen Buchstaben B sind nur für Drahtelektroden, Drähte, Stäbe und Schweißgut anwendbar, die nach dem System eingeteilt sind, das auf Anforderungen an die Zugfestigkeit und an die durchschnittliche Kerbschlagarbeit von 27 J des reinen Schweißgutes nach dieser Internationalen Norm beruht.
g) Abschnitte, Unterabschnitte und Tabellen ohne zusätzlichen Buchstaben A oder B sind für alle nach dieser Norm eingeteilten Drahtelektroden, Drähte, Stäbe und Schweißgut anwendbar.

Produits consommables pour le soudage - Fils-électrodes, fils, baguettes et dépôts pour le soudage à l'arc sous flux gazeux des aciers à haute résistance - Classification (ISO 16834:2012)

L'ISO 16834:2012 spécifie les exigences relatives à la classification des fils-électrodes, des fils, des baguettes et du métal fondu à l'état brut de soudage ou après traitement thermique après soudage (PWHT) pour le soudage à l'arc sous protection gazeuse et le soudage TIG des aciers à haute résistance ayant une limite d'élasticité minimale supérieure à 500 MPa, ou une limite de résistance à la traction de 570 MPa. Un fil-électrode peut être soumis aux essais et classifié en utilisant différents gaz de protection.
L'ISO 16834:2012 propose une spécification mixte permettant une classification utilisant soit un système basé sur la limite d'élasticité et l'énergie de rupture moyenne de 47 J pour le métal fondu hors dilution, soit un système basé sur la résistance à la traction et l'énergie de rupture moyenne de 27 J pour le métal fondu hors dilution.

Dodajni materiali za varjenje - Žične elektrode, žice, palice in čisti vari za varjenje visokotrdnostnih jekel v zaščiti plinov - Razvrstitev (ISO 16834:2012)

Ta mednarodni standard določa zahteve za razvrstitev žičnih elektrod, žic, palic in kovinskih čistih varov v varjenem stanju ali stanju po varjenju s toplotno obdelavo (PWHT) za obločno varjenje v zaščitnih plinih in varjenje po TIG visokotrdnih jekel z mejo prožnosti, večjo od 500 MPa, ali natezno trdnostjo, večjo od 570 MPa. Eno žično elektrodo je mogoče preskušati in razvrstiti v različnih zaščitnih plinih. Ta mednarodni standard je kombinirana specifikacija, ki določa razvrstitev po sistemu, ki temelji na meji prožnosti in povprečni energiji udarca, ki znaša 47 J, za čiste vare, ali po sistemu, ki temelji na natezni trdnosti in povprečni energiji udarca, ki znaša 27 J, za čiste vare. e) Točke, podtočke in preglednice z dodano črko »A« se uporabljajo samo za žične elektrode, žice, palice in vare, ki so razvrščeni po sistemu, ki temelji na meji prožnosti in povprečni energiji udarca, ki znaša 47 J, za čiste vare v skladu s tem mednarodnim standardom. f) Točke, podtočke in preglednice z dodano črko »B« se uporabljajo samo za žične elektrode, žice, palice in vare, ki so razvrščeni po sistemu, ki temelji na natezni trdnosti in povprečni energiji udarca, ki znaša 27 J, za čiste vare v skladu s tem mednarodnim standardom. g) Točke, podtočke in preglednice brez dodane črke »A« ali »B« se uporabljajo za žične elektrode, žice, palice in vare, ki so razvrščeni v skladu s tem mednarodnim standardom.

General Information

Status
Published
Publication Date
30-Apr-2012
Withdrawal Date
29-Nov-2012
Technical Committee
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
01-May-2012
Completion Date
01-May-2012

Relations

Buy Standard

Standard
EN ISO 16834:2012
English language
22 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

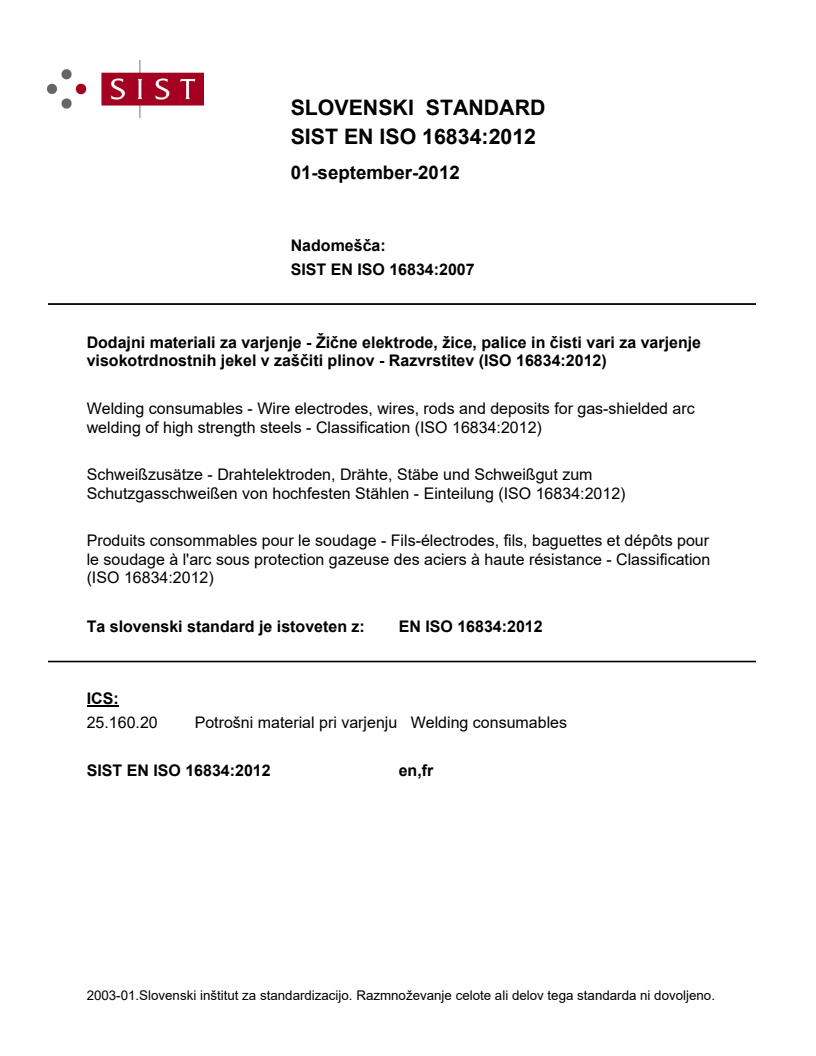

SLOVENSKI STANDARD
01-september-2012
1DGRPHãþD
SIST EN ISO 16834:2007
'RGDMQLPDWHULDOL]DYDUMHQMHäLþQHHOHNWURGHåLFHSDOLFHLQþLVWLYDUL]DYDUMHQMH
YLVRNRWUGQRVWQLKMHNHOY]DãþLWLSOLQRY5D]YUVWLWHY ,62
Welding consumables - Wire electrodes, wires, rods and deposits for gas-shielded arc
welding of high strength steels - Classification (ISO 16834:2012)
Schweißzusätze - Drahtelektroden, Drähte, Stäbe und Schweißgut zum
Schutzgasschweißen von hochfesten Stählen - Einteilung (ISO 16834:2012)
Produits consommables pour le soudage - Fils-électrodes, fils, baguettes et dépôts pour
le soudage à l'arc sous protection gazeuse des aciers à haute résistance - Classification
(ISO 16834:2012)
Ta slovenski standard je istoveten z: EN ISO 16834:2012
ICS:
25.160.20 Potrošni material pri varjenju Welding consumables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

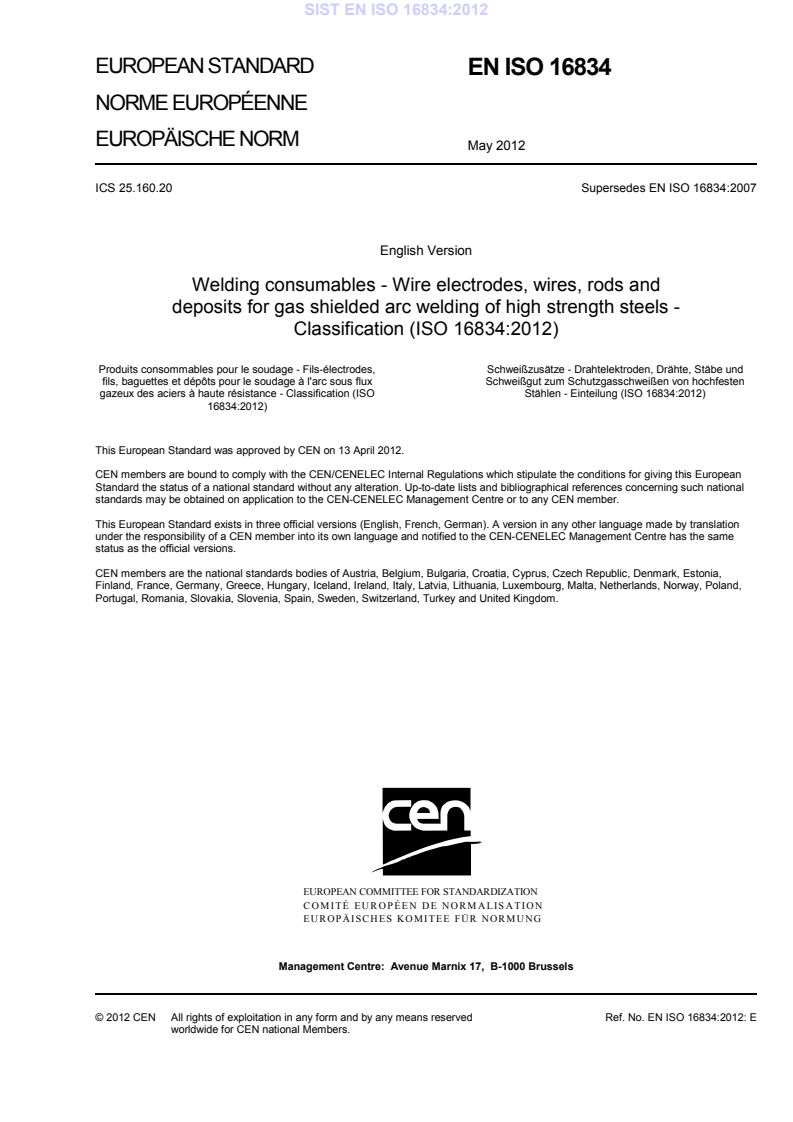

EUROPEAN STANDARD
EN ISO 16834
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2012
ICS 25.160.20 Supersedes EN ISO 16834:2007
English Version
Welding consumables - Wire electrodes, wires, rods and
deposits for gas shielded arc welding of high strength steels -
Classification (ISO 16834:2012)
Produits consommables pour le soudage - Fils-électrodes, Schweißzusätze - Drahtelektroden, Drähte, Stäbe und
fils, baguettes et dépôts pour le soudage à l'arc sous flux Schweißgut zum Schutzgasschweißen von hochfesten
gazeux des aciers à haute résistance - Classification (ISO Stählen - Einteilung (ISO 16834:2012)
16834:2012)
This European Standard was approved by CEN on 13 April 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 16834:2012: E
worldwide for CEN national Members.

Contents Page
Foreword .3

Foreword
This document (EN ISO 16834:2012) has been prepared by Technical Committee ISO/TC 44 "Welding and
allied processes" in collaboration with Technical Committee CEN/TC 121 “Welding” the secretariat of which is
held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by November 2012, and conflicting national standards shall be withdrawn
at the latest by November 2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 16834:2007.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 16834:2012 has been approved by CEN as a EN ISO 16834:2012 without any modification.
INTERNATIONAL ISO
STANDARD 16834
Second edition
2012-05-01
Welding consumables — Wire electrodes,
wires, rods and deposits for gas shielded
arc welding of high strength steels —
Classification
Produits consommables pour le soudage — Fils-électrodes, fils,
baguettes et dépôts pour le soudage à l'arc sous flux gazeux des aciers
à haute résistance — Classification

Reference number
ISO 16834:2012(E)
©
ISO 2012
ISO 16834:2012(E)
©  ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

ISO 16834:2012(E)
Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Classification . 2
4 Symbols and requirements . 3
4.1 Symbol for the product/process . 3
4.2 Symbol for strength and elongation properties of all-weld metal . 3
4.3 Symbol for impact properties of all-weld metal . 4
4.4 Symbol for shielding gas . 4
4.5 Symbol for the chemical composition of wire electrodes, wires and rods . 5
4.6 Symbol for condition of post-weld heat treatment . 5
5 Mechanical tests . 9
5.1 Preheating and interpass temperatures . 9
5.2 Welding conditions and pass sequence . 10
5.3 Post-weld heat-treated condition . 10
6 Chemical analysis . 11
7 Rounding procedure . 11
8 Retest . 11
9 Technical delivery conditions . 11
10 Examples of designation . 12
Bibliography . 14

ISO 16834:2012(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16834 was prepared by Technical Committee ISO/TC 44, Welding and allied processes, Subcommittee
SC 3, Welding consumables.
This second edition cancels and replaces the first edition (ISO 16834:2006), which has been technically
revised.
The main changes compared to the previous edition are:
a) in 4.4, the separation between the A and B side has been eliminated;
b) in Table 3B, the chemical composition has been changed for 4M31 and N5M3;
c) footnote a to Table 3B has been redrafted to give more precision;
d) the designation examples in Clause 10 have been modified.
Requests for official interpretations of any aspect of this International Standard should be directed to the
Secretariat of ISO/TC 44/SC 3 via your national standards body. A complete listing of these bodies can be
found at www.iso.org.
iv © ISO 2012 – All rights reserved

ISO 16834:2012(E)
Introduction
This International Standard recognizes that there are two somewhat different approaches in the global market
to classifying a given wire electrode, wire, rod or deposit, and allows for either or both to be used to suit a
particular market need. Application of either type of classification designation (or of both where suitable)
identifies a product as classified in accordance with this International Standard. The classification in
[1]
accordance with system A is mainly based on EN 12534:1999 . The classification in accordance with
system B is mainly based upon standards used around the Pacific Rim. Future revisions will aim to merge the
two systems into a single classification system.
This International Standard provides a classification for the designation of wire electrodes, wires, rods and
deposits in terms of their chemical composition and, where required, in terms of the yield strength, tensile
strength and elongation of the all-weld metal. The ratio of yield to tensile strength of weld metal is generally
higher than that of the parent metal. Users should note that matching weld metal yield strength to parent metal
yield strength does not necessarily ensure that the weld metal tensile strength matches that of the parent
material. Thus, where the application requires matching tensile strength, selection of the consumable should
be made by reference to column 3 of Table 1A or 1B, as appropriate.
INTERNATIONAL STANDARD ISO 16834:2012(E)

Welding consumables — Wire electrodes, wires, rods and
deposits for gas shielded arc welding of high strength steels —
Classification
1 Scope
This International Standard specifies requirements for classification of wire electrodes, wires, rods and all-
weld metal deposits in the as-welded condition and in the post-weld heat-treated (PWHT) condition for gas
shielded metal arc welding and tungsten inert-gas welding of high-strength steels with a minimum yield
strength greater than 500 MPa, or a minimum tensile strength greater than 570 MPa. One wire electrode can
be tested and classified with different shielding gases.
This International Standard is a combined specification providing for classification utilizing a system based
upon the yield strength and the average impact energy of 47 J of all-weld metal, or utilizing a system based
upon the tensile strength and the average impact energy of 27 J of all-weld metal.
e) Clauses, subclauses and tables which carry the suffix letter “A” are applicable only to wire electrodes,
wires, rods and deposits classified according to the system based upon the yield strength and the
average impact energy of 47 J of all-weld metal under this International Standard.
f) Clauses, subclauses and tables which carry the suffix
...
