EN ISO 636:2017
(Main)Welding consumables - Rods, wires and deposits for tungsten inert gas welding of non-alloy and fine-grain steels - Classification (ISO 636:2017)
Welding consumables - Rods, wires and deposits for tungsten inert gas welding of non-alloy and fine-grain steels - Classification (ISO 636:2017)
ISO 636:2017 specifies requirements for classification of rods and wires in the as-welded condition and in the post-weld heat-treated condition for tungsten inert gas welding of non-alloy and fine-grain steels with a minimum yield strength of up to 500 MPa or a minimum tensile strength of up to 570 MPa.
ISO 636:2017 is a combined specification providing classification utilizing a system based upon the yield strength and the average impact energy of 47 J of all-weld metal or utilizing a system based upon the tensile strength and the average impact energy of 27 J of all-weld metal.
a) Paragraphs and tables which carry the suffix letter "A" are applicable only to rods and wires classified to the system based upon the yield strength and the average impact energy of 47 J of all-weld metal in accordance with this document.
b) Paragraphs and tables which carry the suffix letter "B" are applicable only to rods and wires classified to the system based upon the tensile strength and the average impact energy of 27 J of all-weld metal in accordance with this document.
c) Paragraphs and tables which have neither the suffix letter "A" nor the suffix letter "B" are applicable to all rods and wires classified in accordance with this document.
Schweißzusätze - Stäbe, Drähte und Schweißgut zum Wolfram-Inertgasschweißen von unlegierten Stählen und Feinkornstählen - Einteilung (ISO 636:2017)
Dieses Dokument legt Anforderungen zur Einteilung von Stäben und Drähten zum Wolfram-Inert¬gas-Schweißen von unlegierten Stählen und Feinkornstählen mit einer Mindeststreckgrenze bis 500 MPa oder einer Mindestzugfestigkeit bis 570 MPa im Schweißzustand und nach einer Wärmenachbehandlung fest.
Dieses Dokument enthält eine gemeinsame Spezifikation zur Einteilung entweder nach der Streckgrenze und der mittleren Kerbschlagarbeit von 47 J des reinen Schweißgutes oder nach der Zugfestigkeit und der mittleren Kerbschlagarbeit von 27 J des reinen Schweißgutes.
a) Abschnitte und Tabellen, die durch ein nachgestelltes „A“ gekennzeichnet sind, können nur für Stäbe und Drähte angewendet werden, die nach der Streckgrenze und der mittleren Kerbschlagarbeit von 47 J des reinen Schweißgutes nach diesem Dokument eingeteilt werden.
b) Abschnitte und Tabellen, die durch ein nachgestelltes „B“ gekennzeichnet sind, können nur für Stäbe und Drähte angewendet werden, die nach der Zugfestigkeit und der mittleren Kerbschlagarbeit von 27 J des reinen Schweißgutes nach diesem Dokument eingeteilt werden.
c) Abschnitte und Tabellen ohne nachgestelltes „A“ oder „B“ sind für alle nach diesem Dokument eingeteilten Stäbe und Drähte anwendbar.
Produits consommables pour le soudage - Baguettes et fils pour dépôts par soudage TIG des aciers non alliés et des aciers à grains fins - Classification (ISO 636:2017)
ISO 636:2017 spécifie les exigences relatives à la classification des baguettes et des fils à l'état brut de soudage et à l'état traité thermiquement après soudage, en soudage TIG (soudage à l'arc sous protection de gaz inerte avec électrode de tungstène) des aciers non alliés et des aciers à grains fins ayant une limite d'élasticité minimale pouvant atteindre 500 MPa ou une résistance à la traction minimale pouvant atteindre 570 MPa.
ISO 636:2017 propose une spécification mixte permettant une classification utilisant un système fondé soit sur la limite d'élasticité et l'énergie de rupture moyenne de 47 J pour le métal fondu hors dilution, soit sur la résistance à la traction et l'énergie de rupture moyenne de 27 J pour le métal fondu hors dilution.
a) Les paragraphes et les tableaux qui portent le suffixe «A» ne sont applicables qu'aux baguettes et fils classifiés d'après le système basé sur la limite d'élasticité et l'énergie de rupture moyenne de 47 J pour le métal fondu hors dilution conformément au présent document.
b) Les paragraphes et les tableaux qui portent le suffixe «B» ne sont applicables qu'aux baguettes et fils classifiés d'après le système basé sur la résistance à la traction et l'énergie de rupture moyenne de 27 J pour le métal fondu hors dilution conformément au présent document.
c) Les paragraphes et les tableaux ne comportant ni le suffixe «A» ni le suffixe «B» sont applicables à toutes les baguettes et à tous les fils classifiés conformément au présent document.
Dodajni materiali za varjenje - Palice, žice in čisti vari pri varjenju TIG nelegiranih in drobnozrnatih jekel - Razvrstitev (ISO 636:2017)
Ta dokument določa zahteve za razvrstitev palic in žic v varjenem stanju in stanju po varjenju s toplotno obdelavo za varjenje nelegiranih in drobnozrnatih jekel z inertnim plinom in volframovo elektrodo z minimalno mejo prožnosti jekel največ 500 MPa ali minimalno natezno trdnostjo jekel največ 570 MPa.
Ta dokument je kombinirana specifikacija, ki določa razvrstitev po sistemu na osnovi meje prožnosti in povprečne energije udarca 47 J za čiste vare ali po sistemu na osnovi
natezne trdnosti in povprečne energije udarca 27 J za čiste vare.
a) Odstavki in preglednice z dodano črko »A« se uporabljajo samo za palice in žice, ki so razvrščene po sistemu, ki temelji na meji prožnosti in povprečni energiji udarca 47 J za čiste vare v skladu s tem dokumentom.
b) Odstavki in preglednice z dodano črko »B« se uporabljajo samo za palice in žice, ki so razvrščene po sistemu, ki temelji na natezni trdnosti in povprečni energiji udarca 27 J za čiste vare v skladu s tem dokumentom.
c) Odstavki in preglednice brez dodane črke »A« ali »B« se uporabljajo
za vse palice in žice, ki so razvrščene v skladu s tem dokumentom.
General Information
Relations
Standards Content (Sample)

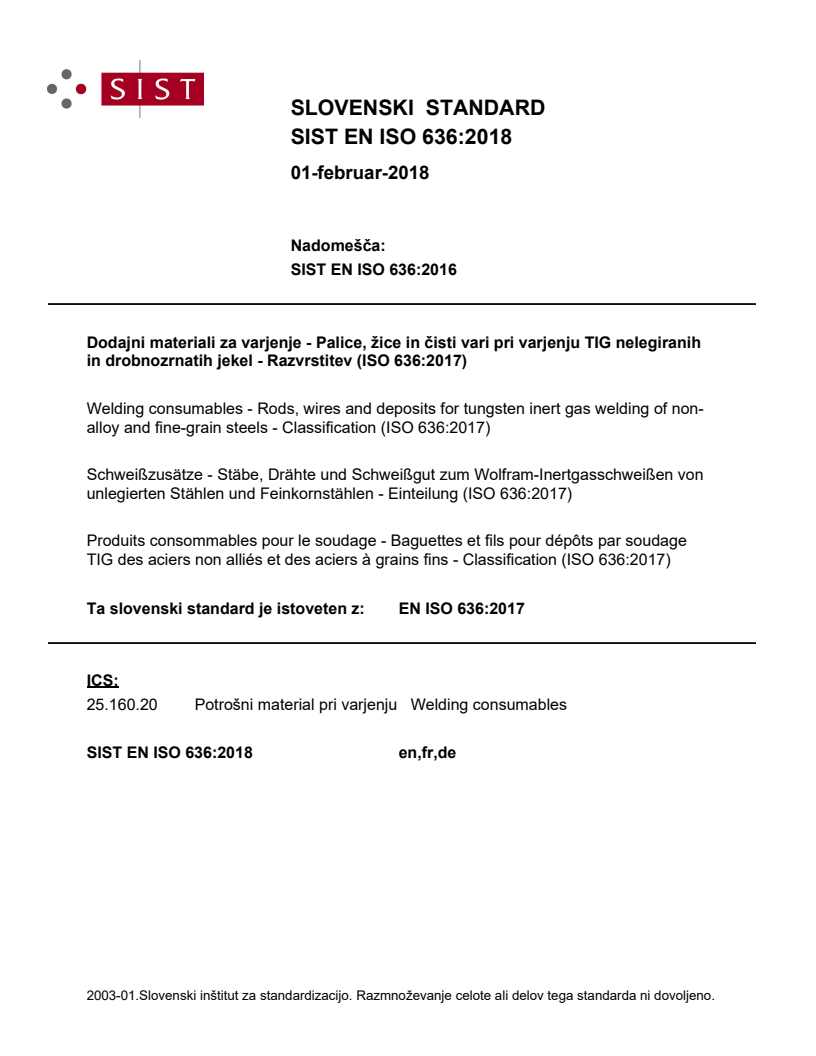

SLOVENSKI STANDARD
01-februar-2018
1DGRPHãþD
SIST EN ISO 636:2016
'RGDMQLPDWHULDOL]DYDUMHQMH3DOLFHåLFHLQþLVWLYDULSULYDUMHQMX7,*QHOHJLUDQLK
LQGUREQR]UQDWLKMHNHO5D]YUVWLWHY ,62
Welding consumables - Rods, wires and deposits for tungsten inert gas welding of non-
alloy and fine-grain steels - Classification (ISO 636:2017)
Schweißzusätze - Stäbe, Drähte und Schweißgut zum Wolfram-Inertgasschweißen von
unlegierten Stählen und Feinkornstählen - Einteilung (ISO 636:2017)
Produits consommables pour le soudage - Baguettes et fils pour dépôts par soudage
TIG des aciers non alliés et des aciers à grains fins - Classification (ISO 636:2017)
Ta slovenski standard je istoveten z: EN ISO 636:2017
ICS:
25.160.20 Potrošni material pri varjenju Welding consumables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 636

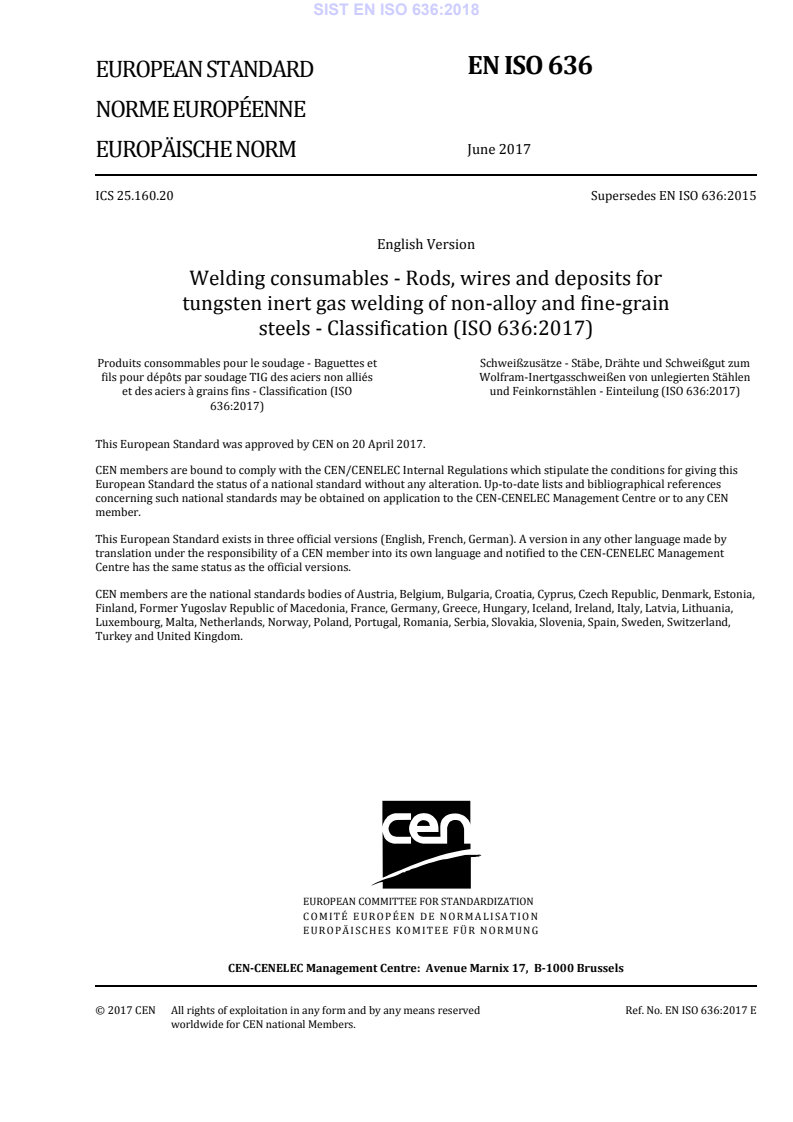

EUROPEAN STANDARD
NORME EUROPÉENNE
June 2017
EUROPÄISCHE NORM
ICS 25.160.20 Supersedes EN ISO 636:2015
English Version
Welding consumables - Rods, wires and deposits for
tungsten inert gas welding of non-alloy and fine-grain
steels - Classification (ISO 636:2017)
Produits consommables pour le soudage - Baguettes et Schweißzusätze - Stäbe, Drähte und Schweißgut zum
fils pour dépôts par soudage TIG des aciers non alliés Wolfram-Inertgasschweißen von unlegierten Stählen
et des aciers à grains fins - Classification (ISO und Feinkornstählen - Einteilung (ISO 636:2017)
636:2017)
This European Standard was approved by CEN on 20 April 2017.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 636:2017 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
European foreword
This document (EN ISO 636:2017) has been prepared by Technical Committee ISO/TC 44 “Welding and
allied processes” in collaboration with Technical Committee CEN/TC 121 “Welding and allied
processes” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2017, and conflicting national standards
shall be withdrawn at the latest by December 2017.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 636:2015.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 636:2017 has been approved by CEN as EN ISO 636:2017 without any modification.
INTERNATIONAL ISO
STANDARD 636
Fifth edition
2017-06
Welding consumables — Rods, wires
and deposits for tungsten inert gas
welding of non-alloy and fine-grain
steels — Classification
Produits consommables pour le soudage — Baguettes et fils pour
dépôts par soudage TIG des aciers non alliés et des aciers à grains fins
— Classification
Reference number
ISO 636:2017(E)
©
ISO 2017
ISO 636:2017(E)
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
ISO 636:2017(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification . 2
4.1 General . 2
5 Symbols and requirements . 2
5.1 Symbol for the product/process . 2
5.2 Symbol for strength and elongation of all-weld metal . 3
5.3 Symbol for impact properties of all-weld metal . 4
5.4 Symbol for the chemical composition of rods or wires . 4
6 Mechanical tests . 9
6.1 Preheating and interpass temperatures . 9
6.2 Welding conditions and pass sequence .10
6.3 PWHT condition .10
7 Chemical analysis .10
8 Rounding procedure .11
9 Retesting .11
10 Technical delivery conditions .11
11 Examples of designation .11
Bibliography .13
ISO 636:2017(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www . i so .org/ iso/ foreword .html.
The committee responsible for this document is ISO/TC 44, Welding and allied processes, Subcommittee
SC 3, Welding consumables.
This fifth edition cancels and replaces the fourth edition (ISO 636:2015), of which it constitutes a minor
revision with the following changes:
— updates to the latest ISO style (including mandatory Clause 3 and subsequent renumbering of
clauses and subclauses);
— in Table 3B, the limits for Ti in the last column have been correctly assigned against NCCT1, NCCT2
and N1M2T and not against N9, NCC and NCC1 as in the 2015 edition;
— the newly agreed wording for Clause 8, “Rounding procedure”, has been introduced.
Requests for official interpretations of any aspect of this document should be directed to the Secretariat
of ISO/TC 44/SC 3 via your national standards body. A complete listing of these bodies can be found at
www .iso .org.
iv © ISO 2017 – All rights reserved
ISO 636:2017(E)
Introduction
This document provides a classification for the designation of rods and wires in terms of their chemical
composition and, where required, in terms of the yield strength, tensile strength, and elongation of
the all-weld metal. The ratio of yield to tensile strength of weld metal is generally higher than that of
parent metal. Matching weld metal yield strength to parent metal yield strength will not necessarily
ensure that the weld metal tensile strength matches that of the parent material. Where the application
requires matching tensile strengths, selection of consumables is made by reference to column 3 of
Table 1A or Table 1B.
Of note is that the mechanical properties of all-weld metal test specimens used to classify the rods and
wires vary from those obtained in production joints because of differences in welding procedure such
as diameter, width of weave, welding position, and material composition.
[1]
The classification according to system A is mainly based on EN 1668:1997 . The classification
according to system B is mainly based upon standards used around the Pacific Rim.
©
...
