EN 15814:2011+A1:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bitumenske debeloslojne prevleke, modificirane s polimeri - Definicije in zahteveKunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Begriffe und AnforderungenRevêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Définitions et exigencesPolymer modified bituminous thick coatings for waterproofing - Definitions and requirements91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 15814:2011+A1:2012SIST EN 15814:2011+A1:2012en,fr,de01-december-2012SIST EN 15814:2011+A1:2012SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15814:2011+A1
October 2012 ICS 91.100.50 Supersedes EN 15814:2011English Version
Polymer modified bituminous thick coatings for waterproofing - Definitions and requirements
Revêtements bitumineux épais modifiés aux polymères pour imperméabilisation - Définitions et exigences
Kunststoffmodifizierte Bitumendickbeschichtungen zur Bauwerksabdichtung - Begriffe und Anforderungen This European Standard was approved by CEN on 14 July 2011 and includes Amendment 1 approved by CEN on 20 August 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15814:2011+A1:2012: ESIST EN 15814:2011+A1:2012

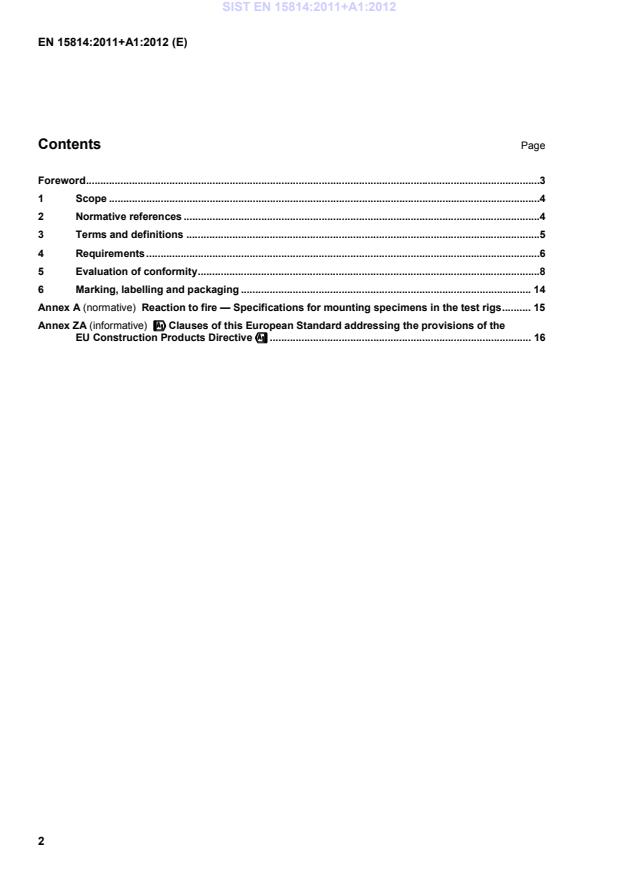

Reaction to fire — Specifications for mounting specimens in the test rigs . 15Annex ZA (informative)
!!!!Clauses of this European Standard addressing the provisions of the EU Construction Products Directive"""" . 16 SIST EN 15814:2011+A1:2012

bituminous thick coatings for waterproofing — Resistance to compression EN 15816, Polymer modified bituminous thick coatings for waterproofing — Resistance to rain EN 15817, Polymer modified bituminous thick coatings for waterproofing — Water resistance EN 15818, Polymer modified bituminous thick coatings for water proofing — Determination of dimensional stability at high temperature EN 15819, Polymer modified bituminous thick coatings for waterproofing — Reduction of the thickness of the layer when fully dried
EN 15820, Polymer modified bituminous thick coatings for waterproofing — Determination of watertightness ISO 1183-1: 2004, Plastics - Methods for determining the density of non-cellular plastics - Part_1: Immersion method, liquid pyknometer method and titration method EN ISO 2811-1:2011, Paints and varnishes — Determination of density — Part 1: Pyknometer method (ISO 2811-1:1997) EN ISO 2811-2, Paints and varnishes — Determination of density — Part 2: Immersed body (plummet) method (ISO 2811-2:1997) SIST EN 15814:2011+A1:2012

EN ISO 3451-1, Plastics — Determination of ash — Part 1: General methods (ISO 3451-1:2008) EN ISO 3923-1, Metallic powders — Determination of apparent density — Part 1: Funnel method (ISO 3923-1:2008) EN ISO 11925-2, Reaction to fire tests — Ignitability of products subjected to direct impingement of flame — Part 2: Single-flame source test (ISO/FDIS 11925-2:2010) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 crack bridging ability ability of a product to bridge a crack that originates below ground under specified conditions and without damage 3.2 free film cured polymer modified bituminous coating emulsion based, which is tested without being applied to a substrate 3.3 inlay industrially produced material, which is incorporated as an intermediate layer when applying the coating
3.4 PMBC !Polymer Modified Bituminous thick Coating emulsion based, with or without admixtures, such as additives and mineral aggregates, comprising of one or two components" 3.5 pressure water water in ground with hydrostatic pressure
Crack width ≥ 1 mm dry layer thickness
≥ 3 mm (MLV) Class CB 2 No damage
Crack width ≥ 2 mm dry layer thickness
≥ 3 mm (MLV) EN 15812 Method A or BNOTE The test method has to be declared with the classification.
2 Resistance to rain Class R0 No require-ment
Class R1 ≤ 24 h
wet layer thickness ≥ 3 mm (MLV) Class R2
≤ 8 h
wet layer thickness ≥ 3 mm (MLV) Class R3 ≤ 4 h
wet layer
thickness ≥ 3 mm (MLV) EN 15816 3 Water resistance 1.No colouration of the water 2.No debonding from inlay, if used dry layer ≥ 4 mm No changes to the material according to EN 15817,
EN 15817 4 Flexibility at low temperature !deleted text" No cracks
EN 15813 5 Dimensional stability at high temperature !deleted text" No sliding or draining down
EN 15818 SIST EN 15814:2011+A1:2012

Testing in accordance with the specifications in the classification standard EN 13501-1and Annex A.
8 Watertightness a Class W1 ≥ 24 h at 0,0075 N/mm2dry layer
thickness without inlay ≥ 3 mm (MLV) Class W2A ≥ 72 h at 0,075 N/mm2 dry layer thickness with inlay ≥ 4 mm with inlay (MLV) Class W2B ≥ 72 h at
0,075 N/mm2 dry layer thickness without inlay ≥ 4 mm without inlay (MLV) EN 15820 9 Resistance to compression a Class C0 No requirement Class C1 Stabilization at ≤ 50 % (change maximum 3 % within 3 subse-quent days) 0,06 MN/m2dry layer thickness
≥ 3 mm (MLV) Class C2A Stabilization at ≤ 50 % (change maximum 3 % within 3 subse-quent days) 0,30 MN/m2dry layer thickness
≥ 4 mm with inlay (MLV) Class C2B Stabilization at ≤ 50 % (change maximum 3 % within 3 subse-quent days) 0,30 MN/m2 dry layer thickness
≥ 4 mm without inlay (MLV) EN 15815 !a The testing procedure of characteristics are also related to durability aspects." manufacturer's limiting value (MLV) value stated by the manufacturer to be met during testing. The manufacturer's limiting value can be a minimum or a maximum value according to statements made under product characteristics of this document
When required, the water vapour diffusion resistance shall be tested in accordance with EN 1931. SIST EN 15814:2011+A1:2012

technical specification to which reference is made; b) the effective implementation of these procedures and instructions; c) the recording of these operations and their results; d) the use of these results to correct any deviations, repair the effects of such deviations, treat any resulting instances of non-conformity and, if necessary, revise the FPC to rectify the cause of non-conformity. Where subcontracting takes place, the manufacturer shall retain the overall control of the product and ensure that he receives all the information that is necessary to fulfill his responsibilities according to this European Standard. If the manufacturer has part of the product designed, manufactured, assembled, packed, processed and/or labeled by subcontracting, the FPC of the subcontractor may be taken into account, where appropriate for the product in question. The manufacturer who subcontracts all of his activities may in no circumstances pass these responsibilities on to a subcontractor. NOTE Manufacturers having an FPC system, which complies with EN ISO 9000 series standard and which addresses the requirements of this European Standard are recognized as satisfying the FPC requirements of the Council Directive 89/106/EEC. 5.3.2.2 Equipment 5.3.2.2.1 Testing All weighing, measuring and testing equipment shall be calibrated and regularly inspected according to documented procedures, frequencies and criteria. 5.3.2.2.2 Manufacturing All equipment used in the manufacturing process shall be regularly inspected and maintained to ensure use, wear or failure does not cause inconsistency in the manufacturing process. Inspections and maintenance shall be carried out and recorded in accordance with the manufacturer’s written procedures and the records retained for the period defined in the manufacturer's FPC procedures. 5.3.2.3 Raw materials and components The specifications of all incoming raw materials and components shall be documented, as shall the inspection scheme for ensuring their compliance. In case supplied kit components are used, the attestation of conformity level of the component shall be that given in the appropriate harmonised technical specification for that component. 5.3.2.4 Design process The factory production control system shall document the various stages in the design of products, identify the checking procedure and those individuals responsible for all stages of design. During the design process itself, a record shall be kept of all checks, their results, and any corrective actions taken. This record shall be sufficiently detailed and accurate to demonstrate that all stages of the design phase, and all checks, have been carried out satisfactorily. SIST EN 15814:2011+A1:2012

5.3.2.5
Controls during manufacturing process The manufacturer shall plan and carry out production under controlled conditions. 5.3.2.6 Product testing and evaluation
The manufacturer shall establish procedures to ensure that the stated values of the characteristics he declares, are maintained. The characteristics, and the means of control, are given in Table 2. Table 2 — Factory Production Control
Characteristic Test method Production control frequency Tolerances Flexibility at low temperature EN 15813 Weekly or per batch According to EN 15813 Dimensional stability at high temperature EN 15818 Weekly or per batch According to EN 15818 For the A-component
— Solids content EN ISO 3251 Weekly or per batch ± 4 % absolute — Ash content (only for products with ash content ≥ 5 mass %) EN ISO 3451-1 with testing at a temperature of (75 ± 25) °C Weekly or per batch ± 2 % absolute For the B-component (only for two component PMBC)
— Bulk density (for powder
component) EN ISO 3923-1 Weekly or per batch ± 0,1 g/cm3 — Density (for liquid
component) EN ISO 2811-1 Weekly or per batch ± 0,1 g/cm3 For the cured PMBC
— Density
EN ISO 2811-2
Weekly or per batch
± 0,1 g/cm3 Identification for inlays:
— Type — Mass per unit area — Strength and elongation at break To be stated. Depending on the type of inlay, a suitable test has to be applied at incoming products. At incoming products
-----
For the purpose of the Factory Production Control alternative tests to those given in Table 2 may be used, provided that a correlation of the results between both tests, for the product in question, is established. The use of alternative tests shall be recorded and maintained.
5.3.2.7 Non-complying products The manufacturer shall have written procedures which specify how non-complying products shall be dealt with. Any such events shall be recorded as they occur and these records shall be kept for the period defined in the manufacturer’s written procedures. SIST EN 15814:2011+A1:2012

5.3.2.8 Corrective action The manufacturer shall have documented procedures that instigate action to eliminate the cause of non-conformities in order to prevent recurrence. 5.3.2.
...
