Surfaces for sports areas - Part 2: Determination of shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratory

This part of EN 15301 specifies a method for determining the shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratory.

Sportböden - Teil 2: Bestimmung der Scherfestigkeit durch Prüfung der dynamischen Decklage von ungebundenen mineralischen Belägen im Laboratorium

Sols sportifs - Partie 2: Détermination par essai dynamique en laboratoire de la résistance au cisaillement de la couche supérieure des sols minéraux non liés

La partie 2 de la norme EN 15301 spécifie une méthode pour déterminer par essai dynamique en laboratoire la résistance au cisaillement de la couche supérieure des sols minéraux non liés.

Podloge za športne dejavnosti - 2. del: Določanje strižne trdnosti z dinamičnim merjenjem zgornjega dela neelastičnih mineralnih podlog v laboratoriju

General Information

Status
Published
Publication Date
03-Apr-2007
Withdrawal Date
30-Oct-2007
ICS
97.220.10 - Sports facilities
Technical Committee
CEN/TC 217 - Surfaces for sport areas
Drafting Committee
CEN/TC 217/WG 4 - Unbound mineral surfaces
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
21-Nov-2023
Completion Date
14-Apr-2025
Ref Project
SIST EN 15301-2:2007 - Surfaces for sports areas - Part 2: Determination of shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratory

Relations

Splited From
prEN 15301 - Surfaces for sports areas - Determination of rotational resistance
Effective Date
07-Mar-2023
Parent
prEN 15301 - Surfaces for sports areas - Determination of rotational resistance
Effective Date
22-Dec-2008

Overview

EN 15301-2:2007 is a CEN laboratory method for assessing the shear strength of unbound mineral surfaces used in sports areas. The standard defines a dynamic top-layer test that measures resistance to rotational shear of the surface top layer under controlled laboratory conditions. It is part of the EN 15301 series on surfaces for sports areas and is intended to give reproducible, comparative shear strength data for material selection, quality control and research.

Key topics and technical requirements

  • Scope: Laboratory determination of shear strength by dynamic top-layer testing of unbound mineral sports surfaces.
  • Apparatus: The standard specifies a complete test rig including a test mould with removable base, a steel distribution plate, a compaction device with a drop weight, a shearing disc and alignment gauges, a torque (dynamometric) measuring instrument, a cardan shaft and precision scales. Exact dimensions and tolerances are given in the standard.
  • Specimen preparation:
    • Water content set to 0.7 of the optimum Proctor water content (WOPN) and equilibrated (16 h in a sealed container).
    • Target dry density typically referenced to a proportion (95 %) of the Proctor optimum density over a defined layer thickness.
    • Sample compaction procedure and layer height are prescribed to ensure repeatability.
  • Test procedure:
    • The shearing disc is installed with controlled vertical clearance and aligned using centring and vertical alignment gauges.
    • A starting torsional load equivalent to a specified shear tension (e.g., 50 kN/m²) is applied and maintained, then increased steadily until failure.
    • A minimum of three tests is performed and the mean result reported.
  • Results and reporting:
    • Shear strength is calculated from the maximum torsion moment, disc geometry and pin length; friction losses in bearings are deducted from readings.
    • Test report must include the EN reference, sample identification, shear strength, individual test results (if requested) and any deviations from the procedure.

Applications and users

EN 15301-2:2007 is valuable for:

  • Sports-surface manufacturers and material suppliers for product development and quality control.
  • Independent testing laboratories performing certification and comparative testing of infill and top-layer materials.
  • Sports facility designers and turf/surface specifiers who need objective shear-strength data to inform surface performance, safety and maintenance planning.
  • Researchers studying traction, wear and performance of unbound mineral sports surfaces.

Keywords: EN 15301-2:2007, shear strength, dynamic top layer testing, unbound mineral surfaces, sports surfaces, laboratory method, Proctor test.

Related standards

  • EN 15301-1 - Determination of rotational resistance (other part of the EN 15301 series).
  • Normal/optimum Proctor test methods (referenced for density and water content control).

Frequently Asked Questions

EN 15301-2:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Surfaces for sports areas - Part 2: Determination of shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratory". This standard covers: This part of EN 15301 specifies a method for determining the shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratory.

This part of EN 15301 specifies a method for determining the shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratory.

EN 15301-2:2007 is classified under the following ICS (International Classification for Standards) categories: 97.220.10 - Sports facilities. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 15301-2:2007 has the following relationships with other standards: It is inter standard links to prEN 15301; is excused to prEN 15301. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase EN 15301-2:2007 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

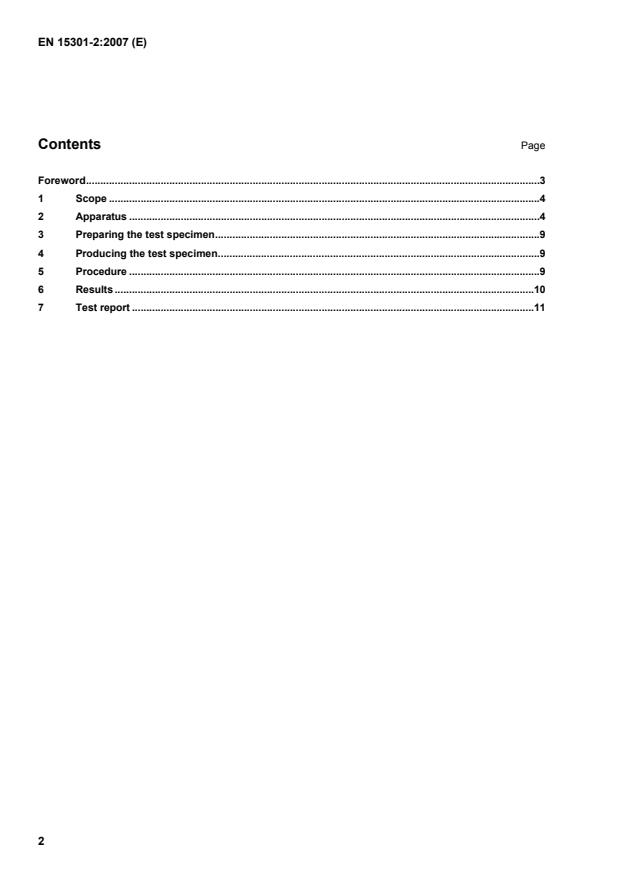

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Surfaces for sports areas - Part 2: Determination of shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratoryRULMXSols sportifs - Partie 2: Détermination par essai dynamique en laboratoire de la résistance au cisaillement de la couche supérieure des sols minéraux non liésSportböden - Teil 2: Bestimmung der Scherfestigkeit durch Prüfung der dynamischen Decklage von ungebundenen mineralischen Belägen im LaboratoriumTa slovenski standard je istoveten z:EN 15301-2:2007SIST EN 15301-2:2007en97.220.10Športni objektiSports facilitiesICS:SLOVENSKI
STANDARDSIST EN 15301-2:200701-junij-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15301-2April 2007ICS 97.220.10 English VersionSurfaces for sports areas - Part 2: Determination of shearstrength by dynamic top layer testing of unbound mineralsurfaces in the laboratorySols sportifs - Partie 2: Détermination par essai dynamiqueen laboratoire de la résistance au cisaillement de la couchesupérieure des sols minéraux non liésSportböden - Teil 2: Bestimmung der Scherfestigkeit durchPrüfung der dynamischen Decklage von ungebundenenmineralischen Belägen im LaboratoriumThis European Standard was approved by CEN on 24 February 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15301-2:2007: E

Determination of rotational resistance Part 2: Determination of shear strength by dynamic top layer testing of unbound mineral surfaces in the laboratory According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
...
