FprEN 12221

SLOVENSKI STANDARD
01-januar-2024
Izdelki za otroke - Previjalne mize in blazine za domačo uporabo - Varnostne
zahteve in preskusne metode
Child care articles - Changing units and changing pads for domestic use - Safety
requirements and test methods
Artikel für Säuglinge und Kleinkinder - Wickeleinheiten und Wickelauflagen für den
Hausgebrauch - Sicherheitstechnische Anforderungen und Prüfverfahren
Articles de puériculture - Dispositifs à langer et matelas à langer à usage domestique -
Exigences de sécurité et méthodes d’essai
Ta slovenski standard je istoveten z: prEN 12221
ICS:
97.190 Otroška oprema Equipment for children
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
prEN 12221
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2023
ICS 97.190 Will supersede EN 12221-1:2008+A1:2013, EN
12221-2:2008+A1:2013
English Version
Child care articles - Changing units and changing pads for
domestic use - Safety requirements and test methods
Articles de puériculture - Dispositifs à langer et Artikel für Säuglinge und Kleinkinder -
matelas à langer à usage domestique - Exigences de Wickeleinheiten und Wickelauflagen für den
sécurité et méthodes d'essai Hausgebrauch - Sicherheitstechnische Anforderungen
und Prüfverfahren
This draft European Standard is submitted to CEN members for second enquiry. It has been drawn up by the Technical
Committee CEN/TC 252.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 12221:2023 E
worldwide for CEN national Members.

prEN 12221:2023 (E)

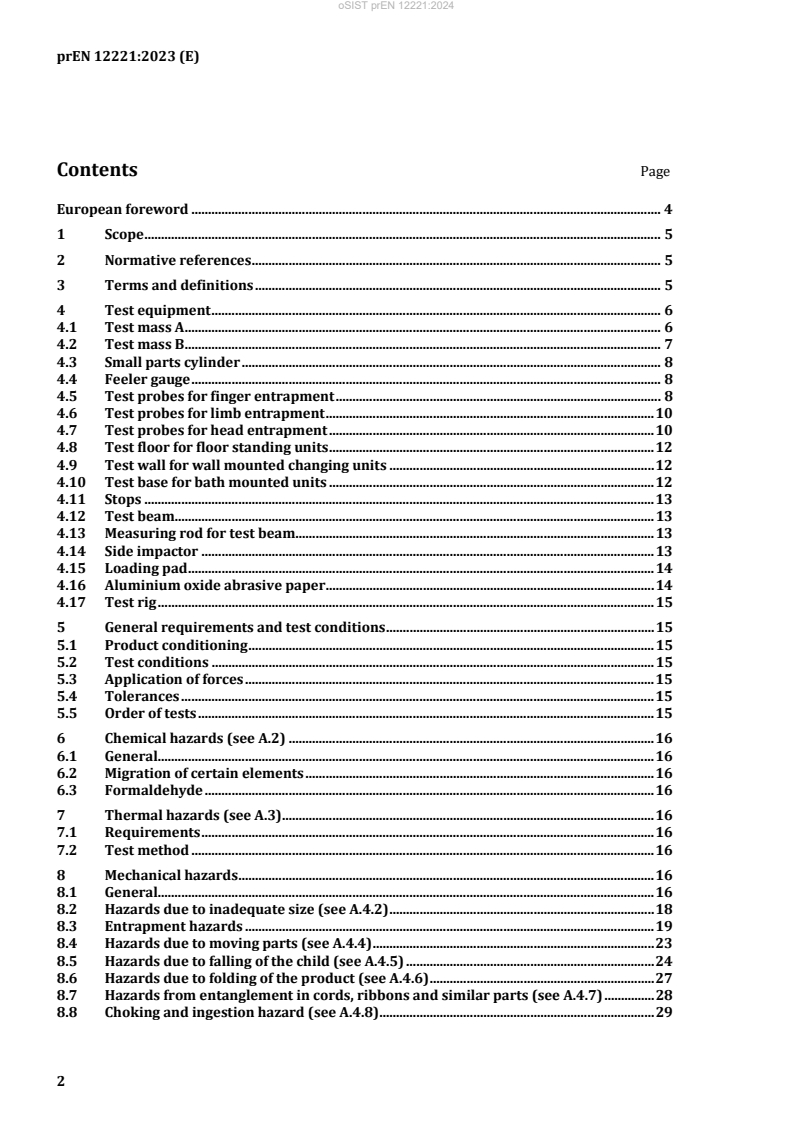

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test equipment . 6
4.1 Test mass A . 6
4.2 Test mass B . 7
4.3 Small parts cylinder . 8
4.4 Feeler gauge . 8
4.5 Test probes for finger entrapment . 8
4.6 Test probes for limb entrapment . 10
4.7 Test probes for head entrapment . 10
4.8 Test floor for floor standing units . 12
4.9 Test wall for wall mounted changing units . 12
4.10 Test base for bath mounted units . 12
4.11 Stops . 13
4.12 Test beam. 13
4.13 Measuring rod for test beam . 13
4.14 Side impactor . 13
4.15 Loading pad . 14
4.16 Aluminium oxide abrasive paper . 14
4.17 Test rig . 15
5 General requirements and test conditions . 15
5.1 Product conditioning . 15
5.2 Test conditions . 15
5.3 Application of forces . 15
5.4 Tolerances . 15
5.5 Order of tests . 15
6 Chemical hazards (see A.2) . 16
6.1 General. 16
6.2 Migration of certain elements . 16
6.3 Formaldehyde . 16
7 Thermal hazards (see A.3). 16
7.1 Requirements . 16
7.2 Test method . 16
8 Mechanical hazards . 16
8.1 General. 16
8.2 Hazards due to inadequate size (see A.4.2) . 18
8.3 Entrapment hazards . 19
8.4 Hazards due to moving parts (see A.4.4) . 23
8.5 Hazards due to falling of the child (see A.4.5) . 24
8.6 Hazards due to folding of the product (see A.4.6) . 27
8.7 Hazards from entanglement in cords, ribbons and similar parts (see A.4.7) . 28
8.8 Choking and ingestion hazard (see A.4.8) . 29
prEN 12221:2023 (E)
8.9 Suffocation hazards from plastic packaging (see A.4.9) . 31
8.10 Hazards from edges, corners and protruding parts (see A.4.10) . 32
8.11 Hazards from inadequate structural integrity (see A.4.11) . 32
8.12 Hazards from inadequate stability (see A.4.12) . 34
8.13 Castors and wheels . 37
8.14 Extension elements . 38
9 Product information . 38
9.1 General . 38
9.2 Marking of the product . 39
9.3 Purchase information . 40
9.4 Instructions for use . 41
Annex A (informative) Rationales . 43
A.1 Introduction . 43
A.2 Chemical hazards (see Clause 6) . 43
A.3 Thermal hazards (see Clause 7) . 43
A.4 Mechanical hazards (see Clause 8) . 43
Annex B (informative) A–deviations . 46
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2001/95/EC aimed to be covered . 47

prEN 12221:2022 (E)
European foreword
This document (prEN 12221:2023) has been prepared by Technical Committee CEN/TC 252 “Child use
and care articles”, the secretariat of which is held by AFNOR.
nd
This document is currently submitted to the 2 CEN Enquiry.
This document will supersede EN 12221-1:2013 and EN 12221-2:2013.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of
EU Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZA, which is an integral part
of this document.
In comparison with EN 12221-1:2013 and EN 12221-2:2013, the significant technical changes relate to
the following topics:
a) Adoption of the hazard based format;
b) Unification of the two parts in one single document;
c) Inclusion of changing pads and changing unit accessories;
d) Update of terms and definitions;
e) Update of chemical hazards;
f) Update of thermal hazards;
g) General update of the mechanical requirements to the state of the art;
h) Addition of requirements for accessibility filling materials;
i) Addition of durability requirements;
j) Modification of product information and addition of specific symbols;
k) Addition of rationales.
prEN 12221:2023 (E)
1 Scope
This document specifies safety requirements and test methods for changing units, changing pads and
changing unit accessories for domestic use.
This document only covers the function of the item as a changing unit. If the item can be converted or
used for another function (e.g. cots, storage furniture, bath tubs and stands, etc.), other relevant European
Standards apply.
The changing unit can be foldable and can be fitted with a child bathtub or other additional items.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 71-1:2014+A1:2018, Safety of toys - Part 1: Mechanical and physical properties
EN 71-2:2020, Safety of toys - Part 2: Flammability
EN 71-3:2019+A1:2021, Safety of toys - Part 3: Migration of certain elements
EN 717-1:2004, Wood-based panels - Determination of formaldehyde release - Part 1: Formaldehyde
emission by the chamber method
EN 13986:2004+A1:2015, Wood-based panels for use in construction - Characteristics, evaluation of
conformity and marking
EN ISO 14184-1:2011, Textiles - Determination of formaldehyde - Part 1: Free and hydrolysed formaldehyde
(water extraction method) (ISO 14184-1:2011)
ISO 48-5:2018, Rubber, vulcanized or thermoplastic — Determination of hardness — Part 5: Indentation
hardness by IRHD pocket meter method
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
changing unit
elevated structure designed to support a child in a lying position for the purpose of allowing a caregiver
to clean and/or change the child
3.2
bathtub mounted changing unit
changing unit intended to be mounted on an adult household bathtub
prEN 12221:2022 (E)
3.3
wall mounted changing unit
non-standalone changing unit intended to be attached to a wall, with or without support legs
Note 1 to entry: A floor standing changing unit for which the manufacturer recommends an additional fixation to a
wall is not considered to be a wall mounted changing unit
3.4
changing board flap
changing surface that is movable or removable for storage purposes or to provide access to another
function, e.g. a bathtub
3.5
changing pad
pad with side barriers specifically designed for the purpose of changing the child
Note 1 to entry: flat mats and similar items without barriers intended only to offer hygienic protection or comfort
during changing are not included in the definition.
Note 2 to entry: outer rims of a pad are considered as barriers if the thickness of the rim is greater than the thickness
of the changing surface
3.6
changing unit accessory
accessory that attaches to another product (e.g. cot, etc.) designed to enable the product to be used as a
changing unit
3.7
locking mechanism
assembly of components consisting of one or more locking device(s) and one or more operating device(s)
3.8
locking device
mechanical component that maintains part(s) of the item erected in the position of use (e.g. latch(es),
hooks, over centre lock.) which could be deactivated or activated by action(s) on the operating device
3.9
operating device
part of the locking mechanism(s) designed to be activated by the carer through one or several positive
action(s)
4 Test equipment
4.1 Test mass A
Test mass A is a rigid cylinder (160 ± 5) mm in diameter and (300 ± 5) mm in height, having a mass of
+0,1
9 kg and with its centre of gravity in the centre of the cylinder. All edges shall have a radius of (5 ± 1)
mm (see Figure 1).
prEN 12221:2023 (E)
Dimensions in millimetres
Key
1 radius: (5 ± 1) mm
Figure 1 — Test mass A
4.2 Test mass B
Test mass B is a rigid cylinder (200 ± 5) mm in diameter and (300 ± 5) mm in height, having a mass of
+0,1
15 kg and with its centre of gravity in the centre of the cylinder. All edges shall have a radius of (5 ± 1)
mm (see Figure 2).
Dimensions in millimetres
Key
1 radius: (5 ± 1) mm
Figure 2 — Test mass B
prEN 12221:2022 (E)
4.3 Small parts cylinder
Small parts cylinder for the assessment of small components, having dimensions in accordance with
Figure 3.
Dimension in millimetres
Figure 3 — Small parts cylinder
4.4 Feeler gauge
Gauge with a thickness of (0,4 ± 0,02) mm and an insertion edge radius of (3 ± 0,5) mm (see Figure 4).
Dimensions in millimetres
Figure 4 — Feeler gauge
4.5 Test probes for finger entrapment
4.5.1 Test probes with hemispherical end
+01,
Probes made from plastic or other hard, smooth material of diameters 7 mm and 12 mm with a
−01, 0
full hemispherical end that can be mounted on a force-measuring device, see Figure 5.
prEN 12221:2023 (E)
Dimensions in millimetres
Key
Probe type 7 mm probe 12 mm probe
Diameter A
+01,
−01,
Radius RB Half of diameter A Half of diameter A
1 Line ascribed around circumference showing depth of penetration
Figure 5 — Test probes with hemispherical end
4.5.2 Test probe for mesh
Mesh probe made from plastic or other hard, smooth material as shown in Figure 6.
Dimensions in millimetres
Key
Probe type mesh probe
Diameter A 0
−01,
mm
Diameter B 0
5,6
−01,
mm
Radius RB half of diameter B
Figure 6 — Test probe for mesh
4.5.3 Shape assessment probe
Probe made from plastic or other hard, smooth material with the dimensions shown in Figure 7.
prEN 12221:2022 (E)
Dimensions in millimetres
Key
A front view
B top view
C side view
D 3D view
Figure 7 — Shape assessment probe
4.6 Test probes for limb entrapment
+0,1
0 0
Probes made from plastic or other hard, smooth material of diameters 25 mm, 45 mm and 65
−0,1 −0,1
mm with a conical end that can be mounted on a force-measuring device, see Figure 8.

Key
Probe 25 mm probe 45 mm probe 65 mm probe
type
0 +0,1 0
Diameter 25 mm 65 mm
45 mm
−0,1 −0,1
A
Figure 8 — Test probes with conical end
4.7 Test probes for head entrapment
4.7.1 Small head probe
Probe made of hard and smooth material with dimensions as shown in Figure 9.
prEN 12221:2023 (E)
Dimensions in millimetres
Key
1 handle
Figure 9 — Small head probe
4.7.2 Large head probe
Probe made of hard and smooth material with dimensions as shown in Figure 10.
Dimensions in millimetres
Key
1 handle
Figure 10 — Large head probe
4.7.3 Template for partially bound and V shaped openings
Probe made of hard and smooth material with dimensions as shown in Figure 11.
prEN 12221:2022 (E)
Dimensions in millimetres
a) Front view b) Side view
Key
A A Portion
B B Portion
Figure 11 — Template for partially bound and V shaped openings
4.8 Test floor for floor standing units
The test floor shall be horizontal, rigid, flat and smooth.
4.9 Test wall for wall mounted changing units
The test wall shall be vertical, rigid, flat and smooth.
4.10 Test base for bath mounted units
Test base for bath mounted units represents the upper bath wall section made of hard and smooth
material with dimensions in accordance with Figure 12. The profiles shall be fixed parallel to the distance
equal to the minimum bath dimension recommended by the manufacturer.
prEN 12221:2023 (E)
Dimensions in millimetres
Key
1 inside
2 outside
Figure 12 — Cross section; bath test base, right side
4.11 Stops
Stops to prevent the article from sliding but not tilting, not higher than 12 mm except in cases where the
design of the item necessitates the use of higher stops, in which case the lowest that will prevent the item
from moving shall be used.
4.12 Test beam
Test beam with a width of 80 mm, a length of 1 100 mm and a mass of 1,75 kg ± 0,03 kg. The test beam
shall have holes with a diameter of 8 (+ 0,2/0) mm, drilled through its 80 mm wide face and
symmetrically placed about its centre point.
There shall be pairs of holes with distances between the centre points of the two holes equal to: 372 mm,
492mm, 642 mm. An additional hole is required at the centre point of the test beam.
NOTE The distances between the centre points of the pair of holes are equal to the minimum length and width
specified in 8.2.1, minus 8 mm, in such a way that the distance between the furthest points of two holes is equal to
the minimum length and width specified in 8.2.1.
4.13 Measuring rod for test beam
Measuring rod of 8 (−0,2/0) mm diameter with an adjustable collar and its lower end hemispherical. The
total mass of one measuring rod and collar shall be 0,12 ± 0,01 kg.
4.14 Side impactor
A pendulum with a cylindrical head made of steel (Figure 13). The head of the pendulum shall be
surrounded by a 10 mm thick layer of rubber of hardness (77 ± 5) IRHD in accordance with
ISO 48-5:2018. The total mass shall be 2 kg.
prEN 12221:2022 (E)
Dimensions in millimetres
Key
1 pivot point
2 centre of gravity
3 rubber (77 ± 5) IRHD
Figure 13 — Side impactor
4.15 Loading pad
A rigid cylindrical object, 100 mm in diameter, having a smooth hard surface and rounded edge, with
radius of 12 mm.
4.16 Aluminium oxide abrasive paper
Aluminium oxide abrasive paper, 80 grit (P80).
prEN 12221:2023 (E)
4.17 Test rig
A rigid flat surface made of any suitable material, having dimensions greater than the dimensions of the
changing pad to be tested, with at least one rigid barrier adjustable to the height recommended in the
manufacturer's instructions.
5 General requirements and test conditions
5.1 Product conditioning
The sample for testing shall be stored in indoor ambient conditions for at least 24 h prior to testing.
Before testing, any fabrics used shall be cleaned or washed and dried twice in accordance with the
manufacturer's instructions.
5.2 Test conditions
The tests shall be carried out in ambient conditions of (21 ± 5) °C.
The product(s) shall be tested as delivered. The product shall be assembled according to the instructions
supplied with the unit. If the product(s) can be assembled or combined in different ways, the most
onerous combinations shall be used for each test
All fittings shall be tightened in accordance with the manufacturer's instructions and shall not be
retightened throughout the test procedure.
5.3 Application of forces
The tests are described in terms of the application of forces. Masses can however be used. The
relationship 10 N = 1 kg may be used for this purpose.
The forces in the static load tests shall be applied sufficiently slowly to ensure that negligible dynamic
force is applied.
The forces in the durability tests shall be applied at a rate to ensure that excessive heating does not occur.
Unless otherwise specified, the test forces may be applied by any suitable device which does not
adversely affect the results.
5.4 Tolerances
Unless otherwise stated, the accuracy of the test equipment shall be:
— Forces: ±5 % of the nominal force;
— Masses: ±0,5 % of the nominal mass;
— Dimensions: ±1 mm;
— Angles: ±2°;
— Time: ±1 s;
— Positioning of loading pads: ±5 mm;
5.5 Order of tests
Unless otherwise stated in the test methods, the tests shall be carried out on the same product in the
order listed in this standard.
prEN 12221:2022 (E)
6 Chemical hazards (see A.2)
6.1 General
If testing is required, a separate unconditioned sample shall be used for the tests in Clause 6.
6.2 Migration of certain elements
The migration of elements from materials on surfaces within the protected volume shall not exceed the
limits defined in EN 71-3:2019+A1:2021.
When testing is performed, the method described in EN 71-3:2019+A1:2021 shall be used.
6.3 Formaldehyde
Textile components within the protected volume shall not contain free and hydrolysed formaldehyde in
excess of 30 mg/kg.
When testing is performed, the method described in EN ISO 14184-1:2011 shall be used.
Wood based panels shall not release formaldehyde in excess of 0,124 mg/m (class E1 according to
Annex B of EN 13986:2004+A1:2015).
When testing is performed, the method described in EN 717-1:2004 shall be used.
7 Thermal hazards (see A.3)
7.1 Requirements
When tested in accordance with 7.2, there shall be no surface flash and the rate of spread of flame of
textiles, coated textiles and plastic coverings shall not exceed 50 mm/s.
A separate sample, conditioned according to 5.1, may be used for these tests.
7.2 Test method
To verify the surface flash effect, apply the test flame defined in EN 71-2:2020, 5.5.1 for (3 ± 0,5) s to the
product(s) in different places likely to cause surface flash.
To verify the rate of spread of flame, apply the test flame defined in EN 71-2:2020, 5.4.
8 Mechanical hazards
8.1 General
8.1.1 Changing pads
Changing pads intended to be used on a defined list of changing unit(s) shall be tested in conjunction with
the compatible changing unit(s).
For changing pads intended to be used on non-specified changing units, the applicable clauses of Clause 8
are 8.3, 8.4, 8.5, 8.7, 8.8, 8.9, 8.10.
For changing pads not intended to be used on any changing unit or elevated surface, the applicable
clauses of Clause 8 are 8.3, 8.4, 8.7, 8.8, 8.9, 8.10.
8.1.2 Determination of protected volume (see A.4.1)
The protected volume is the space contained within 550 mm above the changing area and within 200 mm
around the changing area measured horizontally from the inner side of the barriers at their base or from
prEN 12221:2023 (E)
the upper edge of the changing area on a side where there is no barrier (see Figure 14a, Figure 14b and
Figure 14c).
Dimensions in millimetres
a) Top view
b) Front view
prEN 12221:2022 (E)
c) Side view
Figure 14 — Protected volume
8.2 Hazards due to inadequate size (see A.4.2)
8.2.1 Requirements
The minimum dimensions of the changing area, when measured in accordance with 8.2.2 shall be
according to Table 2:
Table 2 — Minimum dimensions of the changing area
Changing unit type Width Length
Changing unit 380 mm 650 mm
Changing unit accessory 380 mm 500 mm
The length of the changing area is the intended longitudinal position of the child on the unit.
The width of the changing area is the measurement perpendicular to the length.
8.2.2 Test methods
8.2.3 Measurement of width
Position the changing unit on the relevant base (see 4.8, 4.9, 4.10) or attach the changing unit accessory
to the product it is intended to be used with
Measure the width in the middle of the flat area with a measuring tape; if the width is greater than the
minimum required, then the width requirement is met.
If not, place the test beam (see 4.12) in the middle and across the width of the changing area (as shown
in Figure 15). Place a measurement rod (see 4.13) through the central hole of the test beam so that it rests
on the top of the changing surface. h is the distance that the measuring rod protrudes below the underside
of the test beam. Place two measuring rods, adjusted to extend one third of h below the underside of the
test beam, through the relevant holes in the test beam.
If the collars on these two measuring rods rest on the upper surface of the test beam and the rods are
within the space enclosed by the barriers, then the width requirement is met.
prEN 12221:2023 (E)
Key
1 minimum width
Figure 15 — Method of measurement of the width
8.2.4 Measurement of the length
Measure the length in the middle of the flat area with a measuring tape; if the length is greater than the
minimum required, the length requirement is met.
If not, measure the length of the changing area in the middle of the flat area by the same procedure as
specified for the measurement of width in 8.2.3, except that the relevant holes for the minimum length
shall be used. If the height of the barrier is not the same at both ends, the test beam (see 4.12) shall be
raised at the lower end until it is parallel to the changing surface.
If the vertical projections of the rods are within the area of the changing units and the collars rest on the
upper surface of the test beam then the length requirement is met.
8.3 Entrapment hazards
8.3.1 Entrapment of fingers (see A.4.3.1)
8.3.1.1 Requirements
When tested in accordance with 8.3.1.2, there shall be no completely bounded openings, within the
protected volume, that let the 7 mm probe (see 4.5.1) go through unless the depth of penetration is less
than 10 mm or unless the shape assessment probe (see 4.5.3) enters.
When tested in accordance with 8.3.1.2, there shall be no openings in mesh, within the protected volume,
that allow the test probe for mesh (see 4.5.2) to penetrate to the 7 mm diameter section.
The test shall be carried out with the product in any intended position of use.
8.3.1.2 Test methods
Check whether the 7 mm probe (see 4.5.1), with an applied force of up to 30 N, enters 10 mm or more
into any accessible completely bounded opening in any possible orientation.
If the 7 mm probe enters 10 mm or more, then the shape assessment probe (see 4.5.3) shall also enter
10 mm or more with an applied force of up to 5 N.
Check whether the test probe for mesh (see 4.5.2), with an applied force of up to 30 N, penetrates
accessible openings in mesh up to the 7 mm diameter section.
prEN 12221:2022 (E)
8.3.2 Entrapment of limbs
8.3.2.1 Requirements
When tested in accordance with 8.3.2.2, there shall be no gaps and openings, within the protected volume,
that let the 25 mm probe (see 4.6) go through unless the 45 mm probe (see 4.6) enters.
8.3.2.2 Test methods
Check whether the 25 mm probe (see 4.6), with an applied force of up to 30 N, enters with the full
diameter into any accessible gap or opening in any possible orientation.
If the 25 mm probe enters, then the 45 mm probe (see 4.6) shall also enter with the full diameter with an
applied force of up to 5 N.
8.3.3 Entrapment of head, neck and torso (see A.4.3.2)
8.3.3.1 Requirements
When tested in accordance with 8.3.3.2.1, there shall be no hole, gap or opening, within the protected
volume, larger than 65 mm and less than 223 mm.
When tested in accordance with 8.3.3.2.2, openings with the lowest point higher than 600 mm above the
floor that allow the passage of the small head probe (4.7.1), shall also allow the passage of the large head
probe (4.7.2).
Partially bound, V and irregular shaped openings with the lowest point higher than 200 mm above the
floor that allow the passage of small head probe shall be constructed so that:
a) portion B of the template does not enter the opening when tested in accordance with 8.3.3.2.3, see
Figure 16 and Figure 17; or
b) if a) fails, the apex of portion A of the template contacts the base of the opening when tested in
accordance with 8.3.3.2.3, see Figure 18.
8.3.3.2 Test methods
8.3.3.2.1 Test method for head entrapment in the protected volume
Check whether the 65 mm probe (see 4.6), with an applied force of up to 30 N, enters with the full
diameter into any accessible holes, gaps and openings in any possible orientation.
If the 65 mm probe enters, then the large head probe (see 4.7.2) shall also enter with an applied force of
up to 5 N.
8.3.3.2.2 Head first openings
Push the small head probe (see 4.7.1) with the highest force possible up to 30 N into the opening. If the
small head probe passes completely through the opening, then the large head probe (see 4.7.2) shall pass
completely through the opening with a force of up to 5 N. The probes shall be inserted along the
longitudinal axis of the probe. If openings contain V or irregular shaped openings, these shall be assessed
in accordance with 8.3.3.2.3.
8.3.3.2.3 Partially bound, V and irregular shaped openings
Position the ‘B’ portion of the test template (see 4.7.3) between and perpendicular to the boundaries of
the opening, as shown in Figure 16 or Figure 17, as appropriate. If the full thickness of the template
cannot be inserted there is no hazard (Key 1 and 2 of Figure 16 and Key 1 of Figure 17).
If the test template can be inserted to a depth greater than the thickness of the template (45 mm) (Key 3
and 4 of Figure 16 and Key 2 of Figure 17), apply the ‘A’ portion of the test template, so that its centre line
prEN 12221:2023 (E)
is in line with the centre line of the opening. Ensure that the plane of the test template is parallel and
applied in line with the opening, as shown in Figure 18. Insert the test template along the centre line of
the opening until its motion is arrested by contact with the boundaries of the opening. If the template
touches the bottom of the opening there is no hazard (Key 1 of Figure 18), but if the sides of the template
touch the side of the opening there is a hazard (Key 2 of Figure 18).
Dimensions in millimetres
Key
1 PASS
2 PASS
3 continue with the test
4 continue with the test
Figure 16 — Method of insertion of portion B
prEN 12221:2022 (E)
Key
1 PASS
2 continue with the test
Figure 17 — Method of insertion of portion B
prEN 12221:2023 (E)
Key
1 PASS
2 FAIL
Figure 18 — Method of insertion of portion A
8.4 Hazards due to moving parts (see A.4.4)
8.4.1 Requirements for compression points
After the product has been set up for use in accordance with the manufacturer’s instructions, there shall
be no accessible compression points, within the protected volume, which can close to less than 12 mm
unless they are always less than 5 mm, as the result of:
a) the movement of the product; or
b) the movement of body weight by the child using the product; or
c) the application of an external force (either unintentionally by the carer, or by a powered mechanism).
Movement due to elasticity of materials shall not be considered as compression hazard.
The area of contact between the changing pad / changing unit accessory and the surface on which the
changing pad / changing unit accessory is attached is excluded from this requirement.
prEN 12221:2022 (E)
8.4.2 Requirements for shear points
After the product has been set up for use in accordance with the manufacturer’s instructions, there shall
be no accessible shear points, within the protected volume, which can close to less than 12 mm, as the
result of:
a) the movement of the product; or
b) the movement of body weight by the child using the product; or
c) the application of an external force (either unintentionally by the carer, or by a powered mechanism).
Movement due to elasticity of materials or play in mechanical parts shall not be considered as a shearing
hazard.
The area of contact between the changing pad / changing unit accessory and the surface on which the
changing pad / changing unit accessory is attached is excluded from this requirement.
8.5 Hazards due to falling of the child (see A.4.5)
8.5.1 General
The product shall not be fitted with any means to restrain the child (e.g. harness system or belts).
No toy(s) or toy bar shall be fitted or provided for the product. In case of multifunctional products, this
requirement applies only to the changing unit function.
8.5.2 Barriers
8.5.2.1 Requirements
8.5.2.1.1 Dimensional requirements
Barriers shall be provided as an integral part of the changing unit / changing pad / changing unit
accessory or by means of an additional item, e.g. barrier pad that can be affixed to the changing unit.
a) if w is greater than l and greater than 600 mm then the changing area shall have barriers on three
sides of the changing area covering at least 75 % of l (see Figure 19), when measured in accordance
with 8.5.2.2.1;
b) if l is greater than w the changing area shall have barriers on two sides of the changing area covering
at least 90 % of l (see Figure 20), when measured in accordance with 8.5.2.2.1.
Where w is the width of the changing area (see 8.2.1) and l is the length of the changing area (see 8.2.1).
For wall-mounted units, the wall is to be considered as a barrier for this side.
8.5.2.1.2 Performance requirements
When tested in accordance with 8.5.2.2.2, the barriers of the changing unit / changing pad / changing
unit accessory shall not become damaged or loosened, nor shall the test mass fall from the changing area.
Changing pads sold alone and failing the barrier performance test shall meet one of the following
conditions:
a. the changing pad cannot be sold as suitable for use on changing units or elevated surface and shall
bear the warning according to 9.2.1 (e).
prEN 12221:2023 (E)
b. the changing pad is suitable for use on changing units with a minimum height of barriers: it shall be
tested on a changing unit or a test rig (see 4.17) having the minimum height of barriers in accordance
with manufacturer’s instructions.
8.5.2.2 Test methods
8.5.2.2.1 Test method for measurement of length of barriers
The length of the barrier (l ) is measured as the length of the barrier in contact with the flat changing area
(see Figure 19 and 20).
Key
l length of the changing area
l1 length of the barriers
w width of the changing area
Figure 19 — Examples for arrangements of barriers

Key
l length of the barriers
Figure 20 — Example of measurement of length for curved barriers
prEN 12221:2022 (E)
8.5.2.2.2 Test method for barriers performance
The following considerations in Table 3 are to be considered for changing pads:
Table 3 — Type of changing pad and test conditions
Type of changing pad Test conditions
a) The changing pad is provided with the Test only with the changing pad
changing unit:
1) the changing pad is an integral part of the
changing unit and the changing unit
cannot be used without the changing pad
a) The changing pad is provided with the Test with and without the changing pad
changing unit:
2) the changing pad is removable and the
changing unit can be used without the
changing pad
b) There is no changing pad sold with the Test with and without the specific recommended
changing unit changing pad.
1) The manufacturer recommends a specific If the changing pad is the accessory required to
changing pad transform another product (e.g. a cupboard) into
a changing unit, then the test is done only with the
changing pad (the other product alone would not
be a changing unit).
b) There is no changing pad sold with the Test the changing unit without the changing pad
changing unit
2) The manufacturer recommends a generic
changing pad by giving only dimensional
constraints
c) Changing pads sold alone Test the changing pad by itself.
Place the changing unit / changing pad / changing unit accessory on an inclined surface at 15° (+ 0,5°/0°)
to the horizontal and put stops against all legs or supports to prevent it overturning.
NOTE 1 If relevant, the changing unit accessory is attached to the product it is intended to be used with.
NOTE 2 Wall mounted changing units are tested not fixed to the wall as this would not allow to incline them.
Place test mass B (see 4.2) on the changing unit / changing pad or test mass A (see 4.1) on the changing
unit accessory in such a way that the test mass rests against the barrier to be tested and its turning axis
lies parallel to the barrier to be tested (see Figure 21).
prEN 12221:2023 (E)
Dimensions in millimetres
Key
1 test mass A / test mass B
2 barrier
Figure 21 — Effectiveness of barriers
Roll the test mass away from the barrier and release it when its longitudinal axis is aligned with, and at a
distance of 260 mm from its rest position against the barrier or up to the opposite barrier if the width is
not enough to move it to 260mm.
Test each single barrier in the middle and on each side, with the external side of the test mass flush with
the external end of the barrier (see Figure 22).
A barrier is considered to be a single barrier when it is made of a continuous material (e.g. a curved
shaped single piece of foam or a curved single milled piece of wood).

Figure 22 — Example of positions of the test mass
8.6 Hazards due to folding of the product (see A.4.6)
8.6.1 Requirements
To prevent the changing unit from inadvertently folding, at least one locking mechanism for the folding
system shall be present.
Locking mechanisms shall comply with 8.6.2 and shall continue to operate satisfactorily after testing in
accordance with 8.6.3.
8.6.2 Unintentional release of locking mechanism(s)
To avoid the hazards due to unintentional release of locking mechanisms, one of the following conditions
shall be fulfilled before and after testing in accordance with 8.6.3:
a) at least one operating device require
...
