ASTM F2863-11(2023)
(Specification)Standard Specification for Central Vacuum Hose Inlet Valve Socket Dimensions
Standard Specification for Central Vacuum Hose Inlet Valve Socket Dimensions
ABSTRACT
This specification establishes requirements and test methods for dimensions and tolerances of central-vacuum hose inlet valve sockets. The requirements pertain to the dimensions, tolerances, and socket dimensions. The test methods include sampling and conditioning.
SCOPE
1.1 This specification establishes requirements and test methods for dimensions and tolerances of central-vacuum hose inlet valve sockets.
1.2 All notes and footnotes shall be considered as non-mandatory requirements of the specification.
1.3 This specification does not apply to inlet valve back-up (or mounting) plates.
1.4 This standard is applicable to universal valves marked with ASTM F2863, and does not limit proprietary valve designs.
1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Aug-2023
- Technical Committee
- F11 - Vacuum Cleaners
- Drafting Committee
- F11.30 - Durability-Reliability
Relations
- Effective Date
- 01-Apr-2020
- Effective Date
- 01-Jan-2019
- Refers
ASTM D1600-18 - Standard Terminology for Abbreviated Terms Relating to Plastics (Withdrawn 2024) - Effective Date
- 01-Jan-2018
- Effective Date
- 01-Aug-2017
- Effective Date
- 01-Feb-2017
- Effective Date
- 15-Nov-2016
- Effective Date
- 01-Aug-2016
- Effective Date
- 01-Jun-2015
- Refers
ASTM D2122-15 - Standard Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings - Effective Date
- 15-Mar-2015
- Effective Date
- 01-Feb-2014
- Effective Date
- 15-Apr-2013
- Effective Date
- 15-Feb-2013
- Effective Date
- 01-Apr-2012
- Effective Date
- 01-Feb-2010
- Effective Date
- 01-May-2009
Overview
ASTM F2863-11(2023): Standard Specification for Central Vacuum Hose Inlet Valve Socket Dimensions provides requirements and test methods that ensure compatibility and interoperability for central vacuum hose inlet valve sockets. Developed by ASTM International, this standard governs the dimensional specifications, tolerances, and associated quality requirements for universal central vacuum hose inlet valve sockets, enabling manufacturers and installers to maintain product consistency and reliability in central vacuum systems across residential, commercial, and industrial environments.
Key Topics
- Dimensional Requirements: Specifies exact dimensions and tolerances for central vacuum hose inlet valve sockets to standardize the interface with hose cuffs.
- Test Methods: Defines procedures for sampling, conditioning, and dimensional testing-primarily referencing ASTM D2122-to ensure compliance.
- Material Flexibility: Applicable to both metallic and non-metallic components as determined between purchaser and supplier.
- Scope Limitations: This specification does not cover inlet valve back-up (mounting) plates and is focused on universal valves marked with ASTM F2863.
- Unit Standards: Inch-pound units are standard, with SI conversions provided for informational purposes only.
- Quality Assurance: Products marked with ASTM F2863 assure the manufacturer has followed prescribed manufacture, inspection, sampling, and testing protocols.
Applications
Central Vacuum System Design and Installation
- Product Manufacturing: Essential for manufacturers of universal central vacuum valves and hose cuffs, ensuring their products are compatible and meet market expectations for interoperability and reliability.
- System Integration: Guides installers and system designers in specifying and sourcing componentry that aligns with documented socket dimensions, reducing issues at installation and during maintenance.
- Building Codes and Compliance: Supports regulatory authorities and inspectors by providing a clear benchmark for evaluating central vacuum inlet valve sockets in building projects.
- Quality Control: Enables quality assurance teams to assess products based on consistent dimensional and tolerance criteria, reducing the risk of leaks, poor connections, and incompatibility issues.
Commercial and Residential Environments
- Retrofits and Upgrades: Facilitates smooth upgrade or replacement of valves in existing central vacuum systems by adhering to standardized dimensions.
- Procurement: Assists contractors and purchasing agents in identifying compliant products for new builds and renovations, improving confidence in system performance.
Related Standards
For proper implementation and verification, ASTM F2863-11(2023) references several related standards, including:
- ASTM D2122: Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings
- ASTM D618: Practice for Conditioning Plastics for Testing
- ASTM D1600: Terminology for Abbreviated Terms Relating to Plastics
- ASTM D2749: Symbols for Dimensions of Plastic Pipe Fittings
- ASTM F412: Terminology Relating to Plastic Piping Systems
Organizations seeking to maintain or demonstrate compliance with international vacuum hose and fitting requirements should familiarize themselves with these related specifications and testing practices.
Summary
ASTM F2863-11(2023) plays a critical role in supporting standardized manufacturing, installation, and quality assurance for central vacuum hose inlet valve sockets. Compliance with this standard streamlines product development, enhances system compatibility, and underpins customer satisfaction across the vacuum system supply chain. By referencing this specification and its associated test methods, both manufacturers and installers can ensure consistent performance and durable connections in every central vacuum system deployment.
Frequently Asked Questions
ASTM F2863-11(2023) is a technical specification published by ASTM International. Its full title is "Standard Specification for Central Vacuum Hose Inlet Valve Socket Dimensions". This standard covers: ABSTRACT This specification establishes requirements and test methods for dimensions and tolerances of central-vacuum hose inlet valve sockets. The requirements pertain to the dimensions, tolerances, and socket dimensions. The test methods include sampling and conditioning. SCOPE 1.1 This specification establishes requirements and test methods for dimensions and tolerances of central-vacuum hose inlet valve sockets. 1.2 All notes and footnotes shall be considered as non-mandatory requirements of the specification. 1.3 This specification does not apply to inlet valve back-up (or mounting) plates. 1.4 This standard is applicable to universal valves marked with ASTM F2863, and does not limit proprietary valve designs. 1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification establishes requirements and test methods for dimensions and tolerances of central-vacuum hose inlet valve sockets. The requirements pertain to the dimensions, tolerances, and socket dimensions. The test methods include sampling and conditioning. SCOPE 1.1 This specification establishes requirements and test methods for dimensions and tolerances of central-vacuum hose inlet valve sockets. 1.2 All notes and footnotes shall be considered as non-mandatory requirements of the specification. 1.3 This specification does not apply to inlet valve back-up (or mounting) plates. 1.4 This standard is applicable to universal valves marked with ASTM F2863, and does not limit proprietary valve designs. 1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM F2863-11(2023) is classified under the following ICS (International Classification for Standards) categories: 97.080 - Cleaning appliances. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM F2863-11(2023) has the following relationships with other standards: It is inter standard links to ASTM F412-20, ASTM F412-19, ASTM D1600-18, ASTM F412-17a, ASTM F412-17, ASTM F412-16a, ASTM F412-16, ASTM F412-15, ASTM D2122-15, ASTM D1600-14, ASTM D1600-13, ASTM F412-13, ASTM F412-12, ASTM D2122-98(2010), ASTM F412-09. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM F2863-11(2023) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

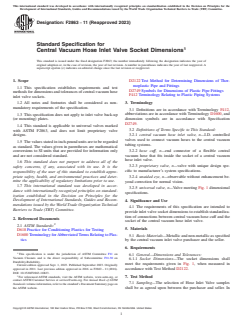

Designation: F2863 − 11 (Reapproved 2023)
