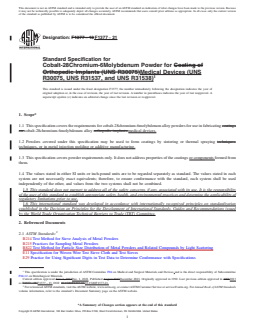

ASTM F1377-21

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F1377 − 13 F1377 − 21
Standard Specification for
Cobalt-28Chromium-6Molybdenum Powder for Coating of
Orthopedic Implants (UNS R30075)Medical Devices (UNS
R30075, UNS R31537, and UNS R31538)
This standard is issued under the fixed designation F1377; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers the requirements for cobalt-28chromium-6molybdenum alloy powders for use in fabricating coatings
on cobalt-28chromium-6molybdenum alloy orthopedic implants.medical devices.
1.2 Powders covered under this specification may be used to form coatings by sintering or thermal spraying techniques.
techniques, or in metal injection molding or additive manufacturing.
1.3 This specification covers powder requirements only. It does not address properties of the coatings or components formed from
them.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used
independently of the other, and values from the two systems shall not be combined.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
B214 Test Method for Sieve Analysis of Metal Powders
B215 Practices for Sampling Metal Powders
B822 Test Method for Particle Size Distribution of Metal Powders and Related Compounds by Light Scattering
E11 Specification for Woven Wire Test Sieve Cloth and Test Sieves
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
This specification is under the jurisdiction of ASTM Committee F04 on Medical and Surgical Materials and Devices and is the direct responsibility of Subcommittee
F04.12 on Metallurgical Materials.
Current edition approved June 1, 2013Dec. 1, 2021. Published August 2013December 2021. Originally approved in 1992. Last previous edition approved in 20082013
as F1377 – 08.F1377 – 13. DOI: 10.1520/F1377-13.10.1520/F1377-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

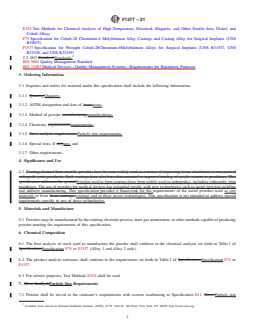

F1377 − 21
E354 Test Methods for Chemical Analysis of High-Temperature, Electrical, Magnetic, and Other Similar Iron, Nickel, and
Cobalt Alloys
F75 Specification for Cobalt-28 Chromium-6 Molybdenum Alloy Castings and Casting Alloy for Surgical Implants (UNS
R30075)
F1537 Specification for Wrought Cobalt-28Chromium-6Molybdenum Alloys for Surgical Implants (UNS R31537, UNS
R31538, and UNS R31539)
2.2 ISO Standard:Standards:
ISO 9001 Quality Management Standard
ISO 13485 Medical Devices—Quality Management Systems—Requirements for Regulatory Purposes
3. Ordering Information
3.1 Inquiries and orders for material under this specification shall include the following information:
3.1.1 Quantity,Quantity;
3.1.2 ASTM designation and date of issue,issue;
3.1.3 Method of powder manufacturing,manufacturing;
3.1.4 Chemistry requirements,requirements;
3.1.5 Sieve analysis requirements,Particle size requirements;
3.1.6 Special tests, if any,any; and
3.1.7 Other requirements.
4. Significance and Use
4.1 Coatings formed from metallic powders have become widely used as a means of improving tissue attachment to uncemented
orthopedic joint prosthesis. Such coatings have also been demonstrated to improve bonding of acrylic cement to prostheses. This
specification addresses the special Powders used to form coatings have been widely used in orthopedics, including orthopedic joint
prostheses. The use of powders for medical devices has expanded greatly with new technologies such as metal injection molding
and additive manufacturing. This specification provides a framework for the requirements of the metal powders used as raw
materials to form these coatings. coatings and in these newer technologies. This specification is not intended to address special
requirements specific to any of these technologies.
5. Materials and Manufacture
5.1 Powders may be manufactured by the rotating electrode process, inert gas atomization, or other methods capable of producing
powder meeting the requirements of this specification.
6. Chemical Composition
6.1 The heat analysis of stock used to manufacture the powder shall conform to the chemical analysis set forth in Table 1 of
SpecificationsSpecification F75 or F1537 (Alloy 1 and Alloy 2 only).
6.2 The product analysis tolerance shall conform to the requirements set forth in Table 2 of SpecificationsSpecification F75 or
F1537.
6.3 For referee purposes, Test Methods E354 shall be used.
7. Sieve AnalysisParticle Size Requirements
7.1 Powder shall be sieved to the customer’s requirements with screens conforming to Specification E11. Sieve Particle size
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.

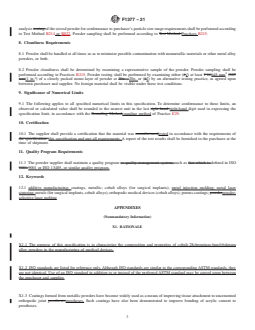

F1377 − 21
analysis testing of the sieved powder for conformance to purchaser’s particle size range requirements shall be performed according
to Test Method B214 or B822. Powder sampling shall be performed according to Test Method Practices B215.
8. Cleanliness Requirements
8.1 Powder shall be handled at all times so as to minimize possible contamination with nonmetallic materials or other metal alloy
powders, or both.
8.2 Powder cleanliness shall be determined by examining a representative sample of the powder. Powder sampling shall be
performed according to Practices B215. Powder testing shall be performed by examining either (a1) at least 1 in.645 mm (645
mm(1 in. ) of a closely packed mono-layer of powder at 20× , 20×, or (b2) by an alternative testing practice, as agreed upon
between purchaser and supplier. No foreign material shall be visible under these test conditions.
9. Significance of Numerical Limits
9.1 The following applies to all specified numerical limits in this specification. To determine conformance to these limits, an
observed or calculated value sha
...
