EUROPEAN STANDARD
EN ISO 10052
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2004
ICS 91.120.20; 17.140.20; 91.140.01
English version
Acoustics - Field measurements of airborne and impact sound
insulation and of service equipment sound - Survey method (ISO
10052:2004)
Acoustique - Mesurages in situ de l'isolement aux bruits Akustik - Messung der Luftschalldämmung und
aériens et de la transmission des bruits de choc ainsi que Trittschalldämmung und des Schalls von haustechnischen
du bruit des équipements - Méthode de contrôle (ISO Anlagen in Gebäuden - Kurzverfahren (ISO 10052:2004)
10052:2004)
This European Standard was approved by CEN on 24 June 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10052:2004: E
worldwide for CEN national Members.

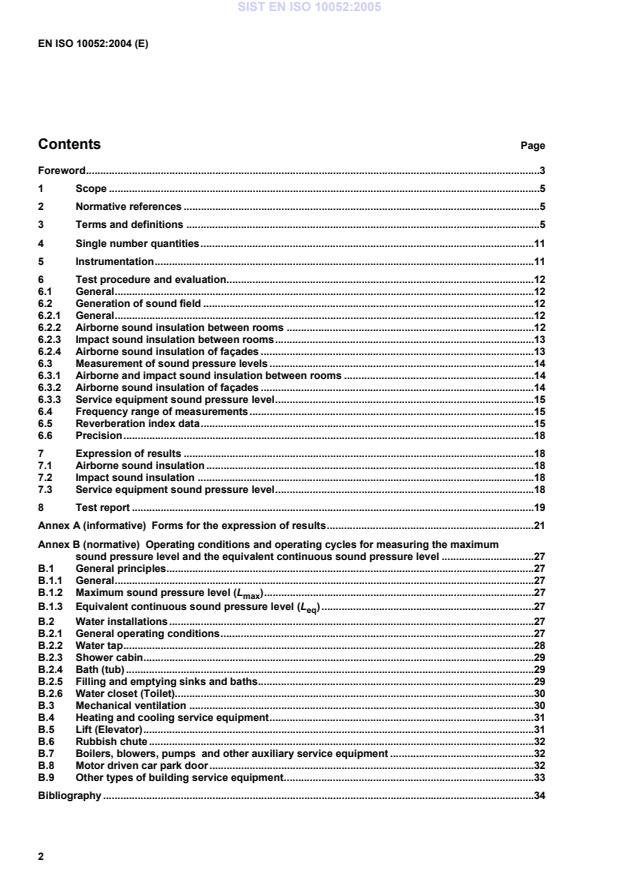

Contents Page
Foreword.3
1 Scope .5
2 Normative references .5
3 Terms and definitions .5
4 Single number quantities.11
5 Instrumentation.11
6 Test procedure and evaluation.12
6.1 General.12
6.2 Generation of sound field .12
6.2.1 General.12
6.2.2 Airborne sound insulation between rooms .12
6.2.3 Impact sound insulation between rooms.13
6.2.4 Airborne sound insulation of façades .13
6.3 Measurement of sound pressure levels .14
6.3.1 Airborne and impact sound insulation between rooms .14
6.3.2 Airborne sound insulation of façades .14
6.3.3 Service equipment sound pressure level.15
6.4 Frequency range of measurements.15
6.5 Reverberation index data.15
6.6 Precision.18
7 Expression of results .18
7.1 Airborne sound insulation .18
7.2 Impact sound insulation .18
7.3 Service equipment sound pressure level.18
8 Test report .19
Annex A (informative) Forms for the expression of results.21
Annex B (normative) Operating conditions and operating cycles for measuring the maximum
sound pressure level and the equivalent continuous sound pressure level .27
B.1 General principles.27
B.1.1 General.27
B.1.2 Maximum sound pressure level (L ).27
max
B.1.3 Equivalent continuous sound pressure level (L ).27
eq
B.2 Water installations.27
B.2.1 General operating conditions.27
B.2.2 Water tap.28
B.2.3 Shower cabin.29
B.2.4 Bath (tub).29
B.2.5 Filling and emptying sinks and baths.29
B.2.6 Water closet (Toilet).30
B.3 Mechanical ventilation .30
B.4 Heating and cooling service equipment.31
B.5 Lift (Elevator).31
B.6 Rubbish chute.32
B.7 Boilers, blowers, pumps and other auxiliary service equipment .32
B.8 Motor driven car park door .32
B.9 Other types of building service equipment.33
Bibliography .34
Foreword
This document (EN ISO 10052:2004) has been prepared by Technical Committee CEN/TC 126 “Acoustic
properties of building products and of buildings”, the secretariat of which is held by AFNOR, in collaboration
with Technical Committee ISO/TC 43 “Acoustics”.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2005, and conflicting national standards shall be withdrawn at
the latest by June 2005.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland
and United Kingdom.
Introduction
This document describes survey test methods which can be used for surveying the acoustic characteristics of
the airborne sound insulation, impact sound insulation and of the sound pressure levels from service
equipment. The methods may be used for screening tests of the acoustical properties of buildings. The
methods are not intended to be applied for measuring acoustical properties of building elements.
The approach of the survey methods is to simplify the measurement of sound pressure levels in rooms by
using a hand-held sound level instrument and by manually sweeping the microphone in the room space. The
correction for reverberation time can be either estimated by usage of tabular values or be based on
measurements. The measurement of airborne and impact sound insulation is carried out in octave bands. For
measuring sound from domestic service equipment, A - or C -weighted sound pressure levels are recorded.
Measurements are performed with specified operation conditions and operation cycles. The operating
conditions and operating cycles given in Annex B are only used if they are not opposed to national
requirements and regulations.
The measurement uncertainty of the results obtained using the survey method is a priori larger than the
uncertainty inherent in the corresponding test methods on engineering level.
NOTE Engineering methods for field measurements of airborne and impact sound insulation are dealt with in
EN ISO 140-4 and EN ISO 140-7. Engineering methods for field measurements of airborne sound insulation of façade
elements and façades are dealt with in EN ISO 140-5. An engineering method for measurement of service equipment
sound is dealt with in EN ISO 16032.
1 Scope
This document specifies field survey methods for measuring:
a) airborne sound insulation between rooms;
b) impact sound insulation of floors;
c) airborne sound insulation of façades; and
d) sound pressure levels in rooms caused by service equipment.
The methods described in this document are applicable for measurements in rooms of dwellings or in rooms
of comparable size with a maximum of 150 m .
For airborne sound insulation, impact sound insulation and façade sound insulation the method gives values
which are (octave band) frequency dependent. They can be converted into a single number characterising the
acoustical performances by application of EN ISO 717-1 and EN ISO 717-2. For service equipment sound the
results are given directly in A - or C -weighted sound pressure levels.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 20140-2, Acoustics — Measurement of sound insulation in buildings and of building elements — Part 2:
Determination, verification and application of precision data (ISO 140-2:1991).
EN 61260, Electroacoustics - Octave-band and fractional-octave-band filters (IEC 61260:1995).
EN 60651, Sound level meters (IEC 60651:1993).
EN 60804, Integrating-averaging sound level meters (IEC 60804:2000).
EN ISO 140-7:1998, Measurements of sound insulation in buildings and of building elements — Part 7: Field
measurements of impact sound insulation of floors (ISO 140-7:1998).
EN ISO 717-1, Acoustics — Rating of sound insulation in buildings and of building elements — Part 1:
Airborne sound insulation (ISO 717-1:1996).
EN ISO 717-2, Acoustics — Rating of sound insulation in buildings and of building elements — Part 2: Impact
sound insulation (ISO 717-2:1996).
EN ISO 3822-1, Acoustics - Laboratory tests on noise emission from appliances and equipment used in water
supply installations - Part 1: Method of measurement (ISO 3822-1:1999)

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
average sound pressure level in a room L
ten times the logarithm to the base 10 of the ratio of the space and time average of the sound pressure
squared to the square of the reference sound pressure, the space average being taken over the entire room
with the exception of those parts where the direct radiation of a sound source or the near field of the
boundaries (wall, etc.) is of significant influence. It is expressed in decibels as:
T
m


p t dt
∫

T
m

L = 10lg dB (1)
p
where
p is the sound pressure level, in Pascal, p = 20 µPa is the reference sound pressure;
T is the integration time in seconds
m
3.2
level difference D
difference in the space and time average sound pressure levels produced in two rooms by one sound source
in one of them. It is expressed in decibels as:
D = L − L  dB (2)
1 2
where
is the average sound pressure level in the source room, in decibels;
L
L is the average sound pressure level in the receiving room, in decibels
3.3
reverberation index k
ten times the logarithm to the base 10 of the ratio of the actual reverberation time T of the receiving room to
the reference reverberation time T . It is expressed in decibels. This quantity is denoted by:
T
k = 10 lg  dB (3)
T
where
T = 0,5 s
3.4
standardized level difference D
nT
level difference corresponding to a reference value of the reverberation time in the receiving room. It is
expressed in decibels as:
D = D + k  dB (4)
nT
where
D is the level difference (see equation (2)), in decibels;
k is the reverberation index (see equation (3)), in decibels
3.5
normalized level difference D
n
level difference D corresponding to the reference absorption area in the receiving room. It is expressed in
decibels as:
A T
0 0
D = D + k + 10 lg dB (5)
n
0,16 V
where
k is the reverberation index;
T is the reference reverberation time (T = 0,5 s);
0 0
V is the volume of the receiving room, in cubic metres;
A is the reference equivalent absorption area, in square metres, (A = 10 m );
0 0
0,16 has the unit s/m
3.6
apparent sound reduction index R’
ten times the logarithm to the base 10 of the ratio of the sound power W which is incident on a partition under
test to the total sound power transmitted into the receiving room, if, in addition to the sound power W
transmitted through the separating element, the sound power W , transmitted through flanking elements or by
other components, is significant.
It is expressed in decibels as:
W
'
R =10lg dB (6)
W + W
2 3
NOTE 1 The expression "apparent sound transmission loss" is also in use in English-speaking countries. It is
equivalent to "apparent sound reduction index".
Under the assumption of diffuse sound fields in the two rooms, the apparent sound reduction index in this
document is calculated from:
S T
'
R = D + k +10 lg dB (7)
0,16 V
where
D is the sound pressure level difference, in decibels;
k is the reverberation index;
S is the area of the partition, in square metres;
V is the volume of the receiving room, in cubic metres;
T is the reference reverberation time (T = 0,5 s);
0 0
0,16 has the unit s/m.
In the case of staggered or stepped rooms, S is that part of the area of the partition common to both rooms. If
the common area between the stepped or staggered rooms is less than 10 m , this shall be indicated in the
test report. If V/7,5 is larger than S, insert this value for S where V is the volume in m of the receiving room
which should be the smaller room.
In the case that no common area exists the normalized level difference D shall be determined.
n
NOTE 2 In the apparent sound reduction index, the sound power transmitted into the receiving room is related to the
sound power incident on the common partition irrespective of actual conditions of transmission.
The apparent sound reduction index is independent of the measuring direction between the rooms if the
sound fields are diffused in both rooms
3.7
impact sound pressure level L
i
average sound pressure level in the receiving room when the floor under test is excited by the standardized
tapping machine. It is expressed in decibels. If more than one position of the tapping machine is used, the
impact sound pressure level is calculated by averaging the sound pressure levels L at N positions according
i,n
to:
 
 N 
L / 10
1 i,n
 
L = 10 lg  10 dB (8)
∑
i
N
 
n = 1
 
 
3.8
standardized impact sound pressure level L’
nT
impact sound pressure level L reduced by the reverberation index k, and expressed in decibels:
i
L’ = L - k  dB (9)
nT i
3.9
normalized impact sound pressure level L’
n
impact sound pressure level L reduced by a correction term which is given in decibels, being ten times the
i
logarithm to the base 10 of the ratio between the reference equivalent absorption area and the actual
equivalent sound absorption area A of the receiving room. The actual equivalent absorption area is calculated
from the reverberation index, the reference reverberation time and the room volume:
A A T
' 0 0 0
L = L − 10 lg dB = L − k − 10 lg dB (10)
n i i
A 0,16 V
where
V is the volume of the receiving room in cubic metres;
k is the reverberation index;
is the reference reverberation time (T = 0,5 s);
T
0 0
A is the reference absorption area (A = 10 m );
0 0
0,16 has the unit s/m
3.10
average sound pressure level on a test surface L

1,s
ten times the logarithm to the base 10 of the ratio of the surface and time average of the sound pressure
squared to the square of the reference sound pressure, the surface average being taken over the entire test
surface including reflecting effects from the test specimen and façade; it is expressed in decibels
3.11
façade level difference D
2m
difference between the outdoor sound pressure level 2 m in front of the façade, L , and the space and time
1;2m
averaged sound pressure level, L , in the receiving room. It is expressed in decibels as:
D = L – L (11)
2m 1,2m 2  dB
It is also possible to measure in the plane of the façade. In this case the denotation is L instead of L
1,s 1;2m.
If road traffic sound has been used as sound source the notation is D and if a loudspeaker has been used
tr,2m
it is D and is expressed in decibels
ls,2m
3.12
standardized façade level difference D
2m,nT
façade level difference D corresponding to a reference value of the reverberation time in the receiving room.
2m
It is expressed in decibels as
D = D + k  dB (12)
2m,nT 2m
where
k is the reverberation index
3.13
normalized façade level difference D
2m,n
façade level difference D corresponding to the reference equivalent absorption area in the receiving room:
2m
A T
0 0
D = D + k + 10 lg  dB (13)
2m,n 2m
0,16 V
where
V is the volume of the receiving room in cubic metres;
k is the reverberation index;
T is the reference reverberation time (T = 0,5 s);
0 0
A is the reference equivalent absorption area in square metres (A = 10 m );

0 0
0,16 has the unit s/m
3.14
service equipment sound pressure level
the average sound pressure level in the room obtained by the procedure described in 6.3.3 indexes 1 and 2
relate to the position of the measuring points
1 2
 L / 10 L / 10
XY,1 XY,2
L = 10 lg  × 10 + × 10 dB (14)
 
XY
3 3
 
where
L is the weighted sound pressure level at position 1 being the corner position
XY,i
L is the weighted sound pressure level measured at the position 2 being in the reverberant field of
xy,2
the room.
Index x relates to frequency weighting used (x = A or C).
- Index y characterizes there the temporal weighting (y = F, S or equivalent continuous level L )
eq
NOTE The different measures L are not comparable. Only measurement results obtained with the same
XY
measuring parameters should be compared
3.15
standardized service equipment sound pressure level
sound pressure level corresponding to a reference of the reverberation time in the receiving room. This
quantity is denoted by L
XY,nT
L = L - k  dB (15)
XY,nT XY
where
L is the service equipment sound pressure level;
XY
k is the reverberation index
in this case, k is calculated from the arithmetic average of the reverberation times measured for the octave-
bands 500Hz, 1kHz and 2kHz.
K = 10lg 1/3 [(T + T + T )/T ]
500 1000 2000 0
3.16
normalized service equipment sound pressure level
service equipment sound pressure level corresponding to the reference equivalent absorption area in the
receiving room. This quantity is denoted by L
XY,n
A T
0 0
L = L − k − 10 lg dB (16)
XY,n XY
0,16 V
where
L is the service equipment sound pressure level;
XY
V is the volume of the receiving room in cubic metres;
k is the reverberation index;
in this case, k is calculated from the arithmetic average of the reverberation times measured for
the octave-bands 500Hz, 1kHz and 2kHz.
K = 10lg 1/3 [(T + T + T )/T ]
500 1000 2000 0
T is the reference reverberation time (T = 0,5 s);
0 0
A is the reference absorption area (A = 10 m );
0 0
0,16 has the unit s/m
4 Single number quantities
The single number quantities of service equipment noise which can be determined according to this document
are given in Table 1. When reporting measurement results the notation in Table 1 shall be used. The different
quantities can be combined according to e.g. requirements in national building code regulations. Single
number quantities of airborne and impact sound insulation can be obtained according to EN ISO 717-1.
Table 1 — Quantities for service equipment sound pressure level
A-weighted value C- weighted value

1 1
Maximum sound pressure level, time weighting «S»
L L
ASmax CSmax
2 1
L L
ASmax,nT CSmax,nT
3 3
L L
ASmax,n CSmax,n
1 1
Maximum sound pressure level, time weighting «F»
L L
AFmax CFmax
2 2
L L
AFmax,nT CFmax,nT
3 3
L L
AFmax,n CFmax,n
1 1
Equivalent sound pressure level
L L
Aeq Ceq
2 2
L L
Aeq,nT Ceq,nT
3 3
L L
Aeq,n Ceq,n
No standardization/normalization.
Standardization to a reverberation time of 0,5 s.
3 2
Normalization to an equivalent sound absorption area of 10 m .
5 Instrumentation
The measuring service equipment shall comply with the requirements of Clause 6.
The sound source for measuring sound insulation between rooms shall be as omnidirectional as practicable.
In façade measurement, the opening angle shall cover the whole façade. The directivity of the sound source
and the distance to the façade must be such that the variations between pressure levels measured in front of
the façade, for each frequency band of interest, are less 5 dB.
The tapping machine shall comply with the requirements given in Annex A of EN ISO 140-7:1998.
The accuracy of the sound pressure level measurement equipment shall comply with the requirements of
accuracy classes 0 or 1 defined in EN 60651 and EN 60804. The complete measuring system including the
microphone shall be adjusted before each measurement to enable absolute values of sound pressure levels
to be obtained.
For all measurements diffuse field microphones are required. For sound level meters with free field
microphones corrections for accounting the diffuse sound field shall be applied.
Filters shall comply with the requirements defined in EN 61260.
NOTE For pattern evaluation (type testing) and regular verification tests recommended procedures for sound level
meters are given in OIML R58 and R88, for the tapping machine requirements are given in Annex A of EN ISO 140-7:1998.
6 Test procedure and evaluation
6.1 General
The measurements of airborne sound insulation and of impact sound insulation are made in octave bands.
The measurements of service equipment sound pressure levels are made in A-weighted or C-weighted sound
pressure levels. The measurements shall be performed with doors and windows closed and shutters normally
open. Operating cycles and operating conditions for measuring of service equipment noise are given in
Annex B. They shall only be used if they are not opposed to national requirements and regulations.
6.2 Generation of sound field
6.2.1 General
If the difference between the signal level and the background noise level is less than 6 dB, the measured
signal level shall be recorded in the report. A note shall be added to say that the measured receiving room
level was affected by background noise and the corresponding level difference has been underestimated or
than the measurement level (service equipment) has been overestimated by an unknown amount.
No correction for background noise shall be applied.
For measurements of the airborne sound insulation between rooms and the airborne sound insulation of
façades using the loudspeaker method, the sound power of the source should be adjusted so that the sound
pressure level in the receiving room (in each frequency band) is at least 6 dB higher than the background
noise level. This shall be checked by switching the source on and off before starting the measurement.
When measuring the airborne sound insulation of façades by the traffic sound method, the background noise
level in the receiving room cannot easily be assessed. Because of this, steps should be taken to ensure that
the noise level in the receiving room due to sources within the building is as low as practicable. Excessive
background noise from internal sources will lead to an underestimate of the façade insulation. A comment
shall be made in the report if this is thought to have occurred.
6.2.2 Airborne sound insulation between rooms
The sound generated in the source room shall be steady and have a continuous spectrum in the frequency
range considered. Filters with a bandwidth of one octave may be used. When using broad-band noise, the
spectrum of the sound source may be shaped to ensure an adequate signal-to-noise ratio at high frequencies
in the receiving room.
If the sound source enclosure contains more than one loudspeaker operating simultaneously, the
loudspeakers shall be driven in phase. Multiple sound sources may be used simultaneously providing they are
of the same type and are driven at the same level by similar, but uncorrelated, signals.
Place the sound source in a corner of the room opposite the separating element. The distance from the walls
shall be at least 0,5 m. If the source is a single loudspeaker system it should be placed facing the corner.
When testing rooms in a vertical direction, use the lower room as the source room. When testing rooms of
unequal size in a horizontal direction, use the larger room as the source room unless it has been previously
agreed that the test should be in the other direction.
6.2.3 Impact sound insulation between rooms
The impact sound shall be generated by the standard tapping machine (see EN ISO 140-7). The tapping
machine shall be placed in the source room on the diagonal near the centre of the floor. This single position is
sufficient if the floor is isotropic.
In the case of anisotropic floor constructions (with ribs, beams, etc.) add two positions so that the three
o
positions are randomly distributed over the floor area. The hammer connecting line should be orientated at 45
to the direction of the beams or ribs. In these cases, the distance of the tapping machine from the edges of the
floor shall be at least 0,5 m.
6.2.4 Airborne sound insulation of façades
The airborne sound insulation of façades is measured by using an outside loudspeaker or road traffic sound.
The room behind the façade serves as the receiving room.
6.2.4.1 Loudspeaker method
Place the loudspeaker outside the building at a distance d from the façade with the angle of sound incidence
o
as close as possible to 45 (see Figure 1). Choose the position of the loudspeaker and the distance d to the
façade so that the variation of the sound pressure level on the test specimen is minimized. The sound source
is preferably placed on the ground. Alternatively place the sound source as high above the ground as
practically possible. The distance r from the sound source to the centre of the test specimen shall be at least
7 m (d > 5 m) from the façade being tested.

Key
1 Normal to the façade
2 Vertical plane
3 Horizontal plane
4 Loudspeaker
Figure 1 — Geometry of the loudspeaker method
The sound generated shall be steady and have a continuous spectrum in the frequency range considered.
Filters with a bandwidth of one octave band may be used. When using broad-band noise the spectrum of the
sound source may be shaped to ensure an adequate signal-to-noise ratio at high frequencies in the receiving
room.
6.2.4.2 Traffic sound method
The traffic sound method with road traffic as sound source may be used if the sound pressure level is high
enough in relation to the background noise in the receiving room. If the sound is incident on the façade from
different directions and with varying intensity, such as road traffic sound in busy streets, the façade level
difference is obtained from the average sound pressure levels measured simultaneously on both sides of the
façade.
NOTE Due to background noise the traffic sound method is normally limited to measure D < 40 dB.
nT,w
6.3 Measurement of sound pressure levels
6.3.1 Airborne and impact sound insulation between rooms
To determine the insulation against airborne sound,
measure in the source and receiving rooms; to determine
insulation against impact sound, measure only in the
receiving room. In both cases measure the average sound
pressure level in each of the specified octave bands using
an integrating sound level meter. The measurement time
interval shall be approximately 30 s. Stand near the centre
of the floor and face away from the loudspeaker in the
source room or from the separating element in the receiving
room. Hold the sound level meter out at arm's length. Move
o
the microphone four times horizontally through 180 ,
moving the arm up and down in a gentle movement during
the traverse (see Figure 2). Complete the four rotations in a
total time of approximately 30 s. If a parallel octave-band or
real time octave-band sound level meter is not available,
carry out this procedure for each octave band, and read

each L for 30 s band level from the meter to obtain an
eq
estimate of the average octave band levels in the room.
Figure 2 — Example for movement of the
sound level meter
The following separating distances are minimum values and shall be exceeded where practicable:
 0,5 m between any microphone position and room boundaries;
 1,0 m between any microphone position and the sound source.
NOTE Hearing protectors should be worn by the operator when measuring in the source room.
6.3.2 Airborne sound insulation of façades
Place the outdoor microphone at a distance of (2,0 ± 0,2) m from the plane of the façade or at such a larger
distance that the distance to the part of the façade nearest to the road - for instance the balustrade - is at least
1 m. If the sound source is a loudspeaker measure the outdoor sound pressure level with an integration time
of 30 s and the level in the receiving room according to 6.3.1.
If the sound source is the prevailing road traffic, measure the outdoor level and the indoor level simultaneously.
The integration time shall be 60 s and the indoor level is obtained by repeating the procedure of 6.3.1 during
this period. During this measurement period at least 15 vehicles shall have passed.
NOTE Making sound (e.g. of clothes) should be avoided when moving the sound level meter (Figure 2). Sometimes it
may be necessary to use 3 or 5 fixed positions.
6.3.3 Service equipment sound pressure level
Measure the service equipment sound pressure level in the room directly using a sound level meter. Two fixed
positions are used. One position shall be close to the apparent corner with the acoustically hardest surfaces,
preferably in a distance of 0,5 m from the walls. The second position shall be in the reverberant field of the
room. The distance to any sound source (for example: ventilation outlets) shall be at least 1,5 m.
In each position the measurement time interval shall be chosen in accordance with at least one cycle of the
service equipment working under normal conditions. Use three cycles of the service equipment working under
normal conditions. The operation cycles are given in Annex B.
In order to calculate the average sound pressure level according to equation (14) weight the measurement of
the two microphone positions as follows: Take the measurement at the corner position once and the
measurement in the reverberant field twice.
6.4 Frequency range of measurements
The sound pressure levels measured using octave band filters shall cover at least the following midband
frequencies in hertz:
125 Hz 250 Hz 500 Hz 1 000 Hz 2 000 Hz
Sound from service equipment installed is measured in A- or C-weighted sound pressure level with the
specific time weighting.
6.5 Reverberation index data
In the survey method described in this document, the reverberation time (the correction for reverberation time)
may either be based on measurements or estimated with the aid of Table 2 and Table 3.
To make the estimate for unfurnished rooms, Table 2 shall be used to classify the room according to the type
of walls, floor, ceiling and floor covering. Table 3 is then used to find the reverberation index which
corresponds to this classification. For furnished rooms Table 2 can be used directly. Reverberation indices are
given for octave bands, and also for A- and C-weighted sound pressure levels.
Table 3 takes account of room volume, and is valid for rooms typical of those in dwellings. However, it may
also be used for comparable rooms in other types of building.
NOTE 1 The Table is based on a statistical evaluation of reverberation times obtained in dwellings, as typically
constructed in several European countries in the period 1960 to 1980. The standard deviation of the reverberation indices
calculated from these data is approximately 1 dB. Changed construction methods or habitation habits may give rise to
systematic deviations.
Alternatively, the reverberation time may be measured according to the specifications for the survey method
described in ISO/CD 3382-2:2003, 5.2 in octave bands and the reverberation index may be calculated by
using the measured reverberation times according to equation (3). Measurement of reverberation time can be
advantageous if performed only once in a typical room of a building under test which has a large number of
identical rooms (for instance in hotels). For noise measurement of service equipment realised in term of global
weighted level, for calculation of reverberation index k the reverberation time is the average between the data
in the octave bands of 500 Hz, 1 000 Hz and 2 000 Hz.
The tabular values of the reverberation indices are listed in Table 3. Table 3 is valid for a reference
reverberation time T = 0,5 s and for room sizes of up to 150 m . Furnished rooms like living rooms, sleeping
rooms and rooms of similar volume and furniture are considered in one group. Furnished kitchens and
bathrooms are considered separately. Concerning unfurnished rooms the reverberation index depends on the
type of construction as listed in Table 2.
Table 2 — List of symbols representing the type of construction
Unfurnished Soft floor covering Hard floor covering
Floor type light heavy light heavy
Light walls/ceiling a b c d
Heavy walls/ceiling e f g h
"Light wall" is typically a plasterboard or wooden wall mounted on studs. Heavy walls covered with
plasterboard linings shall be considered as light walls.
"Heavy wall" is typically a masonry or concrete block wall without lining.
"Light floor" is typically a floor of wooden planks or boards on timber beams.
"Heavy floor" is typically a concrete slab with or without floating concrete covering.
"Floor covering" is typically carpet (soft), tiles or timber flooring (hard).
If the type of construction is not the same throughout the room, but the areas of different construction are
approximately equal, use the average of the values given for the different construction types. For example: if a
room has a heavy floor with a carpet, three heavy walls, one light wall and a light ceiling, use the average of b
and f. If the areas of different construction are not approximately equal, use the value for the type of
construction having the largest area.
NOTE 2 The reverberation indices for A- and C-weighting were derived by averaging the data in the octave bands
between 500 Hz and 2 000 Hz. This method is appropriate in the cases of receiving room levels without strong
components in the low frequency range. This applies to the measurement of broad-band equipment sound spectra.
Table 3 — Reverberation index data in dB in octave bands and corresponding to A- or C-weighted sound pressure levels
V << 15 15 ≤≤ V << 35
<< ≤≤ <<
Volume V in m
Octave bands in Hz 125 250 500 1 000 2 000 A, C 125 250 500 1 000 2 000 A, C
Furnished rooms:
kitchens 0 0 0 0 0 0 0 0,5 0 0 0 0
bathrooms 1 1 0 0 -0,5 0 1,5 1,5 0,5 0,5 0 0,5
others 0 0 - 0,5 - 0,5 - 1 - 0,5 0 0 0 0 - 0,5 0
Unfurnished rooms:
type: a 0 1 1 1 0 0,5 1 1,5 1,5 1 0,5 1
b 1 2,5 3 2,5 2 2 1 3 3,5 3 2,5 2,5
c 0 2,5 3,5 4 4 4 1 3 4 4,5 4 4,5
d 0 2,5 3 4 4 4 1 3 3,5 4,5 4 4,5
e 3,5 3,5 3,5 3,5 1,5 3,5 3,5 4 4 4 2 4
f 4,5 4,5 4,5 3,5 2,5 3,5 4,5 4,5 4,5 4 3 4
g 3,5 4 4,5 5 5 5 4 5 5 5 5 5,5
h 4 4,5 5 5 4,5 5 4,5 5 5,5 5,5 5 5
Mixed a+e 2 2,5 2,5 2,5 1 2 2,5 3 3 2,5 1,5 2,5
type:
b+f 3 3,5 4 3 2,5 3 3 4 4 3,5 3 3,5
c+g 2 3,5 4 4,5 4,5 4,5 2,5 4 4,5 5 4,5 5
d+h 2 3,5 4 4,5 4,5 4,5 3 4 4,5 5 4,5 5

35 ≤≤ ≤≤  V <<<< 60 60 ≤≤≤≤ V <<<< 150
Volume V in m
Octave bands in Hz A, C A, C
125 250 500 1 000 2 000 125 250 500 1 000 2 000
Furnished rooms
(except bathrooms
0,5 0,5 0,5 0 0 0 0,5 0,5 0,5 0,5 0 0,5
and kitchens)
Unfurnished rooms:
type: a 1 2 2 1,5 1 1,5 1 2,5 2,5 2 1,5 2
b 2 3,5 4 3,5 2,5 3 2,5 4 4,5 3,5 2,5 3,5
c 1,5 3,5 4,5 5 4,5 5 2 4 5 5,5 5 5,5
d 1,5 3,5 4 5 5 5 2 4 4,5 5,5 5,5 5,5
e 4 4 4,5 4 2,5 4 4 4 5 4,5 3 4,5
f 4,5 4,5 4,5 4 3 5 4,5 5 5 4 3 5
g 4,5 5 5,5 5,5 5,5 5,5 5 5,5 6 6 6 6
h 5 5,5 6 5 5,5 5,5 5,5 6 6,5 5,5 6 6
mixed a+e 2,5 3 3,5 3 2 3 2,5 3,5 4 3,5 2,5 3,5
type:
b+f 3,5 4 4,5 4 3 4 3,5 4,5 5 4 3 4,5
c+g 3 4,5 5 5,5 5 5,5 3,5 5 5,5 6 5,5 6
d+h 3,5 4,5 5 5 5,5 5,5 4 5 5,5 5,5 6 6
6.6 Precision
It is required that the measurement procedure gives satisfactory reproducibility. This can be determined in
accordance with the method shown in EN 20140-2 and shall be checked from time to time, particularly when a
change is made in procedure or instrumentation.
NOTE Numerical requirements for reproducibility of the engineering methods for airborne and impact sound
insulation are given in EN 20140-2. It is estimated that the results from the survey test method and the corresponding
engineering method differ within ± 2 dB.
7 Expression of results
7.1 Airborne sound insulation
For the statement of the airborne sound insulation, the values of the standardized level difference D , the
nT
normalized level difference D or the apparent sound reduction index R´, R´ , R´ shall be given at all
n 45° tr,s
frequencies of measurement, to one decimal place, in tabular form and in the form of a curve. Graphs in the
test report shall show the value in decibels plotted against frequency on a logarithmic scale, and the following
dimensions shall be used:
 15 mm for an octave band;
 20 mm for 10 dB.
The use of a form in accordance with Annex A is preferred. Being a short version of the test report it shall
include all information of importance regarding the test object, the test procedure and the test results.
For the evaluation of single-number ratings from the octave-band results, see EN ISO 717-1. It shall be clearly
stated that the evaluation has been based on a result obtai
...
