ASTM D1863/D1863M-05(2018)
(Specification)Standard Specification for Mineral Aggregate Used on Built-Up Roofs
Standard Specification for Mineral Aggregate Used on Built-Up Roofs
ABSTRACT
This specification covers the standards for the quality and grading of crushed stone, crushed slag, and water-worn gravel intended for use as coarse mineral aggregate on built-up roofs. The crushed stone and gravel shall be hard, durable, opaque, and free of foreign substances. The crushed slag, on the other hand, shall be hard, air-cooled, and free of as well of any foreign particles. The specimens shall comply with the gradation and physical requirements prescribed herein and shall undergo testing which include a gradation test, moisture test, unit mass test, dust, and hardness test.
SCOPE
1.1 This specification covers the quality and grading of crushed stone, crushed slag, and water-worn gravel suitable for use as coarse mineral aggregate on built-up roofs.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Apr-2018
- Technical Committee
- D08 - Roofing and Waterproofing
Relations
- Replaces
ASTM D1863/D1863M-05(2011)e1 - Standard Specification for Mineral Aggregate Used on Built-Up Roofs - Effective Date
- 01-May-2018
- Effective Date
- 15-Nov-2023
- Refers
ASTM C29/C29M-23 - Standard Test Method for Bulk Density (“Unit Weight”) and Voids in Aggregate - Effective Date
- 01-Oct-2023
- Effective Date
- 01-Nov-2019
- Effective Date
- 01-Jan-2017
- Effective Date
- 01-Feb-2016
- Effective Date
- 01-Feb-2016
- Effective Date
- 15-Dec-2013
- Effective Date
- 01-Oct-2013
- Effective Date
- 01-Feb-2013
- Effective Date
- 01-Jan-2013
- Refers
ASTM D448-12 - Standard Classification for Sizes of Aggregate for Road and Bridge Construction - Effective Date
- 01-Dec-2012
- Effective Date
- 01-Jan-2011
- Refers
ASTM D1865/D1865M-09 - Standard Test Method for Hardness of Mineral Aggregate Used on Built-Up Roofs - Effective Date
- 01-Dec-2009
- Effective Date
- 01-Dec-2009
Overview
ASTM D1863/D1863M-05(2018) is the internationally recognized standard specification for mineral aggregate used on built-up roofs, published by ASTM International. This standard outlines quality, grading, and testing requirements for crushed stone, crushed slag, and water-worn gravel to ensure their suitability as coarse mineral aggregate in roofing applications. Complying with this standard is essential for achieving durable, reliable built-up roof systems that meet industry and project requirements.
Key Topics
- Materials Covered:
- Crushed stone and gravel must be hard, durable, opaque, and free of clay, loam, sand, or any foreign substances.
- Crushed slag must be hard, air-cooled (from blast-furnace or electric furnace phosphate slag), and free of foreign matters.
- Quality and Grading:
- Aggregates must conform to specific gradation requirements for size and distribution.
- Physical properties, including moisture content, unit mass, dust content, and hardness, must meet prescribed limits.
- Testing and Sampling:
- Aggregates are subject to a series of tests, such as gradation tests (sieve analysis), moisture determination, bulk density (unit weight), dust content, and hardness.
- Procedures for sampling in bulk or smaller containers are defined to ensure representative quality.
- Inspection and Certification:
- Inspection and certification of mineral aggregates are agreed upon between the purchaser and supplier, ensuring materials consistently meet specification requirements.
- Units of Measurement:
- The standard recognizes both SI (metric) and inch-pound units, which are not interchangeable and must be used independently within a project.
Applications
ASTM D1863/D1863M plays a crucial role in the construction and maintenance of built-up roofing (BUR) systems, which are widely used for flat and low-slope commercial, industrial, and institutional roofs. Key applications include:
- Protection and Surfacing: Coarse mineral aggregates are embedded in bitumen flood coats to provide protection against UV radiation and physical damage.
- Ballast and Weight: Aggregates add weight, aiding in wind uplift resistance and providing a stable, durable roof surface.
- Fire Resistance: The use of mineral aggregate enhances the fire-resistant properties of roofing assemblies.
- Longevity of Roofing: Specified aggregate quality and grading contribute to the long-term performance and lifespan of built-up roof installations.
- Compliance and Specification: Roofing contractors, architects, materials suppliers, and quality assurance teams reference this standard to ensure materials meet high-performance criteria and regulatory requirements.
Related Standards
To support implementation and verification, ASTM D1863/D1863M references several related ASTM standards:
- ASTM C29/C29M: Test Method for Bulk Density (“Unit Weight”) and Voids in Aggregate
- ASTM C33/C33M: Specification for Concrete Aggregates
- ASTM C117: Test Method for Materials Finer than 75-µm by Washing
- ASTM C136/C136M: Test Method for Sieve Analysis of Fine and Coarse Aggregates
- ASTM D75/D75M: Practice for Sampling Aggregates
- ASTM D448: Classification for Sizes of Aggregate
- ASTM D1864/D1864M: Test Method for Moisture in Mineral Aggregate
- ASTM D1865/D1865M: Test Method for Hardness of Mineral Aggregate
- ASTM E11: Specification for Woven Wire Test Sieve Cloth and Test Sieves
For organizations seeking robust built-up roofing performance and compliance, referencing and adopting ASTM D1863/D1863M is essential for material specification, procurement, and quality management. Adherence to this standard ensures aggregate materials deliver optimal function and durability for modern roofing systems.
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Building products evaluation and certification.
QAI Laboratories
Building and construction product testing and certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
ASTM D1863/D1863M-05(2018) is a technical specification published by ASTM International. Its full title is "Standard Specification for Mineral Aggregate Used on Built-Up Roofs". This standard covers: ABSTRACT This specification covers the standards for the quality and grading of crushed stone, crushed slag, and water-worn gravel intended for use as coarse mineral aggregate on built-up roofs. The crushed stone and gravel shall be hard, durable, opaque, and free of foreign substances. The crushed slag, on the other hand, shall be hard, air-cooled, and free of as well of any foreign particles. The specimens shall comply with the gradation and physical requirements prescribed herein and shall undergo testing which include a gradation test, moisture test, unit mass test, dust, and hardness test. SCOPE 1.1 This specification covers the quality and grading of crushed stone, crushed slag, and water-worn gravel suitable for use as coarse mineral aggregate on built-up roofs. 1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers the standards for the quality and grading of crushed stone, crushed slag, and water-worn gravel intended for use as coarse mineral aggregate on built-up roofs. The crushed stone and gravel shall be hard, durable, opaque, and free of foreign substances. The crushed slag, on the other hand, shall be hard, air-cooled, and free of as well of any foreign particles. The specimens shall comply with the gradation and physical requirements prescribed herein and shall undergo testing which include a gradation test, moisture test, unit mass test, dust, and hardness test. SCOPE 1.1 This specification covers the quality and grading of crushed stone, crushed slag, and water-worn gravel suitable for use as coarse mineral aggregate on built-up roofs. 1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. 1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D1863/D1863M-05(2018) is classified under the following ICS (International Classification for Standards) categories: 91.100.50 - Binders. Sealing materials. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D1863/D1863M-05(2018) has the following relationships with other standards: It is inter standard links to ASTM D1863/D1863M-05(2011)e1, ASTM C117-23, ASTM C29/C29M-23, ASTM D75/D75M-19, ASTM C29/C29M-17, ASTM C33/C33M-16e1, ASTM C29/C29M-16, ASTM D75/D75M-13, ASTM E11-13, ASTM C117-13, ASTM C33/C33M-13, ASTM D448-12, ASTM C33/C33M-11, ASTM D1865/D1865M-09, ASTM D1864/D1864M-89(2009)e1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D1863/D1863M-05(2018) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

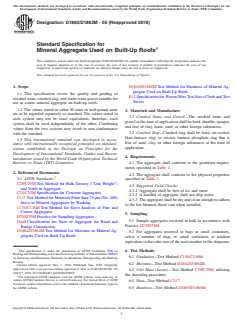

Standards Content (Sample)
