EN 60945:2002

SLOVENSKI SIST EN 60945:2003
STANDARD
december 2003
Maritime navigation and radiocommunication equipment and systems - General
requirements - Methods of testing and required test results (IEC 60945:2002)
ICS 5HIHUHQþQDãWHYLOND
47.020.70
! "#$%!&!%’()*#+’
EUROPEAN STANDARD EN 60945
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2002

ICS 47.020.70 Supersedes EN 60945:1997

English version
Maritime navigation and radiocommunication equipment and systems -
General requirements -
Methods of testing and required test results
(IEC 60945:2002)
Matériels et systèmes de navigation  Navigations-
et de radiocommunication maritimes - und Funkkommunikationsgeräte
Spécifications générales - und -systeme für die Seeschifffahrt -
Méthodes d'essai et résultats exigibles Allgemeine Anforderungen -
(CEI 60945:2002) Prüfverfahren und
geforderte Prüfergebnisse
(IEC 60945:2002)
This European Standard was approved by CENELEC on 2002-10-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2002 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60945:2002 E

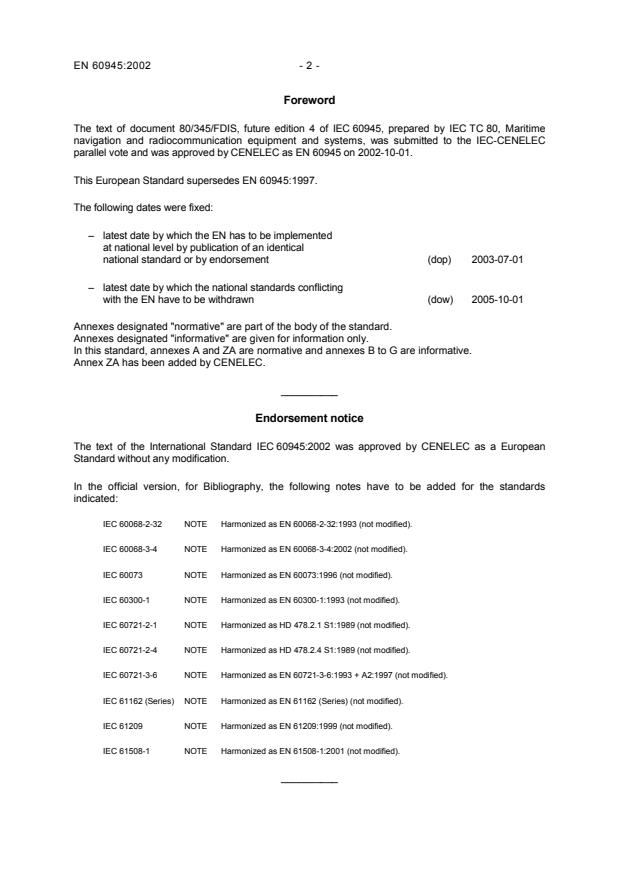

Foreword
The text of document 80/345/FDIS, future edition 4 of IEC 60945, prepared by IEC TC 80, Maritime
navigation and radiocommunication equipment and systems, was submitted to the IEC-CENELEC
parallel vote and was approved by CENELEC as EN 60945 on 2002-10-01.
This European Standard supersedes EN 60945:1997.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2003-07-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2005-10-01
Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, annexes A and ZA are normative and annexes B to G are informative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60945:2002 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60068-2-32 NOTE Harmonized as EN 60068-2-32:1993 (not modified).
IEC 60068-3-4 NOTE Harmonized as EN 60068-3-4:2002 (not modified).
IEC 60073 NOTE Harmonized as EN 60073:1996 (not modified).
IEC 60300-1 NOTE Harmonized as EN 60300-1:1993 (not modified).
IEC 60721-2-1 NOTE Harmonized as HD 478.2.1 S1:1989 (not modified).
IEC 60721-2-4 NOTE Harmonized as HD 478.2.4 S1:1989 (not modified).
IEC 60721-3-6 NOTE Harmonized as EN 60721-3-6:1993 + A2:1997 (not modified).
IEC 61162 (Series) NOTE Harmonized as EN 61162 (Series) (not modified).
IEC 61209 NOTE Harmonized as EN 61209:1999 (not modified).
IEC 61508-1 NOTE Harmonized as EN 61508-1:2001 (not modified).
__________
- 3 - EN 60945:2002
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
IEC 60050-161 1990 International Electrotechnical - -
A1 1997 Vocabulary (IEV) - -
A2 1998 Chapter 161: Electromagnetic - -
compatibility
IEC 60068-2-1 1990 Environmental testing EN 60068-2-1 1993
A1 1993 Part 2: Tests - Tests A: Cold A1 1993
A2 1994 A2 1994
1)
IEC 60068-2-2 1974 Part 2: Tests - Tests B: Dry heat EN 60068-2-2 1993
A1 1993 A1 1993
A2 1994 A2 1994
IEC 60068-2-5 1975 Part 2: Tests - Test Sa: Simulated EN 60068-2-5 1999
solar radiation at ground level

IEC 60068-2-6 1995 Part 2: Tests - Test Fc: Vibration EN 60068-2-6 1995
+ corr. March 1995 (sinusoidal)

IEC 60068-2-9 1975 Part 2: Tests - Guidance for solar
+ A1 1984 radiation testing EN 60068-2-9 1999
A1/corr. August 1989
IEC 60068-2-30 1980 Part 2: Tests - Test Db and guidance:
+ A1 1985 Damp heat, cyclic (12 + 12 hour cycle) EN 60068-2-30 1999

IEC 60068-2-48 1982 Part 2: Tests - Guidance on the EN 60068-2-48 1999
application of the tests of IEC 60068
to simulate the effects of storage

IEC 60068-2-52 1996 Part 2: Tests - Test Kb: Salt mist, - -
corr. July 1996 cyclic (sodium chloride solution)

IEC 60071-2 1996 Insulation co-ordination EN 60071-2 1997
Part 2: Application guide
1)
EN 60068-2-2 includes supplement A:1976 to IEC 60068-2-2.

Publication Year Title EN/HD Year
IEC 60092-101 1994 Electrical installations in ships - -
A1 1995 Part 101: Definitions and general
A1/corr. November 1996 requirements

IEC 60417 Series Graphical symbols for use on EN 60417 Series
equipment
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code) + corr. May 1993
A1 1999 A1 2000
IEC 60533 1999 Electrical and electronic installations - -
in ships - Electromagnetic
compatibility
IEC 60651 1979 Sound level meters EN 60651 1994
A1 1993 A1 1994
IEC 61000-4-2 1995 Electromagnetic compatibility (EMC) EN 61000-4-2 1995
Part 4-2: Testing and measurement
techniques - Electrostatic discharge
immunity test
2)
IEC 61000-4-3 1995 Part 4-3: Testing and measurement EN 61000-4-3 1996
(mod) techniques - Radiated, radio-
frequency, electromagnetic field
immunity test
IEC 61000-4-4 1995 Part 4-4: Testing and measurement EN 61000-4-4 1995
techniques - Electrical fast
transient/burst immunity test
IEC 61000-4-5 1995 Part 4-5: Testing and measurement EN 61000-4-5 1995
techniques - Surge immunity test

IEC 61000-4-6 1996 Part 4-6: Testing and measurement EN 61000-4-6 1996
techniques - Immunity to conducted
disturbances, induced by radio-
frequency fields
IEC 61000-4-8 1993 Part 4-8: Testing and measurement EN 61000-4-8 1993
techniques - Power frequency
magnetic field immunity test
IEC 61000-4-11 1994 Part 4-11: Testing and measurement EN 61000-4-11 1994
techniques - Voltage dips, short
interruptions and voltage variations
immunity tests
CISPR 16-1 1999 Specification for radio disturbance and - -
immunity measuring apparatus and
methods
Part 1: Radio disturbance and
immunity measuring apparatus
2)
EN 61000-4-3:1996 is superseded by EN 61000-4-3:2002, which is based on IEC 61000-4-3:2002.

- 5 - EN 60945:2002
Publication Year Title EN/HD Year
ISO 694 2000 Ships and marine technology - EN ISO 694 2001
Positioning of magnetic compasses in
ships
ISO 3791 1976 Office machines and data processing - -
equipment - Keyboard layouts for
numeric applications
IMO SOLAS 1997 International Convention for the Safety - -
of Life at Sea (SOLAS)
IMO Torremolinos 1993 Modification of the Torremolinos - -
Protocol International Convention for the Safety
of Fishing Vessels:1977
IMO MSC/ 1997 Standard Marine Communication - -
Circular 794 Phrases (SMCPs)
IMO Resolution 1991 General requirements for shipborne - -
A.694 radio equipment forming part of the
global maritime distress and safety
system (GMDSS) and for electronic
navigational aids
IMO Resolution 1995 Performance standards for shipborne - -
A.803 VHF radio installations capable of
voice communication and digital
selective calling
IMO Resolution 1995 General requirements for - -
A.813 electromagnetic compatibility (EMC)
for all electrical and electronic ship's
equipment
ITU-T 1993 Arrangement of digits, letters and - -
Recommendation symbols on telephones and other
E.161 devices that can be used for gaining
access to a telephone network
INTERNATIONAL IEC
STANDARD
Fourth edition
2002-08
Maritime navigation and radiocommunication
equipment and systems –
General requirements –
Methods of testing and required test results
 IEC 2002 Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
PRICE CODE
XC
Commission Electrotechnique Internationale
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

60945  IEC:2002 – 3 –
CONTENTS
FOREWORD . 9
INTRODUCTION .13
1 Scope .15
2 Normative references.17
3 Definitions and abbreviations .21
3.1 Definitions .21
3.2 Abbreviations used in this standard .23
3.3 IMO performance standards.23
4 Minimum performance requirements .27
4.1 General .27
4.2 Design and operation.29
4.3 Power supply.39
4.4 Durability and resistance to environmental conditions.39
4.5 Interference .41
4.6 Safety precautions.41
4.7 Maintenance.43
4.8 Equipment manuals .43
4.9 Marking and identification .45
5 Methods of testing and required test results.45
5.1 General .45
5.2 Test conditions .47
5.3 Test results.51
6 Operational checks (all equipment categories).51
6.1 Ergonomics and HMI .51
6.2 Hardware.59
6.3 Software .61
6.4 Inter-unit connection .63
7 Power supply – Methods of testing and required test results .63
7.1 Extreme power supply .63
7.2 Excessive conditions .63
7.3 Power supply short-term variation.65
7.4 Power supply failure .65
8 Durability and resistance to environmental conditions – Methods of testing and
required test results .65
8.1 General .65
8.2 Dry heat.67
8.3 Damp heat.69
8.4 Low temperature.71
8.5 Thermal shock (portable equipment).73
8.6 Drop (portable equipment) .75
8.7 Vibration (all equipment categories).77
8.8 Rain and spray (exposed equipment).79
8.9 Immersion.79
8.10 Solar radiation (portable equipment) .83
8.11 Oil resistance (portable equipment) .85
8.12 Corrosion (salt mist) (all equipment categories) .85

60945  IEC:2002 – 5 –
9 Electromagnetic emission – Methods of testing and required test results .87
9.1 General .87
9.2 Conducted emissions (all equipment categories except portable).89
9.3 Radiated emissions from enclosure port (all equipment categories except
submerged) .91
10 Immunity to electromagnetic environment – Methods of testing and required test
results .93
10.1 General .93
10.2 Radio receiver equipment .95
10.3 Immunity to conducted radio frequency disturbance.97
10.4 Immunity to radiated radiofrequencies  (all equipment categories except
submerged ) .97
10.5 Immunity to fast transients on a.c. power, signal and control lines (all
equipment categories except portable) .99
10.6 Immunity to surges on a.c. power lines (all equipment categories except
portable).101
10.7 Immunity to power supply short-term variation (all equipment categories
except portable).101
10.8 Immunity to power supply failure (all equipment categories except portable).103
10.9 Immunity to electrostatic discharge (all equipment categories except
submerged) .103
11 Special purpose tests – Methods of testing and required test results .105
11.1 Acoustic noise and signals (all equipment intended for installation in
wheelhouses and bridge wings) .105
11.2 Compass safe distance (all equipment categories except submerged) .107
12 Safety precautions – Methods of testing and required test results (all equipment
categories).109
12.1 Protection against accidental access to dangerous voltages .109
12.2 Electromagnetic radio frequency radiation .109
12.3 Emission from visual display unit (VDU).111
12.4 X-radiation.113
13 Maintenance (all equipment categories).115
14 Equipment manuals (all equipment categories) .115
15 Marking and identification (all equipment categories).115
Annex A (normative) IMO Resolution A.694(17) Adopted on 6 November 1991 .141
Annex B (informative) Environmental conditions for ships .151
Annex C (informative) EMC requirements for ships .157
Annex D (informative) Examples of equipment by environmental class.167
Annex E (informative) Test Report .169
Annex F (informative) Cross-references between the requirements of IMO Resolution
A.694 and the tests/checks in this standard.171
Annex G (informative) Summary of significant changes to test requirements from
Edition 3 of IEC 60945 .173
Bibliography.175

60945  IEC:2002 – 7 –
Figure 1 – Examples of ports referred to in electromagnetic emission and immunity tests .117
Figure 2 – Radio frequency terminal voltage limits for conducted emissions.117
Figure 3 – Artificial mains networks for tests for conducted emissions.119
Figure 4 – Limiting values for radiated emissions from enclosure ports .121
Figure 5 – Schematic set-up for immunity test to conducted radio-frequency disturbance.123
Figure 6 – Example of a simplified diagram for CDN used with unscreened supply
(mains) lines, in tests for conducted radio frequency disturbance .125
Figure 7 – Example of suitable test facility for immunity to radiated radiofrequencies .127
Figure 8 – General test set-up for immunity to fast transient/burst.129
Figure 9 – Test set-up for immunity to surges on power lines .131
Figure 10 – Power supply variations for tests of immunity to power supply short-term
transients .133
Figure 11 – Example of test set-up for floor-standing equipment, for tests of immunity
to electrostatic discharge (ESD) showing typical positions of the ESD generator.135
Figure 12 – Example of test set-up for table-top equipment, for tests of immunity to
electrostatic discharge (ESD) showing typical positions of the ESD generator.137
Figure 13 – Arrangements for all-round alternating field measurements .139
Table 1 – Extreme power supply variation .49
Table 2 – Schedule of performance tests and checks.63
Table 3 – Durability and resistance to environmental conditions.67
Table 4 – Spectral energy distribution and permitted tolerances.85
Table 5 – Electromagnetic emission .89
Table 6 – Electromagnetic immunity.95
Table C.1 – Characteristics of radio equipment .159
Table C.2 – Field strengths experienced on ships generated by the ships transmitters.163

60945  IEC:2002 – 9 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MARITIME NAVIGATION AND RADIOCOMMUNICATION
EQUIPMENT AND SYSTEMS –
General requirements –
Methods of testing and required test results
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60945 has been prepared by IEC technical committee 80: Maritime
navigation and radiocommunication equipment and systems.
This fourth edition cancels and replaces the third edition published in 1996 and constitutes a
technical revision.
The text of this standard is based on the following documents:
FDIS Report on voting
80/345/FDIS 80/349/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
Annex A forms an integral part of this standard.
Annexes B, C, D, E, F, and G are for information only.

60945  IEC:2002 – 11 –
The committee has decided that the contents of this publication will remain unchanged until 2007.
At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
60945  IEC:2002 – 13 –
INTRODUCTION
IEC 945 was originally produced to give test methods and, where appropriate, limit values to
the IMO Resolution A.574(14) which was a recommendation on general requirements for
electronic navigational aids. (It has subsequently been replaced, see below.) The tests
dealing with electromagnetic immunity could not be produced in time for the publication of the
original standard, and these were added later in 1992 as amendment 1.
In 1991 the IMO, when discussing the changes that would arise with the introduction of the
global maritime distress and safety system (GMDSS), noted that in future, radio equipment
would be installed on the bridge of a vessel alongside the navigation equipment instead of in
a special radio room as hitherto. The IMO consequently withdrew Resolution A.574(14), and a
corresponding Resolution A.569(14) dealing with the general requirements of radio
equipment, and replaced them with IMO Resolution A.694(17). A second edition of IEC 945
was rapidly prepared to reflect this change.
The third edition of IEC 945 in 1996 was a complete revision which aligned the test methods
with appropriate other IEC standards and introduced, wherever possible, the requirements of
the classification societies. The scope was extended to make the standard applicable
additionally to other equipment installed on and around the bridge of a ship with regard to
EMC. A new class of equipment – “portable” – was added, together with better definitions of
operational tests which involve subjective judgement and descriptions of operational and
durability aspects of software.
This fourth edition (now IEC 60945) extends the detail of operational tests particularly for
equipment which is operated through software menus. This has been derived from an
exhaustive investigation of appropriate references as described in the Bibliography. The
layout of clause 4 (Minimum performance requirements) has been changed to give a better
grouping of ergonomics, hardware and software requirements.
The EMC tests have been revised with the frequency range having been extended from 1 GHz
to 2 GHz.
Clarifications to the text of the third edition have been added where experience has shown a
need and the references have been updated.
A comparison of the test requirements in the third and fourth editions is given in annex G to
assist manufacturers and test houses in the use of the new edition.

60945  IEC:2002 – 15 –
MARITIME NAVIGATION AND RADIOCOMMUNICATION
EQUIPMENT AND SYSTEMS –
General requirements –
Methods of testing and required test results
1 Scope
This International Standard assists in meeting a requirement of the International Convention
for Safety of Life at Sea (SOLAS), adopted by the International Maritime Organization (IMO),
that the radio equipment defined in chapters III and IV, and the navigation equipment defined
in chapter V of the Convention, be type-approved by administrations to conform with
performance standards not inferior to those adopted by the IMO. (Administrations are defined
by the IMO as governments of the states whose flags the ships are entitled to fly.)
The performance standard for general requirements for shipborne radio equipment and
electronic navigation aids that has been adopted by the IMO is given in IMO Resolution A.694
and is reproduced in this standard as annex A, which forms the basis for this standard.
Reference is made, where appropriate, to IMO Resolutions A.694 and A.813 and all
subclauses whose wording is identical to that in the resolutions are printed in italics.
This standard specifies minimum performance requirements, methods of testing and required
test results for general requirements which can be applied to those characteristics common to
all equipment described hereunder:
a) shipborne radio equipment forming part of the global maritime distress and safety system
required by the International Convention for Safety of Life at Sea (SOLAS) as amended,
and by the Torremolinos International Convention for the Safety of Fishing Vessels as
amended;
b) shipborne navigational equipment required by the International Convention for Safety of
Life at Sea (SOLAS) as amended, and by the Torremolinos International Convention for
the Safety of Fishing Vessels as amended, and to other navigational aids, where
appropriate; and
c) for EMC only, all other bridge-mounted equipment, equipment in close proximity to
receiving antennas, and equipment capable of interfering with safe navigation of the ship
and with radio-communications (see IMO Resolution A.813).
NOTE For EMC, this standard is in the IEC category “product family”.
The requirements of this standard are not intended to prevent the use of new techniques in
equipment and systems, provided the facilities offered are not inferior to those stated.

60945  IEC:2002 – 17 –
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-161:1990, International Electrotechnical Vocabulary (IEV) – Chapter 161:
Electromagnetic compatibility
Amendment 1 (1997)
Amendment 2 (1998)
IEC 60068-2-1:1990, Environmental testing – Part 2: Tests – Tests A: Cold
Amendment 1 (1993)
Amendment 2 (1994)
IEC 60068-2-2:1974, Environmental testing – Part 2: Tests – Tests B: Dry heat
Amendment 1 (1993)
Amendment 2 (1994)
IEC 60068-2-5:1975, Environmental testing – Part 2: Test Sa: Simulated solar radiation at
ground level
IEC 60068-2-6:1995, Environmental testing – Part 2: Test Fc: Vibration (sinusoidal)
Corrigendum 1 (1995)
IEC 60068-2-9:1975, Environmental testing – Part 2: Guidance for solar radiation testing
Amendment 1 (1984) Corrigendum 1 (1989)
IEC 60068-2-30:1980, Environmental testing – Part 2: Test Db and guidance: Damp heat,
cyclic (12 + 12-hour cycle)
Amendment 1 (1985)
IEC 60068-2-48:1982, Environmental testing – Part 2: Guidance on the application of the
tests of IEC 60068 to simulate the effects of storage
IEC 60068-2-52:1996, Environmental testing – Part 2: Test Kb: Salt mist, cyclic (sodium
chloride solution)
Corrigendum 1 (1996)
IEC 60071-2:1996, Insulation co-ordination – Part 2: Application guide
IEC 60092-101:1994, Electrical installations in ships – Part 101: Definitions and general
requirements
Amendment 1 (1995)
Corrigendum 1 (1996)
IEC 60417(all parts), Graphical symbols for use on equipment
IEC 60529:1989, Degrees of protection provided by enclosures (IP code)
Amendment 1 (1999)
IEC 60533:1999, Electrical and electronic installations in ships – Electromagnetic
compatibility
IEC 60651:1979, Sound level meters
Amendment 1 (1993)
60945  IEC:2002 – 19 –
IEC 61000-4-2:1995, Electromagnetic compatibility (EMC) – Part 4: Testing and measurement
techniques – Section 2: Electrostatic discharge immunity test – Basic EMC publication
IEC 61000-4-3:1995, Electromagnetic compatibility (EMC) – Part 4: Testing and measurement
techniques – Section 3: Radiated, radio frequency, electromagnetic field immunity test
IEC 61000-4-4:1995, Electromagnetic compatibility (EMC) – Part 4: Testing and measurement
techniques – Section 4: Electrical fast transient/burst immunity test – Basic EMC publication
IEC 61000-4-5:1995, Electromagnetic compatibility (EMC) – Part 4: Testing and measurement
techniques – Section 5: Surge immunity test
IEC 61000-4-6:1996, Electromagnetic compatibility (EMC) – Part 4: Testing and measurement
techniques – Section 6: Immunity to conducted disturbances, induced by radio-frequency
fields
IEC 61000-4-8:1993, Electromagnetic compatibility (EMC) – Part 4: Testing and measurement
techniques – Section 8: Power frequency magnetic field immunity test – Basic EMC
publication
IEC 61000-4-11:1994, Electromagnetic compatibility (EMC) – Part 4: Testing and
measurement techniques – Section 11: Voltage dips, short interruptions and voltage
variations immunity tests
CISPR 16-1:1999, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1: Radio disturbance and immunity measuring apparatus
ISO 694:2000, Ships and marine technology – Positioning of magnetic compasses in ships
ISO 3791:1976, Office machines and data processing equipment – Keyboard layouts for
numeric applications
IMO Convention for Safety of Life at Sea (SOLAS):1997
IMO Torremolinos Convention for the Safety of Fishing Vessels, 1977, as modified by the
Torremolinos Protocol of 1993
IMO MSC/Circ.794 IMO Standard Marine Communication Phrases (SMCPs):1997
IMO Resolution A.694:1991, General requirements for shipborne radio equipment forming part
of the global maritime distress and safety system and for electronic navigational aids
IMO Resolution A.803:1995, Performance standards for shipborne VHF radio installations
capable of voice communication and digital selective calling
IMO Resolution A.813:1995, General requirements for electromagnetic compatibility (EMC) for
all electrical and electronic ship’s equipment
ITU-T Recommendation E.161:1993, Arrangement of digits, letters and symbols on
telephones and other devices that can be used for gaining access to a telephone network
NOTE A bibliography of informative references is given at the end of this standard.

60945  IEC:2002 – 21 –
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this International Standard, the following definitions apply:
3.1.1
electronic navigational aid
an electronic item, for example instrument, device or chart, carried on board and intended to
assist the navigation of a craft
3.1.2
maintenance
repair or replacement of defective parts or corresponding corrections to software. Minor
changes and improvements to existing functionality are considered to be maintenance but not
the addition of new functionality
3.1.3
operational check
a check by a suitably qualified person to confirm that the equipment complies with the
operational requirements in this standard or in the equipment standard
3.1.4
performance check
a short functional test carried out during or after a technical test to confirm that the equipment
operates
3.1.5
performance check (EMC)
a short functional test carried out during or after an EMC test to confirm that the equipment
complies with the required immunity performance criteria
3.1.6
performance test
a measurement or a group of measurements carried out during or after a technical test to
confirm that the equipment complies with selected parameters as defined in the equipment
standard
3.1.7
pre-conditioning
the treatment of a specimen with the object of removing or partly counteracting the effects of
its previous history
NOTE 1 Where pre-conditioning is called for, it is the first process in the test procedure.
NOTE 2 It may be effected by subjecting the specimen to climatic, electrical, or any other conditions
required by the relevant specification in order that the properties of the specimen may be stabilised before
measurements and test.
3.1.8
product family EMC standard
definition of specific EM requirements and test procedures dedicated to particular product
families. It applies the IEC basic standards, is co-ordinated with IEC generic standards, and
has precedence over IEC generic standards.
3.1.9
technical test
each test for which a repeatable method of measurement is defined in this standard or in the
equipment standard
60945  IEC:2002 – 23 –
3.2 Abbreviations used in this standard
a.c. Alternating current
AE Auxiliary equipment
ASTM American Society for Testing and Materials
CDN Coupling and decoupling network
CISPR International special committee on radio interference
d.c. Direct current
EFT/B Electrical fast transients/bursts
EMC Electromagnetic compatibility
e.m.f. Electromotive force
ESD Electrostatic discharge
EUT Equipment under test
HMI Human machine interface
IMO International Maritime Organization
ISO International Organization for Standardization
ITU International Telecommunications Union
PC Performance check
PT Performance test
r.m.s. Root mean square
SOLAS International Convention for Safety of Life at Sea
SMCPs Standard Marine Communication Phrases
VCP Vertical coupling plane
VDU Visual display unit
3.3 IMO performance standards
For the purpose of interpreting IMO performance standards the following definitions apply:
3.3.1
accessible; readily; easily
affording unrestricted access appropriate to the function served. Access for the operation
shall not require the use of tools, and shall be gained comfortably from the operator’s
assigned work station. Access for maintenance is not subject to these restrictions, but should
not require the removal of other fixtures or the use of special aids to reach the point of access
3.3.2
adjustments; normal
adjustments made by an operator in the course of equipment usage to maintain its operational
efficiency
3.3.3
atmosphere; satisfactory
an atmosphere suitable for the preservation, safety and comfort of occupying material and/or
personnel
60945  IEC:2002 – 25 –
3.3.4
audible; clearly
of sufficient amplitude and characteristics relative to the ambient noise environment to alert
a person with normal hearing within a prescribed area
3.3.5
conspicuous/prominent/clearly visible
of good visibility by virtue of position, size or contrast with surroundings
3.3.6
marked; clearly
marked in a conspicuous place with information which can be easily seen and understood
by qualified personnel
3.3.7
means; all practicable
means within accepted practice, or of a similar implementation standard, for the equipment
or function concerned
3.3.8
observable; readily
affording unrestricted visibility of legible information to an operator at his assigned (not
necessarily fixed) work station
3.3.9
operable; readily
operable without difficulty regarding access to controls, action required and indication
of response
3.3.10
qualified; suitably
trained and experienced in the operation of specified equipment
3.3.11
removable/renewable/replaceable; easily
capable of removal, etc. by qualified personnel on board ship with the use of tools,
if necessary, but without the need to disturb other equipment
3.3.12
time; adequate
sufficient time for the execution of a function by equipment with a qualified operator
3.3.13
time; limited
the maximum permitted time for the execution of a function. (must be compatible with
adequate time)
3.3.14
ventilated; adequately
maintaining a satisfactory atmosphere (as previously defined) or environment within a
compartment or equipment
60945  IEC:2002 – 27 –
4 Minimum performance requirements
4.1 General
4.1.1 Introduction
All equipment shall be subjected to all the appropriate tests in this standard unless otherwise
specified in the relevant equipment standard, with the following exceptions:
a) the solar radiation test, the oil test and the corrosion test shall be waived where the
manufacturer is able to produce evidence that the components, materials and finishes
employed in the equipment would satisfy the test;
b) the safety test for visual display units (VDU) shall be waived where the manufacturer is
able to produce evidence that the VDU would satisfy the tests;
c) the X-radiation test shall be waived where the manufacturer is able to produce evidence
that the equipment would satisfy the test.
The relevant equipment standard referred to above shall contain the following information
which is required for the conduct of tests in this standard:
– equipment category (see 4.4);
– performance test (see 5.1);
– performance check (see 5.1);
– pre-conditioning for environmental tests (see 8.1).
In order to assist administrations in granting type approval as required by SOLAS, the
laboratory or test facility conducting technical tests shall be approved for this purpose, and
shall conform to appropriate international standards concerning calibration and quality control.
Operational checks, particularly those involving subjective judgement, shall be conducted by
personnel having appropriate qualifications and nautical knowledge.
Requirements and the related tests are cross-referenced in annex F.
4.1.2 General requirements
(A.694/1.2) Where an equipment provides a facility which is additional to the minimum
requirements of both this standard and the relevant equipment standard, the operation and,
as far as is reasonably practicable, the malfunction of such additional facility shall not
degrade the performance of the equipment.
(A.694/2) Equipment shall be installed in such a manner that it is capable of meeting the
requirements of applicable performance standards adopted by IMO.
There are no tests given in this standard to support this IMO requirement as this standard
applies solely to equipment. Guidance on installation of equipment can be found in IEC 60092
and IEC 60533 and by reference to equipment manuals.

60945  IEC:2002 – 29 –
4.2 Design and operation
4.2.1 Ergonomics and HMI
4.2.1.1 General
Equipment shall be so constructed that it is capable of being operated readily and in
accordance with the requirements of the relevant standard by a suitably qualified person.
The user shall be easily able to develop and maintain an understanding of the HMI state at
any time.
The HMI shall not increase
...
