IEC 63522-25:2025

IEC 63522-25 ®
Edition 1.0 2025-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical relays – Tests and measurements –
Part 25: Magnetic interference

Relais électriques – Essais et mesurages –
Partie 25 : Perturbations par les champs magnétiques
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 63522-25 ®
Edition 1.0 2025-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electrical relays – Tests and measurements –

Part 25: Magnetic interference

Relais électriques – Essais et mesurages –

Partie 25 : Perturbations par les champs magnétiques

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.70  ISBN 978-2-8327-0196-6

– 2 – IEC 63522-25:2025 © IEC 2025

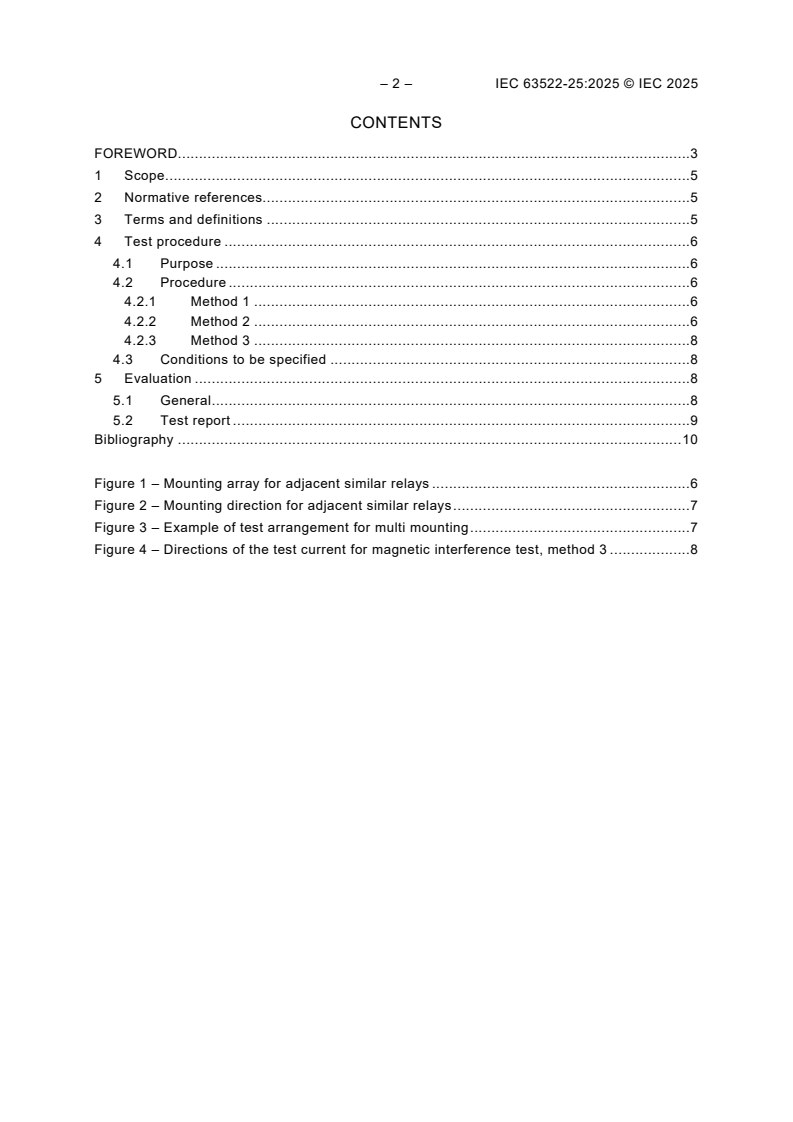

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references. 5
3 Terms and definitions . 5
4 Test procedure . 6
4.1 Purpose . 6
4.2 Procedure . 6
4.2.1 Method 1 . 6
4.2.2 Method 2 . 6
4.2.3 Method 3 . 8
4.3 Conditions to be specified . 8
5 Evaluation . 8
5.1 General . 8
5.2 Test report . 9
Bibliography . 10

Figure 1 – Mounting array for adjacent similar relays . 6
Figure 2 – Mounting direction for adjacent similar relays . 7
Figure 3 – Example of test arrangement for multi mounting . 7
Figure 4 – Directions of the test current for magnetic interference test, method 3 . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICAL RELAYS –
TESTING AND MEASUREMENT –
Part 25: Magnetic interference

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63522-25 has been prepared by IEC technical committee 94: Electrical relays. It is an
International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
94/1055/FDIS 94/1115/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 63522-25:2025 © IEC 2025
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of IEC 63522 series, published under the general title Electrical relays – Tests
and measurements, can be found on the IEC website.
This International Standard is to be used in conjunction with IEC 63522-0:– .
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
Under preparation. Stage at the time of publication: IEC CDV 63522-0:2024.

ELECTRICAL RELAYS –
TESTING AND MEASUREMENT –
Part 25: Magnetic interference

1 Scope
This part of IEC 63522 is used for testing along with the appropriate severities and conditions
for measurements and tests designed to assess the ability of DUTs to perform under expected
conditions of transportation, storage and all aspects of operational use.
This document defines a standard test method to check the magnetic interference between
relays under operating conditions and their influence on other relays in the neighbourhood.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60060-1, High-voltage test techniques – Part 1: General definitions and test requirements
IEC 63522-0:– , Electrical relays – Tests and measurements – Part 0: Testing – General and
Guidance
IEC 63522-4, Electrical relays – Tests and measurements – Part 4: Dielectric strength test
IEC 63522-7, Electrical relays – Tests and measurements – Part 7: Functional tests
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 63522-0 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
___________
Under preparation. Stage at the time of publication: IEC CDV 63522-0:2024.

– 6 – IEC 63522-25:2025 © IEC 2025
4 Test procedure
4.1 Purpose
The test checks that the functional performance values of the relay remain within specified limits
when the relay is subjected to the effects of external magnetic inductions.
4.2 Procedure
4.2.1 Method 1
The relay shall be mounted by suitable non-magnetic means within the central volume of a test
coil. The axis of maximum sensitivity of the relay shall be aligned with the longitudinal axis of
the test coil. Operate and release values shall be measured in accordance with IEC 63522-7 in
zero magnetic field in air and
– for magnetically shielded relays: in (8 × 10 ) A/m;
– for all other relays: in (0,8 × 10 ) A/m,
magnetic field of both polarities.
4.2.2 Method 2
The relay under test and eight similar relays of the same type shall be mounted in the same
physical orientation by non-magnetic means, as shown in Figure 1, unless otherwise specified
by the manufacturer. Operate and release values of the relay under test shall be measured as
specified in IEC 63522-7, with the coils of the eight outer relays energized at rated voltage, and
with the coils not energized. The magnetic polarity of each relay shall be similarly orientated.

Figure 1 – Mounting array for adjacent similar relays
The relays shall be placed in all possible usage combinations, as shown in Figure 2.

Figure 2 – Mounting direction for adjacent similar relays
For reed relays, the following applies:
The manufacturer shall declare different values for functional operate voltage and release
voltage between single mounting and multi mounting (i.e. reed relays are mounted in array
arrangement).
The mounting grid pattern shall be as specified by the manufacturer. See Figure 3 for an
example, all relevant details of the test arrangement (e.g., S : horizontal mounting distance and
S : vertical mounting distance and coil polarity) shall be indicated in the test report.
Key
1, 2 contact terminals, a, b: coil terminals
S horizontal mounting distance between relays
S vertical mounting distance between relays
Figure 3 – Example of test arrangement for multi mounting

– 8 – IEC 63522-25:2025 © IEC 2025
4.2.3 Method 3
The relay to be tested shall be mounted by non-magnetic means. A conducting wire of 0,5 mm
diameter shall be placed on the test relay surface in 24 directions as shown in Figure 4. One
current impulse with wavesape 1/20 µs in accordance with IEC 60060-1 shall be applied in each
of these directions. Operate and release values of the relay under test shall be measured as
specified in IEC 63522-7 in each of the wire positions after the respective current impulse. The
following current impulse shall be used, unless otherwise specified by t
...
