About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60335-2-105
Edition 1.1 2008-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-105: Particular requirements for multifunctional shower cabinets

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-105: Règles particulières pour les cabines de douche multifonctions

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CE
CODE PRIX
ICS 13.120; 97.170 ISBN 2-8318-9652-5

– 2 – 60335-2-105 © IEC:2004+A1:2008

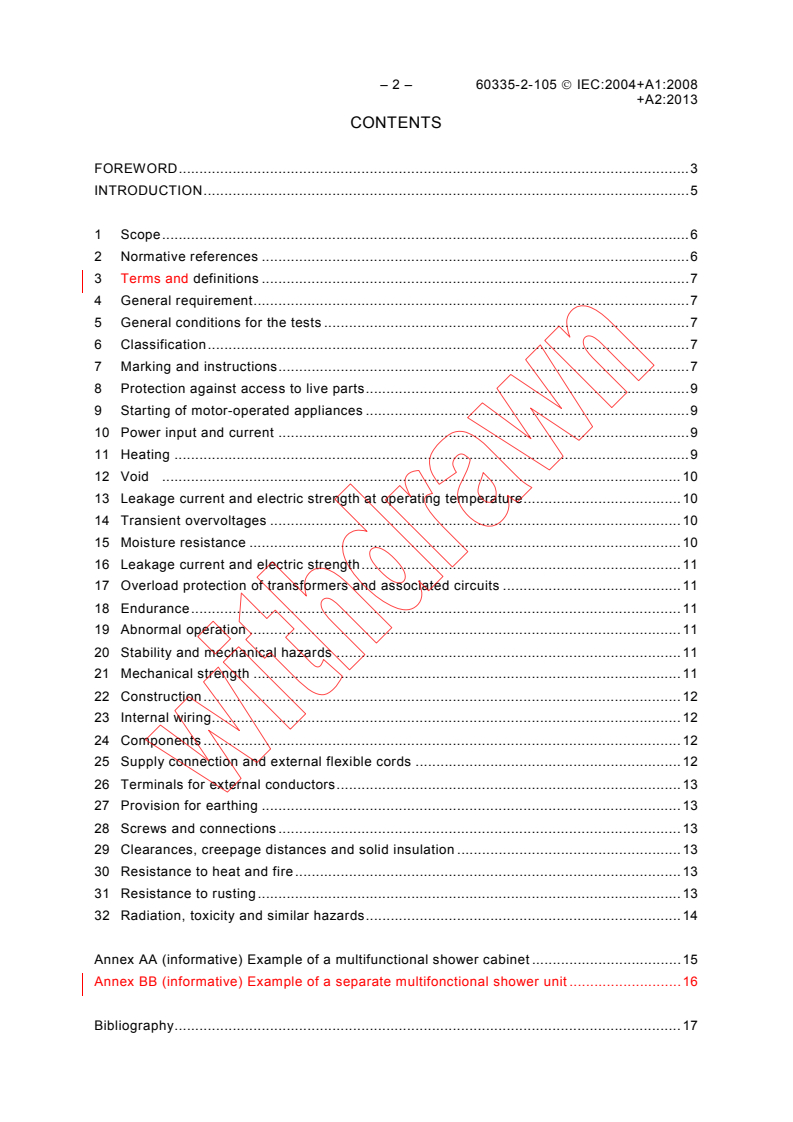

CONTENTS
FOREWORD.3
INTRODUCTION.5

1 Scope.6
2 Normative references.6
3 Definitions.7
4 General requirement.7
5 General conditions for the tests .7
6 Classification.7
7 Marking and instructions.7
8 Protection against access to live parts.9
9 Starting of motor-operated appliances .9
10 Power input and current .9
11 Heating.9
12 Void .10
13 Leakage current and electric strength at operating temperature.10
14 Transient overvoltages .10
15 Moisture resistance.10
16 Leakage current and electric strength.11
17 Overload protection of transformers and associated circuits .11
18 Endurance.11
19 Abnormal operation.11
20 Stability and mechanical hazards .12
21 Mechanical strength.12
22 Construction.12
23 Internal wiring.13
24 Components.13
25 Supply connection and external flexible cords .13
26 Terminals for external conductors.13
27 Provision for earthing .13
28 Screws and connections .13
29 Clearances, creepage distances and solid insulation .13
30 Resistance to heat and fire.14
31 Resistance to rusting.14
32 Radiation, toxicity and similar hazards.14

Annexes .
Annex AA (informative) Example of a multifunctional shower cabinet.15
Annex BB (informative) Example of a separate multifunctional shower unit.16

Bibliography.17

60335-2-105 © IEC:2004+A1:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
__________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-105: Particular requirements for
multifunctional shower cabinets

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of international standard IEC 60335 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
It forms the first edition of 60335-2-105.
This consolidated version of IEC 60335-2-105 consists of the first edition (2004) [documents
61/2737/FDIS and 61/2789/RVD] and its amendment 1 (2008) [documents 61/3412/FDIS and
61/3425/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.
It bears the edition number 1.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
– 4 – 60335-2-105 © IEC:2004+A1:2008
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric multifunctional
shower cabinets.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 30.101: Additional requirements apply to large panels of non-metallic material (USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of the amendment 1 be adopted for implementation
nationally not earlier than 12 months from the date of its publication.

60335-2-105 © IEC:2004+A1:2008 – 5 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which electromagnetic
phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 6 – 60335-2-105 © IEC:2004+A1:2008
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-105: Particular requirements for
multifunctional shower cabinets

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric multifunctional shower cabinets
and electric separate multifunctional shower units for household and similar purposes,
their rated voltage being not more than 250 V for single-phase appliances and 480 V for
other appliances.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in hotels, fitness
centres and similar locations, are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national water
supply authorities, the national authorities responsible for the protection of labour and similar authorities.
NOTE 102 If an appliance incorporates a part that is within the scope of IEC 60065, IEC 60598 or IEC 60950, the
part is tested in accordance with the relevant standard as far as reasonable.
NOTE 103 This standard does not apply to
– instantaneous water heaters used for showering (IEC 60335-2-35);
– shower-boost pumps (IEC 60335-2-41);
– appliances intended for medical purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
ISO 3864-1:2002, Graphical symbols – Safety colours and safety signs – Part 1: Design
principles for safety signs in workplaces and public areas

60335-2-105 © IEC:2004+A1:2008 – 7 –
3 Definitions
This clause of Part 1 is applicable except as follows.
3.101
multifunctional shower cabinet
prefabricated shower cabinet that incorporates at least one other function, such as a steam
bath, in addition to the showering function
NOTE An example of a multifunctional shower cabinet is shown in Annex AA.
3.102
separate multifunctional shower unit
multifunctional shower unit without a prefabricated shower cabinet that incorporates at least
one electric function in addition to the showering function
NOTE An example of a separate multifunctional shower unit is shown in Annex BB.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.4 Addition:
When testing a function of the appliance, the influence of another function that can be applied
simultaneously is taken into account.
5.6 Addition:
Sensing elements located in the air intake to the heater are short-circuited or otherwise
rendered inoperative.
6 Classification
This clause of Part 1 is applicable except as follows.
6.2 Addition:
Multifunctional shower cabinets and separate multifunctional shower units shall be at
least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.

– 8 – 60335-2-105 © IEC:2004+A1:2008
7.1 Addition:
For appliances with an air-heating function, other than those having the air outlet located at a
height at least 1,8 m above the floor or those that cannot be covered, shall be marked near
the air outlet with symbol IEC 60417-5641 (DB:2002-10) combined with the prohibition sign in
ISO 3864-1, except for colours, or with the substance of the following:
Do not cover
Appliances shall be marked on or near the lampholder with the maximum power input of
replaceable lamps as follows:
Lamp max …. W
The word “lamp” may be replaced by symbol IEC 60417-5012 (DB: 2002-10).
If the temperature of a water or steam outlet, excluding the shower head and the water outlets
when the water is not heated by the multifunctional shower cabinet or separate
multifunctional shower unit itself, exceeds 60 °C, the appliance shall be marked near the
outlet with the symbol IEC 60417-5041 (2002-10) or with the substance of the following:
CAUTION: Hot surface
7.6 Addition:
[symbol IEC 60417-5041 (DB:2002-10)] Hot surface

Do not cover
NOTE 101 The “Do not cover” symbol incorporates symbol IEC 60417-5641(DB:2002-10) combined with the
prohibition sign of ISO 3864-1, except for colours.
7.12 Addition:
The instructions shall provide details concerning cleaning to ensure hygienic conditions.
The instructions shall state that separate electrical appliances producing steam or humidity
are not to be used inside the cabinet.
If symbols IEC 60417-5041 or “Do not cover” are marked on the appliance, their meaning
shall be explained.
The instructions shall state the substance of the following:
WARNING: Only allow children to use the appliance without supervision when adequate
instructions have been given so that the child is able to use the appliance in a
safe way and understands the hazards of improper use.

60335-2-105 © IEC:2004+A1:2008 – 9 –
7.12.1 Addition:
The instructions shall make reference to national wiring rules and state the substance of the
following:
– earthed appliances must be permanently connected to fixed wiring;
– the appliance should be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA.
The instructions shall give details on how to follow the wiring rules, for example by ensuring
that the installation is in the correct zone and that equipotential bonding is carried out.
7.14 Addition:
The height of symbols IEC 60417-5041 and “Do not cover” shall be at least 15 mm. The
height of the words “Caution hot surface” and “Do not cover” shall be at least 6 mm.
7.15 Addition:
Symbol IEC 60417-5041 shall be marked near the outlet for hot air.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.1.4 Modification:
Any energized part is considered to be a live part.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.4 Addition:
If the temperature rise limits are exceeded in appliances incorporating motors, transformers or
electronic circuits, and the power input is lower than the rated power input, the test is
repeated with the appliance supplied at 1,06 times rated voltage.
11.6 Addition:
Combined appliances are operated as heating appliances.

– 10 – 60335-2-105 © IEC:2004+A1:2008
11.7 Replacement:
Appliances are operated until steady conditions are established.
11.8 Addition:
Add the following entries to Table 3 immediately before the last entry:
Part Temperature rise
K
101, 102
Surfaces likely to be in contact with the skin,
– if of metal 30
– if of other material 35
Warm air for warming parts of the human body

Add the following new footnotes to Table 3:

For surfaces likely to be in contact with the skin for short periods only, the values of Table 3 of Part 1 for
“surfaces which are held for short periods only in normal use” are applicable.
The temperature at the steam outlet is not measured.
The air temperature is measured 50 mm from the air outlet.

The temperature rise of motors, transformers and components of electronic circuits,
including parts directly influenced by them, may be exceeded when the appliance is operated
at 1,15 times rated power input.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.1 Addition:
Traces of water on insulation in components operating at safety extra-low voltage not
exceeding 12 V are ignored.
60335-2-105 © IEC:2004+A1:2008 – 11 –
15.1.1 Addition:
The inside of the shower cabinet is subjected to the test described in 14.2.5 of IEC 60529.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
Appliances having an air-heating function are also subjected to the test of 19.101.
19.2 Addition:
For appliances having a steam bath function, the test is carried out without water being
supplied.
Appliances incorporating a fan are also tested without the motor operating, air inlets and
guards not being covered.
19.101 Appliances having an air-heating function with a heater having an enclosure
substantially of non-metallic material are operated as specified in Clause 11, except that the
motor is supplied separately at its working voltage. Thermal controls that operate during
the test of Clause 11 are short-circuited.
When steady conditions are established, the voltage applied to the motor is reduced until the
running speed of the motor is just sufficient to prevent a thermal cut-out from operating,
the voltage applied to the heating elements being maintained at the value used for 11.4.
Under these conditions the heater is again operated until steady conditions are established or
for 1 h, whichever is longer.
After this period, the airflow is further restricted to verify that a thermal cut-out operates.
NOTE The reduced voltage applied to the motor may be determined as follows. The voltage is reduced by 5 %
and the motor is operated under this condition for 5 min. This procedure is repeated until a thermal cut-out
operates. The voltage is then increased by 5 %, this being the reduced voltage to be used for the test.

– 12 – 60335-2-105 © IEC:2004+A1:2008
20 Stability and mechanical hazards
This clause of Part 1 is applicable.
21 Mechanical strength
This clause of Part 1 is applicable.
22 Construction
This clause of Part 1 is applicable except as follows.
22.7 Addition:
Appliances having a steam bath function shall incorporate adequate safeguards against the
risk of excessive pressure.
If jets of steam or hot water are emitted through protective devices, the electrical insulation
shall not be affected or the user exposed to a hazard.
Compliance is checked by inspection and by the following test.

For pressurized boilers, the maximum pressure occurring during the test of Clause 11 with the
boiler filled but without steam emission is measured. All pressure-regulating devices
that operated during the test are rendered inoperative and the pressure measured again. The
pressure shall not increase by more than 200 kPa.
Any pressure-limiting protective device is then rendered inoperative and the pressure in
the boiler is raised hydraulically to five times the pressure measured originally or twice the
pressure measured with the pressure-regulating device operating during the test of Clause 11
rendered inoperative, whichever is higher. There shall be no leakage from the boiler.
22.33 Addition:
Components such as switches and controls accessible to the user in the shower cabinet shall
only be supplied at safety extra-low voltage not exceeding 12 V.
Vapour is not considered to be a conductive liquid.
22.101 Appliances in which water is recirculated shall be constructed so that the quantity of
water remaining in the system after use shall not exceed 0,15 l.
Compliance is checked by measurement.
22.102 Appliances having provision for discharging steam shall be constructed so that the
steam outlets shall not direct the steam towards the user.
Compliance is checked by inspection.

60335-2-105 © IEC:2004+A1:2008 – 13 –
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable except as follows.
27.2 Addition:
Class I appliances shall be provided with a terminal for the connection of external
equipotential bonding conductors.
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable except as follows.
29.2 Addition:
The microenvironment is pollution degree 3 unless the insulation is enclosed or located so
that it is unlikely to be exposed to pollution from condensation during normal use of the
appliance.
– 14 – 60335-2-105 © IEC:2004+A1:2008
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2 Addition:
A function that only occurs when the shower water is flowing is attended use and for that part
of the appliance, 30.2.2 is applicable.
If a function is unattended use, then for that part of the appliance, 30.2.3 is applicable.
30.101 Air heaters having an enclosure of substantially non-metallic material shall be
resistant to fire.
Compliance is checked by inspection and by subjecting the enclosure to the needle-flame test
of Annex E.
The needle-flame test is not carried out on material classified as V-0 or V-1 according to
IEC 60695-11-10, provided the test sample was no thicker than the relevant part.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60335-2-105 © IEC:2004+A1:2008 – 15 –
Annexes
The annexes of Part 1 are applicable except as follows.
Annex AA
(informative)
Example of a multifunctional shower cabinet

a
b
c
d
e
f
g
h
i
j
k
l
IEC  1418/04
Key
a Shower head (fixed in position) g Selection tap
b Shower head, (detachable) h Areas (shaped) to rest against
c Operating panel i Side showers, (massage function for a limited period only)
d Pipe connection, water supply j Hand/towel rail (non-heatable)
e Media hose k Seats
f Water/mixing tap l Steam nozzle

– 16 – 60335-2-105 © IEC:2004+A1:2008
Annex BB
(informative)
Example of a separate multifunctional shower unit

IEC  2344/07
60335-2-105 © IEC:2004+A1:2008 – 17 –
Bibliography
The bibliography of Part 1 is applicable except as follows.
Addition:
IEC 60335-35, Household and similar electrical appliances – Safety – Part 2-35: Particular
requirements for instantaneous water heaters
IEC 60335-2-41, Household and similar electrical appliances – Safety – Part 2-41: Particular
requirements for pumps
ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of human
responses to contact with surfaces – Part 1: Hot surfaces

___________
– 18 – 60335-2-105 © CEI:2004+A1:2008
SOMMAIRE
AVANT-PROPOS.19
INTRODUCTION.21

1 Domaine d’application.22
2 Références normatives.22
3 Définitions.23
4 Exigences générales.23
5 Conditions générales d’essais .23
6 Classification.23
7 Marquage et indications .23
8 Protection contre l’accès aux parties actives .25
9 Démarrage des appareils à moteur.25
10 Puissance et courant .25
11 Echauffements.25
12 Vacant.26
13 Courant de fuite et rigidité diélectrique à la température de régime .26
14 Surtensions transitoires.26
15 Résistance à l’humidité.26
16 Courant de fuite et rigidité diélectrique .27
17 Protection contre la surcharge des transformateurs et des circuits associés.27
18 Endurance.27
19 Fonctionnement anormal.27
20 Stabilité et dangers mécaniques .28
21 Résistance mécanique.28
22 Construction.28
23 Conducteurs internes .29
24 Composants.29
25 Raccordement au réseau et câbles souples extérieurs .29
26 Bornes pour conducteurs externes .29
27 Dispositions en vue de la mise à la terre .29
28 Vis et connexions.29
29 Distances dans l’air, lignes de fuite et isolation solide .29
30 Résistance à la chaleur et au feu.30
31 Protection contre la rouille.30
32 Rayonnement, toxicité et dangers analogues.30

Annexes .
Annexe AA (informative) Exemple d’une cabine de douche multifonctions .31
Annexe BB (informative) Exemple de colonne de douche multifonctions .32

Bibliographie.33

60335-2-105 © CEI:2004+A1:2008 – 19 –
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
–––––––––––
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –
SÉCURITÉ –
Partie 2-105: Règles particulières pour
les cabines de douche multifonctions

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent
également aux travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable
de l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'unification internationale, les Comités nationaux de la CEI s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de la CEI dans leurs publications
nationales et régionales. Toutes divergences entre toutes Publications de la CEI et toutes publications
nationales ou régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) La CEI n’a prévu aucune procédure de marquage valant indication d’approbation et n'engage pas sa
responsabilité pour les équipements déclarés conformes à une de ses Publications.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à la CEI, à ses administrateurs, employés, auxiliaires ou
mandataires, y compris ses experts particuliers et les membres de ses comités d'études et des Comités
nationaux de la CEI, pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre
dommage de quelque nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais
de justice) et les dépenses découlant de la publication ou de l'utilisation de cette Publication de la CEI ou de
toute autre Publication de la CEI, ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L’attention est attirée sur le fait que certains des éléments de la présente Publication de la CEI peuvent faire
l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être tenue pour
responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir signalé leur existence.
La présente partie de la Norme internationale CEI 60335 a été établie par le comité
d'études 61 de la CEI: Sécurité des appareils électrodomestiques
...

IEC 60335-2-105 ®
Edition 1.2 2013-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-105: Particular requirements for multifunctional shower cabinets

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-105: Règles particulières pour les cabines de douche multifonctions

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60335-2-105 ®
Edition 1.2 2013-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-105: Particular requirements for multifunctional shower cabinets

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-105: Règles particulières pour les cabines de douche multifonctions

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.170 ISBN 978-2-8322-0921-9

– 2 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
CONTENTS
FOREWORD . 3
INTRODUCTION . 5

1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 General requirement . 7
5 General conditions for the tests . 7
6 Classification . 7
7 Marking and instructions . 7
8 Protection against access to live parts . 9
9 Starting of motor-operated appliances . 9
10 Power input and current . 9
11 Heating . 9
12 Void . 10
13 Leakage current and electric strength at operating temperature . 10
14 Transient overvoltages . 10
15 Moisture resistance . 10
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 11
20 Stability and mechanical hazards . 11
21 Mechanical strength . 11
22 Construction . 12
23 Internal wiring . 12
24 Components . 12
25 Supply connection and external flexible cords . 12
26 Terminals for external conductors . 13
27 Provision for earthing . 13
28 Screws and connections . 13
29 Clearances, creepage distances and solid insulation . 13
30 Resistance to heat and fire . 13
31 Resistance to rusting . 13
32 Radiation, toxicity and similar hazards . 14

Annex AA (informative) Example of a multifunctional shower cabinet . 15
Annex BB (informative) Example of a separate multifonctional shower unit . 16

Bibliography . 17

60335-2-105  IEC:2004+A1:2008 – 3 –
+A2:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
__________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-105: Particular requirements for
multifunctional shower cabinets

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This consolidated version of IEC 60335-2-105 consists of the first edition (2004)
[documents 61/2737/FDIS and 61/2789/RVD], its amendment 1 (2008) [documents
61/3412/FDIS and 61/3425/RVD] and its amendment 2 (2013) [documents 61/4523/CDV
and 61/4594/RVC]. It bears the edition number 1.2.

The technical content is therefore identical to the base edition and its amendments and
has been prepared for user convenience. A vertical line in the margin shows where the
base publication has been modified by amendments 1 and 2. Additions and deletions
are displayed in red, with deletions being struck through.

– 4 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
This part of international standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances. It forms the first edition of 60335-2-
105.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric multifunctional
shower cabinets.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 30.101: Additional requirements apply to large panels of non-metallic material (USA).
The French version of amendment 2 has not been voted upon.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of the amendment 1 be adopted for implementation
nationally not earlier than 12 months from the date of its publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

60335-2-105  IEC:2004+A1:2008 – 5 –
+A2:2013
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which electromagnetic
phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 6 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-105: Particular requirements for
multifunctional shower cabinets

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric multifunctional shower cabinets
and electric separate multifunctional shower units for household and similar purposes,
their rated voltage being not more than 250 V for single-phase appliances and 480 V for
other appliances.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as appliances intended to be used by laymen in hotels, fitness
centres and similar locations, are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account
– the use of appliances by young children or infirm persons without supervision;
– playing with the appliance by young children.

– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.

NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries, additional requirements are specified by the national health authorities, the national water
supply authorities, the national authorities responsible for the protection of labour and similar authorities.
– in many countries, mechanical strength, impact resistance and shattering properties of shower enclosures can
be covered by national regulations.
NOTE 102 If an appliance incorporates a part that is within the scope of IEC 60065, IEC 60598 or IEC 60950, the
part is tested in accordance with the relevant standard as far as reasonable.
NOTE 103 This standard does not apply to
– instantaneous water heaters used for showering (IEC 60335-2-35);
– shower-boost pumps (IEC 60335-2-41);
– appliances intended for medical purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of Part 1 is applicable except as follows.

60335-2-105  IEC:2004+A1:2008 – 7 –
+A2:2013
Addition:
ISO 3864-1:2002, Graphical symbols – Safety colours and safety signs – Part 1: Design
principles for safety signs in workplaces and public areas
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.101
multifunctional shower cabinet
prefabricated shower cabinet that incorporates at least one other function, such as a steam
bath, in addition to the showering function
NOTE An example of a multifunctional shower cabinet is shown in Annex AA.
3.102
separate multifunctional shower unit
Annex A multifunctional shower unit without a prefabricated shower cabinet that incorporates
at least one electric function in addition to the showering function
NOTE An example of a separate multifunctional shower unit is shown in Annex BB.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.4 Addition:
When testing a function of the appliance, the influence of another function that can be applied
simultaneously is taken into account.
5.6 Addition:
Sensing elements located in the air intake to the heater are short-circuited or otherwise
rendered inoperative.
6 Classification
This clause of Part 1 is applicable except as follows.
6.2 Addition:
Multifunctional shower cabinets and separate multifunctional shower units shall be at
least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.

– 8 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
7.1 Addition:
For appliances with an air-heating function, other than those having the air outlet located at a
height at least 1,8 m above the floor or those that cannot be covered, shall be marked near
the air outlet with symbol IEC 60417-5641 (DB:2002-10) combined with the prohibition sign in
ISO 3864-1, except for colours, or with the substance of the following:
Do not cover
Appliances shall be marked on or near the lampholder with the maximum power input of
replaceable lamps as follows:
Lamp max …. W
The word “lamp” may be replaced by symbol IEC 60417-5012 (DB: 2002-10).
If the temperature of a water or steam outlet, excluding the shower head and the water outlets
when the water is not heated by the multifunctional shower cabinet or separate
multifunctional shower unit itself, exceeds 60 °C, the appliance shall be marked near the
outlet with the symbol IEC 60417-5041 (DB:2002-10) or with the substance of the following:
CAUTION: Hot surface
7.6 Addition:
[symbol IEC 60417-5041 (DB:2002-10)] Hot surface

Do not cover
NOTE 101 The “Do not cover” symbol incorporates symbol IEC 60417-5641(DB:2002-10) combined with the
prohibition sign of ISO 3864-1, except for colours.
7.12 Addition:
The instructions shall provide details concerning cleaning to ensure hygienic conditions.
The instructions shall state that separate electrical appliances producing steam or humidity
are not to be used inside the cabinet.
If symbols IEC 60417-5041 or “Do not cover” are marked on the appliance, their meaning
shall be explained.
The instructions shall state the substance of the following:
WARNING: Only allow children to use the appliance without supervision when adequate
instructions have been given so that the child is able to use the appliance in a
safe way and understands the hazards of improper use.
7.12.1 Addition:
60335-2-105  IEC:2004+A1:2008 – 9 –
+A2:2013
The instructions shall make reference to national wiring rules and state the substance of the
following:
– earthed appliances must be permanently connected to fixed wiring;
– the appliance should be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA.
The instructions shall give details on how to follow the wiring rules, for example by ensuring
that the installation is in the correct zone and that equipotential bonding is carried out.
7.14 Addition:
The height of symbols IEC 60417-5041 and “Do not cover” shall be at least 15 mm. The
height of the words “Caution hot surface” and “Do not cover” shall be at least 6 mm.
7.15 Addition:
Symbol IEC 60417-5041 shall be marked near the outlet for hot air.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.1.4 Modification:
Any energized part is considered to be a live part.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.4 Addition:
If the temperature rise limits are exceeded in appliances incorporating motors, transformers or
electronic circuits, and the power input is lower than the rated power input, the test is
repeated with the appliance supplied at 1,06 times rated voltage.
11.6 Addition:
Combined appliances are operated as heating appliances.
11.7 Replacement:
Appliances are operated until steady conditions are established.

– 10 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
11.8 Addition:
Add the following entries to Table 3 immediately before the last entry:
Part Temperature rise
K
101, 102
Surfaces likely to be in contact with the skin,
– if of metal
– if of other material
Warm air for warming parts of the human body

Add the following new footnotes to Table 3:

For surfaces likely to be in contact with the skin for short periods only, the values of Table 3 of Part 1 for
“surfaces which are held for short periods only in normal use” are applicable.
The temperature at the steam outlet is not measured.
The air temperature is measured 50 mm from the air outlet.

The temperature rise of motors, transformers and components of electronic circuits,
including parts directly influenced by them, may be exceeded when the appliance is operated
at 1,15 times rated power input.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.1 Addition:
Traces of water on insulation in components operating at safety extra-low voltage not
exceeding 12 V are ignored.
15.1.1 Addition:
The inside of the shower cabinet is subjected to the test described in 14.2.5 of IEC 60529.

60335-2-105  IEC:2004+A1:2008 – 11 –
+A2:2013
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
Appliances having an air-heating function are also subjected to the test of 19.101.
19.2 Addition:
For appliances having a steam bath function, the test is carried out without water being
supplied.
Appliances incorporating a fan are also tested without the motor operating, air inlets and
guards not being covered.
19.101 Appliances having an air-heating function with a heater having an enclosure
substantially of non-metallic material are operated as specified in Clause 11, except that the
motor is supplied separately at its working voltage. Thermal controls that operate during
the test of Clause 11 are short-circuited.
When steady conditions are established, the voltage applied to the motor is reduced until the
running speed of the motor is just sufficient to prevent a thermal cut-out from operating,
the voltage applied to the heating elements being maintained at the value used for 11.4.
Under these conditions the heater is again operated until steady conditions are established or
for 1 h, whichever is longer.
After this period, the airflow is further restricted to verify that a thermal cut-out operates.
NOTE The reduced voltage applied to the motor may be determined as follows. The voltage is reduced by 5 %
and the motor is operated under this condition for 5 min. This procedure is repeated until a thermal cut-out
operates. The voltage is then increased by 5 %, this being the reduced voltage to be used for the test.
20 Stability and mechanical hazards
This clause of Part 1 is applicable.
21 Mechanical strength
This clause of Part 1 is applicable.

– 12 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
22 Construction
This clause of Part 1 is applicable except as follows.
22.7 Replacement Addition:
Appliances having a steam bath function shall incorporate adequate safeguards against the
risk of excessive pressure.
If jets of steam or hot water are emitted through protective devices, the electrical insulation
shall not be affected or the user exposed to a hazard.
Compliance is checked by inspection and by the following test.
For non-pressurized boilers, the water shall be supplied at a pressure not exceeding 150 kPa.
For pressurized boilers, the maximum pressure occurring during the test of Clause 11 with the
boiler filled but without steam emission is measured. All pressure-regulating devices
that operated during the test are rendered inoperative and the pressure measured again. The
pressure shall not increase by more than 200 kPa.
Any pressure-limiting protective device is then rendered inoperative and the pressure in
the boiler is raised hydraulically to five times the pressure measured originally or twice the
pressure measured with the pressure-regulating device operating during the test of Clause 11
rendered inoperative, whichever is higher. There shall be no leakage from the boiler.
22.33 Addition:
Components such as switches and controls accessible to the user in the shower cabinet shall
only be supplied at safety extra-low voltage not exceeding 12 V.
Vapour is not considered to be a conductive liquid.
22.101 Appliances in which water is recirculated shall be constructed so that the quantity of
water remaining in the system after use shall not exceed 0,15 l.
Compliance is checked by measurement.
22.102 Appliances having provision for discharging steam shall be constructed so that the
steam outlets shall not direct the steam towards the user.
Compliance is checked by inspection.
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.

60335-2-105  IEC:2004+A1:2008 – 13 –
+A2:2013
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable except as follows.
27.2 Addition:
Class I appliances shall be provided with a terminal for the connection of external
equipotential bonding conductors.
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable except as follows.
29.2 Addition:
The microenvironment is pollution degree 3 unless the insulation is enclosed or located so
that it is unlikely to be exposed to pollution from condensation during normal use of the
appliance.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2 Addition:
A function that only occurs when the shower water is flowing is attended use and for that part
of the appliance, 30.2.2 is applicable.
If a function is unattended use, then for that part of the appliance, 30.2.3 is applicable.
30.101 Air heaters having an enclosure of substantially non-metallic material shall be
resistant to fire.
Compliance is checked by inspection and by subjecting the enclosure to the needle-flame test
of Annex E.
The needle-flame test is not carried out on material classified as V-0 or V-1 according to
IEC 60695-11-10, provided the test sample was no thicker than the relevant part.
31 Resistance to rusting
This clause of Part 1 is applicable.

– 14 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60335-2-105  IEC:2004+A1:2008 – 15 –
+A2:2013
Annexes
The annexes of Part 1 are applicable except as follows.
Annex AA
(informative)
Example of a multifunctional shower cabinet

a
b
c
d
e
f
g
h
i
j
k
l
IEC  1418/04
Key
a Shower head (fixed in position) g Selection tap
b Shower head, (detachable) h Areas (shaped) to rest against
c Operating panel i Side showers, (massage function for a limited period only)
d Pipe connection, water supply j Hand/towel rail (non-heatable)
e Media hose k Seats
f Water/mixing tap l Steam nozzle

– 16 – 60335-2-105  IEC:2004+A1:2008
+A2:2013
Annex BB
(informative)
Example of a separate multifunctional shower unit

IEC  2344/07
60335-2-105  IEC:2004+A1:2008 – 17 –
+A2:2013
Bibliography
The bibliography of Part 1 is applicable except as follows.
Addition:
IEC 60335-35, Household and similar electrical appliances – Safety – Part 2-35: Particular
requirements for instantaneous water heaters
IEC 60335-2-41, Household and similar electrical appliances – Safety – Part 2-41: Particular
requirements for pumps
ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of the
human responses to contact with surfaces – Part 1: Hot surfaces
___________
– 18 – 60335-2-105  CEI:2004+A1:2008
+A2:2013
SOMMAIRE
AVANT-PROPOS . 19
INTRODUCTION . 21

1 Domaine d’application . 22
2 Références normatives . 22
3 Termes et définitions . 23
4 Exigences générales . 23
5 Conditions générales d’essais . 23
6 Classification . 23
7 Marquage et indications . 24
8 Protection contre l’accès aux parties actives . 25
9 Démarrage des appareils à moteur . 25
10 Puissance et courant . 25
11 Echauffements . 25
12 Vacant . 26
13 Courant de fuite et rigidité diélectrique à la température de régime . 26
14 Surtensions transitoires . 26
15 Résistance à l’humidité. 26
16 Courant de fuite et rigidité diélectrique . 27
17 Protection contre la surcharge des transformateurs et des circuits associés . 27
18 Endurance . 27
19 Fonctionnement anormal . 27
20 Stabilité et dangers mécaniques . 28
21 Résistance mécanique . 28
22 Construction . 28
23 Conducteurs internes . 29
24 Composants . 29
25 Raccordement au réseau et câbles souples extérieurs . 29
26 Bornes pour conducteurs externes . 29
27 Dispositions en vue de la mise à la terre . 29
28 Vis et connexions . 29
29 Distances dans l’air, lignes de fuite et isolation solide . 29
30 Résistance à la chaleur et au feu. 29
31 Protection contre la rouille . 30
32 Rayonnement, toxicité et dangers analogues . 30

Annexe AA (informative) Exemple d’une cabine de douche multifonctions . 31
Annexe BB (informative) Exemple de colonne de douche multifonctions . 32

Bibliographie . 33

60335-2-105  CEI:2004+A1:2008 – 19 –
+A2:2013
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
–––––––––––
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –
SÉCURITÉ –
Partie 2-105: Règles particulières pour
les cabines de douche multifonctions

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent
également aux travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable
de l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'unification internationale, les Comités nationaux de la CEI s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de la CEI dans leurs publications
nationales et régionales. Toutes divergences entre toutes Publications de la CEI et toutes publications
nationales ou régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) La CEI n’a prévu aucune procédure de marquage valant indication d’approbation et n'engage pas sa
responsabilité pour les équipements déclarés conformes à une de ses Publications.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsab
...
