(Main)Railway applications - Driver's cab - Part 3: Design of displays
Railway applications - Driver's cab - Part 3: Design of displays
This European Standard specifies all necessary design rules and associated assessment criteria as well as guidance concerning the design of information and the corresponding user interfaces of driver’s cabs of EMU, DMU, Railcars, Locomotives and Driving trailers.
NOTE 1 This standard applies to rolling stock in the scope of the Directive 2008/57/EC.
It considers the tasks the driver has to carry out and human factors. This standard specifies how information is arranged and displayed. It is explicitly applicable to display applications like TRD, ETD, CCD and TDD and may be completed by the CLC/TS 50459 series.
This standard is not applicable to legacy ATP systems. If requirements in this standard are in conflict with the ERA DMI document (ERA_ERTMS_015560) the requirements of the ERA DMI document should prevail for the CCD ETCS application.
NOTE 2 For resolving any discrepancies (e.g. 5.4.2.3) ERA is expected to harmonize the usage philosophy of the ERA DMI with this standard.
All assessments based on the normative requirements of this standard are applicable mainly to
- symbols provided by Annex A,
- arrangement of screen areas conform with Figure 1 (generic organization of information),
- colours, fonts,
- audible information.
This standard is applicable to the following aspects:
- legibility and intelligibility of displayed information: general rules concerning the layout of information on the displays, including character size and spacing;
- definition of harmonized colours, symbols, etc.;
- definition of harmonized principles for the command interface (by physical or touchscreen buttons): size, symbols, reaction time, way to give feedback to the driver, etc.;
- general arrangements (dialogue structures, sequences, layout philosophy, colour philosophy), symbols, audible information, data entry arrangements.
NOTE 3 If this standard deals with how information can be given for operation and in degraded situations, it does not define operating rules and degraded situations.
This standard does not request any safety requirement related with displayed information.
This standard specifies minimum requirements and does not prevent more complex solutions.
Requirements describing the functions using the display are out of scope of this standard.
Bahnanwendungen - Führerraum - Teil 3: Gestaltung von Führerraumanzeigen
Diese Norm gibt alle notwendigen Gestaltungsregeln und damit verbundene Bewertungskriterien sowie Anleitungen für die Gestaltung von Führerraumanzeigen interoperabler Fahrzeuge vor. Sie berücksich¬tigt die Aufgaben des Triebfahrzeugführers und menschliche Faktoren. Diese Norm gilt nicht für bestehende Systeme.
Es werden drei verschiedene Arten von Anforderungen unterschieden, die mit REQ-Nummern gekenn¬zeichnet sind:
a) Zielstellungen
Zielstellungen sind mit dem Begriff "Zielstellung" gekennzeichnet und werden mit "sollte" ausgedrückt. Zielstellungen selbst unterliegen keiner Nachweisführung. Die in dieser Norm genannten Zielstellungen werden durch Anwendung dieser Norm als erfüllt angesehen.
b) Empfehlungen
Empfehlungen werden durch "sollte" ausgedrückt. Eine Empfehlung ist nur dann Gegenstand einer Nachweisführung, wenn die REQ vom Anwender ausgewählt wurde.
c) Normanforderungen
Normanforderungen werden durch "muss" ausgedrückt und stellen die umfassende Menge aller Anforderun-gen im Hinblick auf Interoperabilität dar. Sie unterliegen der Nachweisführung.
Alle Nachweise, die auf den Normanforderungen dieser Norm beruhen, sind beschränkt auf
- Symbole wie in Anhang A vorgesehen, einschließlich Start- und Endbedingungen;
- Anordnung von Führerraumanzeigenbereichen in Übereinstimmung mit Bild 2 (allgemeine Organisation von Informationen);
- Farben, Schriftarten;
- akustische Informationen.
(...)
Applications ferroviaires - Cabine de conduite - Partie 3 : Conception des affichages
La présente Norme européenne spécifie l’ensemble des règles de conception nécessaires et des critères d’évaluation correspondants ainsi que des recommandations, concernant la conception des informations et des interfaces utilisateur correspondantes des cabines de conduite des rames automotrices électriques (EMU), rames automotrices diesel (DMU), automotrices, locomotives et voitures-pilotes.
NOTE 1 La présente norme s’applique au matériel roulant relevant du domaine d’application de la Directive 2008/57/CE.
Elle tient compte des tâches que le conducteur doit effectuer et des facteurs humains. La présente norme spécifie la manière dont l'information est organisée et affichée. Elle s’applique explicitement aux applications utilisant des afficheurs telles que les TRD, ETD, CCD et TDD et peut être complétée par la série CLC/TS 50459.
La présente norme ne s’applique pas aux systèmes ATP existants. Si les exigences de cette norme sont en conflit avec le document DMI de l’ERA (ERA_ERTMS_015560), il convient que les exigences du document DMI de l’ERA prévalent pour l'application de l’afficheur CCD ETCS.
NOTE 2 Pour résoudre d’éventuelles divergences (par exemple 5.4.2.3) l’ERA est censée harmoniser la philosophie d’utilisation du document DMI de l’ERA avec la présente norme.
Toutes les évaluations fondées sur les exigences normatives de la présente norme s’appliquent principalement
— aux symboles donnés en Annexe A ;
— à la disposition des zones d’affichage des écrans en cabine conformément à la Figure 1 (organisation générique des informations) ;
— aux couleurs et aux polices ;
— aux informations sonores.
La présente norme s’applique aux aspects suivants :
— la lisibilité et l’intelligibilité des informations affichées : règles générales relatives à la disposition des informations sur les afficheurs, y compris la taille et l’espacement des caractères ;
— la définition de couleurs, symboles, etc. harmonisés ;
— la définition de principes harmonisés pour l’interface de commande (touches physiques ou sur écrans tactiles) : taille, symboles, temps de réaction, retour d’information au conducteur, etc. ;
— dispositions générales (structure des dialogues, séquences, philosophie de la disposition, philosophie des couleurs), symboles, informations sonores, principes d’entrée des données.
NOTE 3 Si la présente norme traite de la façon dont l'information peut être donnée pour l'exploitation et dans des situations dégradées, cela ne définit pas les règles d'exploitation et les situations dégradées.
La présente norme ne requiert aucune exigence de sécurité relative aux informations affichées.
La présente norme spécifie des exigences minimales et n’interdit pas des solutions plus complexes.
Les exigences fonctionnelles des fonctions utilisant les affichages ne relèvent pas du domaine d’application de cette norme.
Železniške naprave - Voznikova kabina - 3. del: Načrtovanje slikovnih zaslonov
Ta standard navaja konstrukcijska pravila in smernice v zvezi z načrtovanjem slikovnih zaslonov, ki jih uporablja voznik za funkcije, določene v specifikaciji CR LOC&PAS TSI, da se zagotovi voznikova pravilna uporaba in odziv ob upoštevanju opravil, ki jih mora izvajati voznik, ter človeških dejavnikov.
Zajema naslednje vidike:
Čitljivost in razumljivost prikazanih informacij: splošna pravila v zvezi s postavitvijo informacij na slikovnih zaslonih, vključno z velikostjo znakov in razmikom.
Opredelitev usklajenih barv, piktogramov itd.
Opredelitev usklajenih načel za vmesnik (fizični gumbi ali gumbi na dotik): velikost, piktogrami, odzivni čas, način podajanja povratnih informacij vozniku itd.
General Information
- Status
- Withdrawn
- Publication Date
- 30-Aug-2016
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 256 - Railway applications
- Drafting Committee
- CEN/TC 256/WG 37 - Driver's cabs and windscreens
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 05-Dec-2018
- Completion Date
- 21-Jan-2026
Relations
- Merged Into
EN 16186-3:2016+A1:2018 - Railway applications - Driver's cab - Part 3: Design of displays - Effective Date
- 18-Jan-2023
- Effective Date
- 02-Nov-2016
Frequently Asked Questions
EN 16186-3:2016 is a standard published by the European Committee for Standardization (CEN). Its full title is "Railway applications - Driver's cab - Part 3: Design of displays". This standard covers: This European Standard specifies all necessary design rules and associated assessment criteria as well as guidance concerning the design of information and the corresponding user interfaces of driver’s cabs of EMU, DMU, Railcars, Locomotives and Driving trailers. NOTE 1 This standard applies to rolling stock in the scope of the Directive 2008/57/EC. It considers the tasks the driver has to carry out and human factors. This standard specifies how information is arranged and displayed. It is explicitly applicable to display applications like TRD, ETD, CCD and TDD and may be completed by the CLC/TS 50459 series. This standard is not applicable to legacy ATP systems. If requirements in this standard are in conflict with the ERA DMI document (ERA_ERTMS_015560) the requirements of the ERA DMI document should prevail for the CCD ETCS application. NOTE 2 For resolving any discrepancies (e.g. 5.4.2.3) ERA is expected to harmonize the usage philosophy of the ERA DMI with this standard. All assessments based on the normative requirements of this standard are applicable mainly to - symbols provided by Annex A, - arrangement of screen areas conform with Figure 1 (generic organization of information), - colours, fonts, - audible information. This standard is applicable to the following aspects: - legibility and intelligibility of displayed information: general rules concerning the layout of information on the displays, including character size and spacing; - definition of harmonized colours, symbols, etc.; - definition of harmonized principles for the command interface (by physical or touchscreen buttons): size, symbols, reaction time, way to give feedback to the driver, etc.; - general arrangements (dialogue structures, sequences, layout philosophy, colour philosophy), symbols, audible information, data entry arrangements. NOTE 3 If this standard deals with how information can be given for operation and in degraded situations, it does not define operating rules and degraded situations. This standard does not request any safety requirement related with displayed information. This standard specifies minimum requirements and does not prevent more complex solutions. Requirements describing the functions using the display are out of scope of this standard.
This European Standard specifies all necessary design rules and associated assessment criteria as well as guidance concerning the design of information and the corresponding user interfaces of driver’s cabs of EMU, DMU, Railcars, Locomotives and Driving trailers. NOTE 1 This standard applies to rolling stock in the scope of the Directive 2008/57/EC. It considers the tasks the driver has to carry out and human factors. This standard specifies how information is arranged and displayed. It is explicitly applicable to display applications like TRD, ETD, CCD and TDD and may be completed by the CLC/TS 50459 series. This standard is not applicable to legacy ATP systems. If requirements in this standard are in conflict with the ERA DMI document (ERA_ERTMS_015560) the requirements of the ERA DMI document should prevail for the CCD ETCS application. NOTE 2 For resolving any discrepancies (e.g. 5.4.2.3) ERA is expected to harmonize the usage philosophy of the ERA DMI with this standard. All assessments based on the normative requirements of this standard are applicable mainly to - symbols provided by Annex A, - arrangement of screen areas conform with Figure 1 (generic organization of information), - colours, fonts, - audible information. This standard is applicable to the following aspects: - legibility and intelligibility of displayed information: general rules concerning the layout of information on the displays, including character size and spacing; - definition of harmonized colours, symbols, etc.; - definition of harmonized principles for the command interface (by physical or touchscreen buttons): size, symbols, reaction time, way to give feedback to the driver, etc.; - general arrangements (dialogue structures, sequences, layout philosophy, colour philosophy), symbols, audible information, data entry arrangements. NOTE 3 If this standard deals with how information can be given for operation and in degraded situations, it does not define operating rules and degraded situations. This standard does not request any safety requirement related with displayed information. This standard specifies minimum requirements and does not prevent more complex solutions. Requirements describing the functions using the display are out of scope of this standard.
EN 16186-3:2016 is classified under the following ICS (International Classification for Standards) categories: 45.060.10 - Tractive stock. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16186-3:2016 has the following relationships with other standards: It is inter standard links to EN 16186-3:2016+A1:2018, EN 16186-3:2016/prA1. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 16186-3:2016 is associated with the following European legislation: EU Directives/Regulations: 2008/57/EC; Standardization Mandates: M/334, M/483. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 16186-3:2016 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Führerraum - Teil 3: Gestaltung von FührerraumanzeigenApplications ferroviaires - Cabine de conduite - Partie 3: Conception des affichagesRailway applications - Driver's cab - Part 3: Design of displays45.060.10Tractive stockICS:Ta slovenski standard je istoveten z:EN 16186-3:2016SIST EN 16186-3:2016en,fr,de01-november-2016SIST EN 16186-3:2016SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16186-3
August
t r s x ICS
v wä r x rä s r English Version
Railway applications æ Driver 5s cab æ Part
uã Design of displays Applications ferroviaires æ Cabine de conduite æ Partie
u ã Conception des affichages
Bahnanwendungen æ Führerraum æ Teil
uã Gestaltung von Führerraumanzeigen This European Standard was approved by CEN on
s t June
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x s z xæ uã t r s x ESIST EN 16186-3:2016

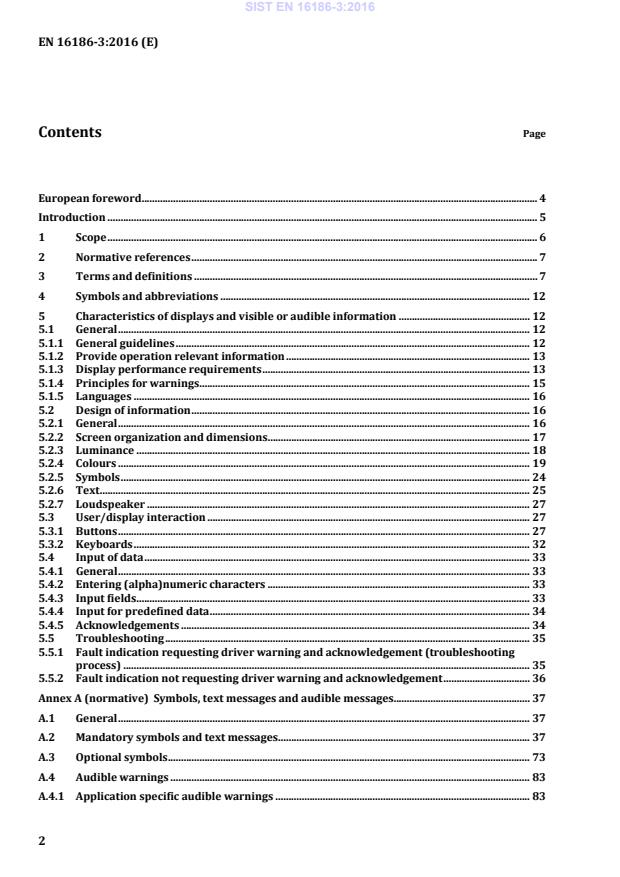

European foreword . 4 Introduction . 5 1 Scope . 6 2 Normative references . 7 3 Terms and definitions . 7 4 Symbols and abbreviations . 12 5 Characteristics of displays and visible or audible information . 12 5.1 General . 12 5.1.1 General guidelines . 12 5.1.2 Provide operation relevant information . 13 5.1.3 Display performance requirements . 13 5.1.4 Principles for warnings . 15 5.1.5 Languages . 16 5.2 Design of information . 16 5.2.1 General . 16 5.2.2 Screen organization and dimensions . 17 5.2.3 Luminance . 18 5.2.4 Colours . 19 5.2.5 Symbols . 24 5.2.6 Text . 25 5.2.7 Loudspeaker . 27 5.3 User/display interaction . 27 5.3.1 Buttons . 27 5.3.2 Keyboards . 32 5.4 Input of data . 33 5.4.1 General . 33 5.4.2 Entering (alpha)numeric characters . 33 5.4.3 Input fields . 33 5.4.4 Input for predefined data . 34 5.4.5 Acknowledgements . 34 5.5 Troubleshooting . 35 5.5.1 Fault indication requesting driver warning and acknowledgement (troubleshooting process) . 35 5.5.2 Fault indication not requesting driver warning and acknowledgement . 36 Annex A (normative)
