EN 15187:2024

SLOVENSKI STANDARD
01-december-2024
Nadomešča:
SIST EN 15187:2007
Pohištvo - Ocenjevanje vpliva izpostavljenosti svetlobi
Möbel - Bestimmung der Lichtbeständigkeit von Oberflächen
Möbel - Bestimmung der Lichtbeständigkeit von Oberflächen
Ameublement - Evaluation de la tenue de la surface à la lumière
Ta slovenski standard je istoveten z: EN 15187:2024
ICS:
97.140 Pohištvo Furniture
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 15187
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2024
EUROPÄISCHE NORM
ICS 97.140 Supersedes EN 15187:2006
English Version
Furniture - Assessment of the effect of light exposure
Ameublement - Evaluation de la tenue de la surface à la Möbel - Bestimmung der Lichtbeständigkeit von
lumière Oberflächen
This European Standard was approved by CEN on 10 June 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15187:2024 E
worldwide for CEN national Members.

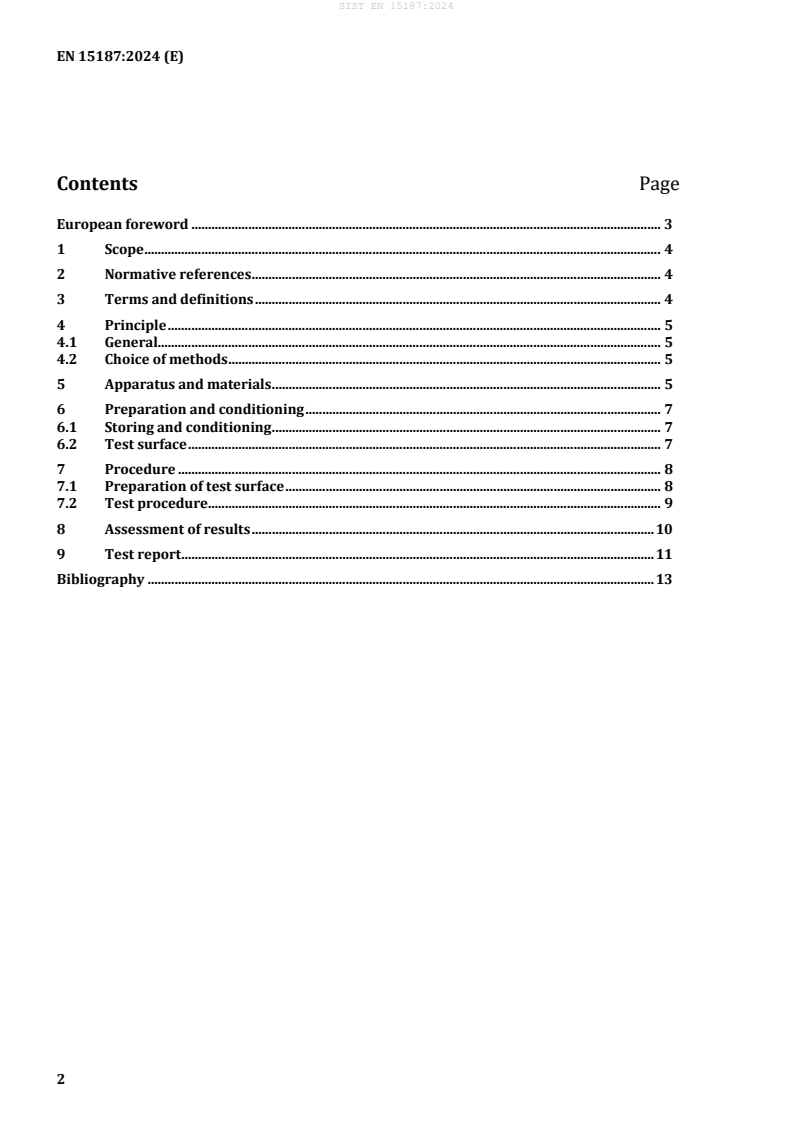

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle . 5
4.1 General. 5
4.2 Choice of methods . 5
5 Apparatus and materials . 5
6 Preparation and conditioning . 7
6.1 Storing and conditioning . 7
6.2 Test surface . 7
7 Procedure . 8
7.1 Preparation of test surface . 8
7.2 Test procedure . 9
8 Assessment of results . 10
9 Test report . 11
Bibliography . 13

European foreword
This document (EN 15187:2024) has been prepared by Technical Committee CEN/TC 207 “Furniture”,
the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2025, and conflicting national standards shall
be withdrawn at the latest by January 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15187:2006.
— revised scope: surfaces that were not affected by light as additional specification for the test;
— normative references updated;
— revised Table 1 for general conditions for the apparatus with humidity control;
— revised Table 2 for general conditions for the apparatus without humidity control;
— added new Table 3 “Correlation between irradiation time and total irradiation amount at different
intensity”
— new sub clauses: “Specimen holders”, “Deionized or distilled water”, “Cleansing solution”, “Cleansing
agent” added to Clause 5;
— revision of 7.3 “Duration”;
— revision of Clause 9 “Test report”;
— document editorially revised in its entirety.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a method for the assessment of the effects of light in indoor conditions, by
exposure to artificial radiation and applies to rigid surfaces of all finished products regardless of material.
It does not apply to finishes on leather and fabrics.
The test is intended to be carried out on a part of the finished furniture, but can be carried out on test
panels of the same material, finished in an identical manner to the finished product, and of a size sufficient
to meet the requirements of the test.
This document describes the most important parameters, such as the colour change when a surface is
exposed and specifies the conditions to be used in the exposure apparatus.
The light resistance of a surface can be assessed by using two apparatus as specified in Clause 4, one as a
reference test method, and the other for in-company testing.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 105-B02:2014, Textiles — Tests for colour fastness — Part B02: Colour fastness to artificial light:
Xenon arc fading lamp test (ISO 105-B02:2014)
EN ISO 4892-1, Plastics — Methods of exposure to laboratory light sources — Part 1: General guidance
(ISO 4892-1)
EN ISO 4892-2:2013 , Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc
lamps — Amendment 1: Classification of daylight filters (ISO 4892-2:2013)
ISO 105-A02, Textiles — Tests for colour fastness — Part A02: Grey scale for assessing change in colour
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
test panel
panel including the test surface (see 3.2)
Note 1 to entry: It can be cut from a finished item of furniture or it can be a separate panel produced in the same
manner as the finished item of furniture.
3.2
test surface
part of the test panel including an exposed section as well as the control sections

As amended by EN ISO 4892-2:2013/A1:2021.
Note 1 to entry: See Figure 1 and Figure 2.
4 Principle
4.1 General
Accelerated exposure to light of furniture surfaces to filtered xenon-arc radiation is carried out in order
to assess the change of contrast and colour. The surface is assessed by comparing the exposed section
with the masked control section or with the separated control section (see Clause 8) from the same test
surface.
4.2 Choice of methods
The apparatus specified in 5.1 shall be used as a reference method in cases where the influence of
humidity cannot be excluded.
The apparatus specified in 5.2 can be used for in-company testing in cases where the influence of
humidity can be excluded.
5 Apparatus and materials
5.1 Apparatus with humidity control
A test device as specified in EN ISO 4892-1 and EN ISO 4892-2:2013 with xenon lamp using window
glass filters according to method B in EN ISO 4892-2:2013 , and test parameters, as specified in Table 1.
Table 1 — General conditions for the apparatus with humidity control
Irradiance
Black-standard Chamber Relative
Broadband Narrowband
temperature temperature humidity
(300 nm to 400 nm) (420 nm)
2 2 a
°C %
W/m W/(m × nm) °C
50 ± 2 1,10 ± 0,02 55 ± 3 38 ± 3 50 ± 10
a
A black-standard sensor according to EN ISO 4892-1 shall be used (with insulation on the backside of the
black metal sheet).
5.2 Apparatus without humidity control
A test device as specified in EN ISO 4892-1 and EN ISO 4892-2:2013 with xenon lamp using window
glass filters according to method B in EN ISO 4892-2:2013 , and test parameters as specified in Table 2.
Table 2 — General conditions for the apparatus without humidity control
Irradiance
Black-
Chamber Relative
Broadband Wideband
standard
Narrowband
temperature humidity
(300 nm to (300 nm to
temperature
(420 nm)
400 nm) 800 nm)
2 2 2 a b
° C
W/m W/(m × nm) W/m ° C %
50 ± 2 1,10 ± 0,02 550 ± 55 55 ± 3 Not controlled Not controlled
a
A black-standard sensor according to EN ISO 4892-1 shall be used (with insulation on the backside of the
black metal sheet).
Irradiance
Black-
Chamber Relative
Broadband Wideband
standard
Narrowband
temperature humidity
(300 nm to (300 nm to
temperature
(420 nm)
400 nm) 800 nm)
2 2 2 a b
° C
W/m W/(m × nm) W/m ° C %
b
For instruments without chamber air temperature or relative humidity control these parameter are allowed
to find their own level.
5.3 Specimen holders
Specimen holders can be in the form of an open frame or may provide the specimen with a solid backing
, 4.6. The backing used can affect the test results and shall be reported
as specified in EN ISO 4892-2:2013
in the test report.
5.4 Conditioning chamber
A chamber with a standard atmosphere of (23 ± 2) °C, relative humidity (50 ± 5) %.
5.5 Cleaning cloth
White soft absorbent cloth.
5.6 Deionized or distilled water
5.7 Cleansing solution
Solution containing 15 ml/l of the cleansing agent (5.8) in water (5.6). The solution shall be discarded
after one day.
5.8 Cleansing agent
Cleansing agent of the following composition:
a) 12,5 % (mass fraction) of a primary or polymeric sodium (C to C ) alkylaryl sulphonate
10 14
[CAS 25155-30-0];
b) 12,5 % (mass fraction) of a polyethoxylated primary or secondary (C to C ) alcohol derivative with
8 16
5 to 15 ethoxyl groups with a cloud point of 25 °C to 75 °C in 1 % (m/m) aqueous solution (the
determination of the cloud point is specified in ISO 1065:1991) [CAS 9005-67-8];
c) 5,0 % (mass fraction) of ethanol (96 % aqueous solution);
d) 70 % (mass fraction) water (5.6).
The cleansing agent shall be stored in a glass bottle in a cool dark place and shall be used within one year
of the day of preparation.
5.9 Aluminium foil or stainless steel
Aluminium foil with a thickness of at least 0,03 mm or stainless steel (both up to 1 mm thickness).
5.10 Blue wool scale
Blue wool scale according to EN ISO 105-B02:2014, 4.3.
Fixed on a card board in an opened frame sample holder.
6 Preparation and conditioning
6.1 Storing and conditioning
The test shall be carried out on unused surfaces or surfaces that were not affected by light.
During storing and conditioning the test panel shall be kept without direct exposure to light.
Conditioning of test surface shall begin at least one week before testing and shall be carried out in air at
a temperature of (23 ± 2) °C and relative humidity of (50 ± 5) %.
The conditioning time shall be stated in the test report.
6.2 Test surface
One test surface shall be prepared.
The test surface shall be substantially flat.
The test surfa
...
